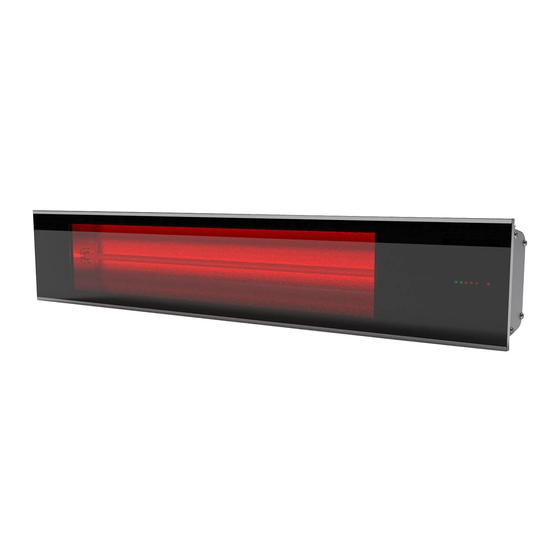

Dimplex DIR30A10GR Installation Manual

Heater Installation
HOW TO OPERATE THE HEATER:
What's included with your Dimplex DIR Series Heater
• IR Heater
• Operating and Installation Instructions
• One small box containing 2 sets of brackets and mounting hardware
• One remote controller
Figure 1
Schott Nextrema :
®
glass panel
MODEL NAME DIR15A10GR
Voltage
120V 60Hz
Rated power
1500
(Watts)
Wall-mounted
Installation
Mounting height
Ceiling-mounted
Minimum 2.4 M (7.9 ft.)
Electric protection
I
class
Outdoor Rated Yes
Unit dimensions
902 x 170 x 128
LxWxH (mm / in)
35-1/2 x 6-3/4 x 5
(without bracket)
6
Brackets for wall or ceiling mounting
DIR18A10GR DIR22A10GR
240V 60Hz 240V 60Hz
1800 2200
Wall-mounted
Wall-mounted
Ceiling-mounted
2.4 M (7.9 ft.) 2.4 M (7.9 ft.)
I I
Yes Yes
902 x 170 x 128 902 x 170 x 128
35-1/2 x 6-3/4 x 5 35-1/2 x 6-3/4 x 5
Terminal box
Remote control
Power/On
Low Med High
1hr 2hr
Timer
on Standby
DIR30A10GR
240V 60Hz
3000
Wall-mounted
2.4 M (7.9 ft.)
I
Yes
1286 x 170 x 128
50-5/8 x 6-3/4 x 5
