  • Page 1 BioSmart 5M-O/5M-E Installation Guide...

  • Page 2: Table Of Contents

    General installation notes ........................8 Mounting on wall ..........................9 Power supply connection ......................... 10 Network connection ......................... 11 Locks connection ..........................11 Exit buttons and door sensors connection ..................12 Wiegand output connection......................13 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 3: Safety Instructions

    Additional requirements: Note Use a clean, dry cloth to remove any dirt or dust from the unit. *IEC 60204-1: Safety of machinery – Electrical equipment of machines. (Part 1: General requirements) BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 4: Overview

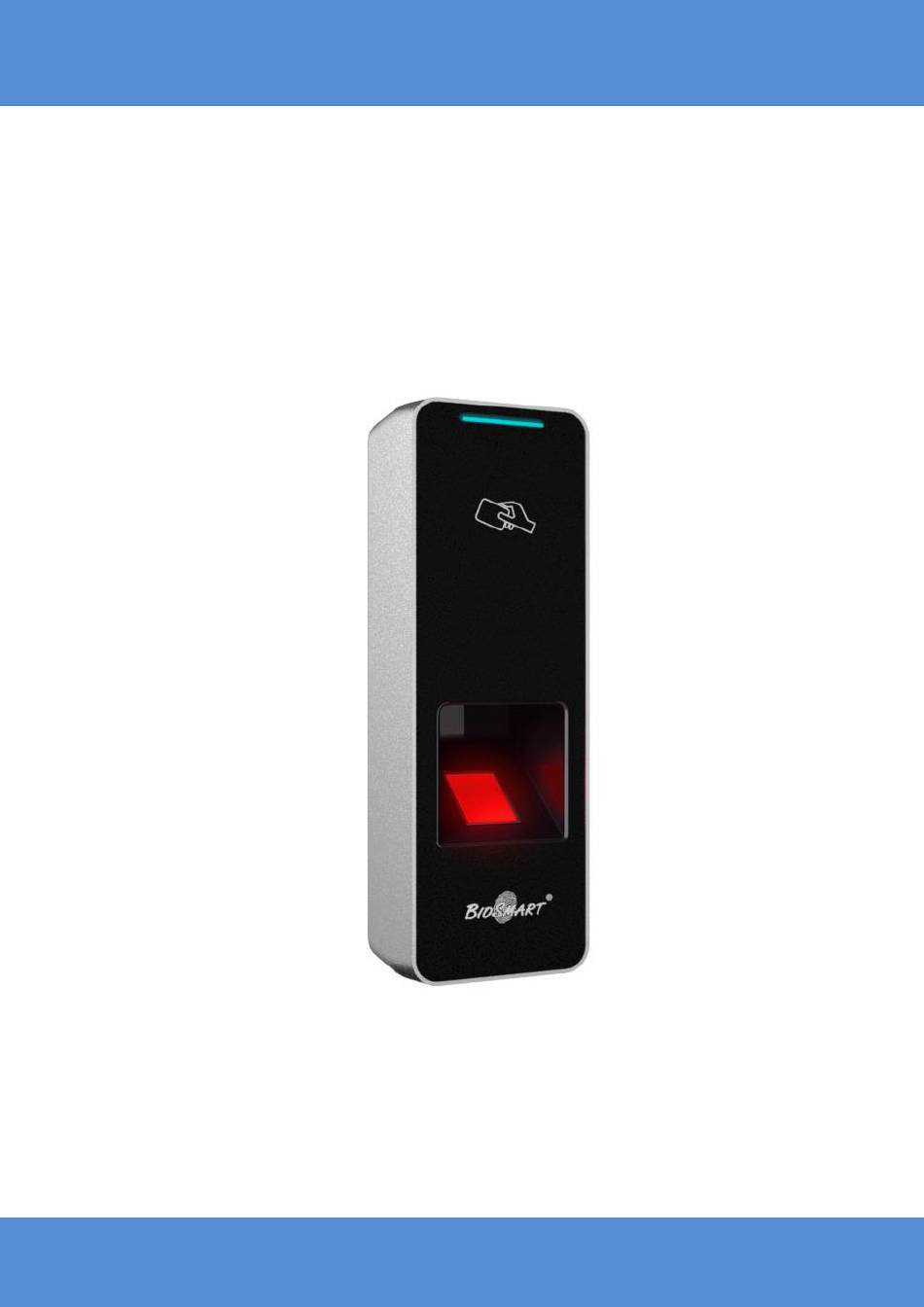

    1. Overview BioSmart 5M-O Controller is designed for identification of users by fingerprints and RFID cards. It can also control a lock or a turnstile (from one side only). BioSmart 5M-E is a modification of BioSmart 5M-O designed to operate at the below zero temperatures (in Celsius).
  • Page 5 Dimensions (H x W x D) 160 x 50 x 43 mm 160 x 50 x 43 mm Weight 260 g 260 g Warranty 5 years 5 years Note: * - Each user can be provided with single card code BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 6: Part Names And Functions

    Green – identification successful Red – identification failed RFID card reader RFID card identification Fingerprint scanner Fingerprint identification Package contents Item Number, pcs BioSmart 5M Controller Mounting kit (two 6х35 dowels, two 3.5х38 self-tapping screws) BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 7: Opening The Case

    Opening the case 1) Remove the back cover retaining screw; 2) Detach the case from the back cover to access the circuit board. BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 8: Circuit Board

    Discrete input «+» Enter/exit buttons, door sensors Discrete input Enter/exit buttons, door sensors Wiegand output DATA1 External controller wiegand output DATA1 Wiegand output DATA0 External controller wiegand output DATA0 Ethernet Ethernet connection Local network connection BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 9: Installation

     Carefully check for mechanical damage on the surface of the controller circuit board and case;  In order to avoid short circuits, the protected ends of cables used to connect the controller must not exceed 5 mm. BioSmart 5M-E should be protected from rain and water. Caution BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 10: Mounting On Wall

    4. Connect power supply, lock and buttons, if needed, according to p.2.4-2.8. Put cables through cable input. 5. In order to protect controller from electrostatic discharge, connect an annular crimp in a top left corner of PCB with a grounding device (see figure below). BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 11: Power Supply Connection

    Use a DC 12 V power supply adaptor with a minimum of 0,500 mA, which has obtained the approval of IEC/EN 60950-1;  See recommended cable type and maximum length of the cable in Cable types table. BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 12: Network Connection

     See recommended cable type in Cable types table;  Install a diode as it shown on figure, to protect controller relay from reverse current. Use 1N4007 diode (1000V,1A) or similar;  Use separate power supplies for lock and controller; BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 13: Exit Buttons And Door Sensors Connection

    Turn on “Relay inversion” in BioSmart Studio v5, if connecting an electromagnetic lock. Caution Exit buttons and door sensors connection  See recommended cable type in Cable types table; BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...

  • Page 14: Wiegand Output Connection

    Wiegand output connection  See recommended cable type in Cable types table; BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en...
