- Page 1 BioSmart PV-WM Installation Guide...
-
Page 2: Table Of Contents
Circuit board LEDs and jumpers ......................5 Connector names and description ..................... 5 Installation ..............................6 Cable types ............................6 General installation notes ........................6 Mounting on wall ..........................6 Power supply connection ........................7 UniPass connection ..........................8 PV-WM Installation Guide v1.2|10.2018|en... -
Page 3: Safety Instructions
Additional requirements: Note Use a clean, dry cloth to remove any dirt or dust from the unit. *IEC 60204-1: Safety of machinery – Electrical equipment of machines. (Part 1: General requirements) PV-WM Installation Guide v1.2|10.2018|en... -
Page 4: Overview

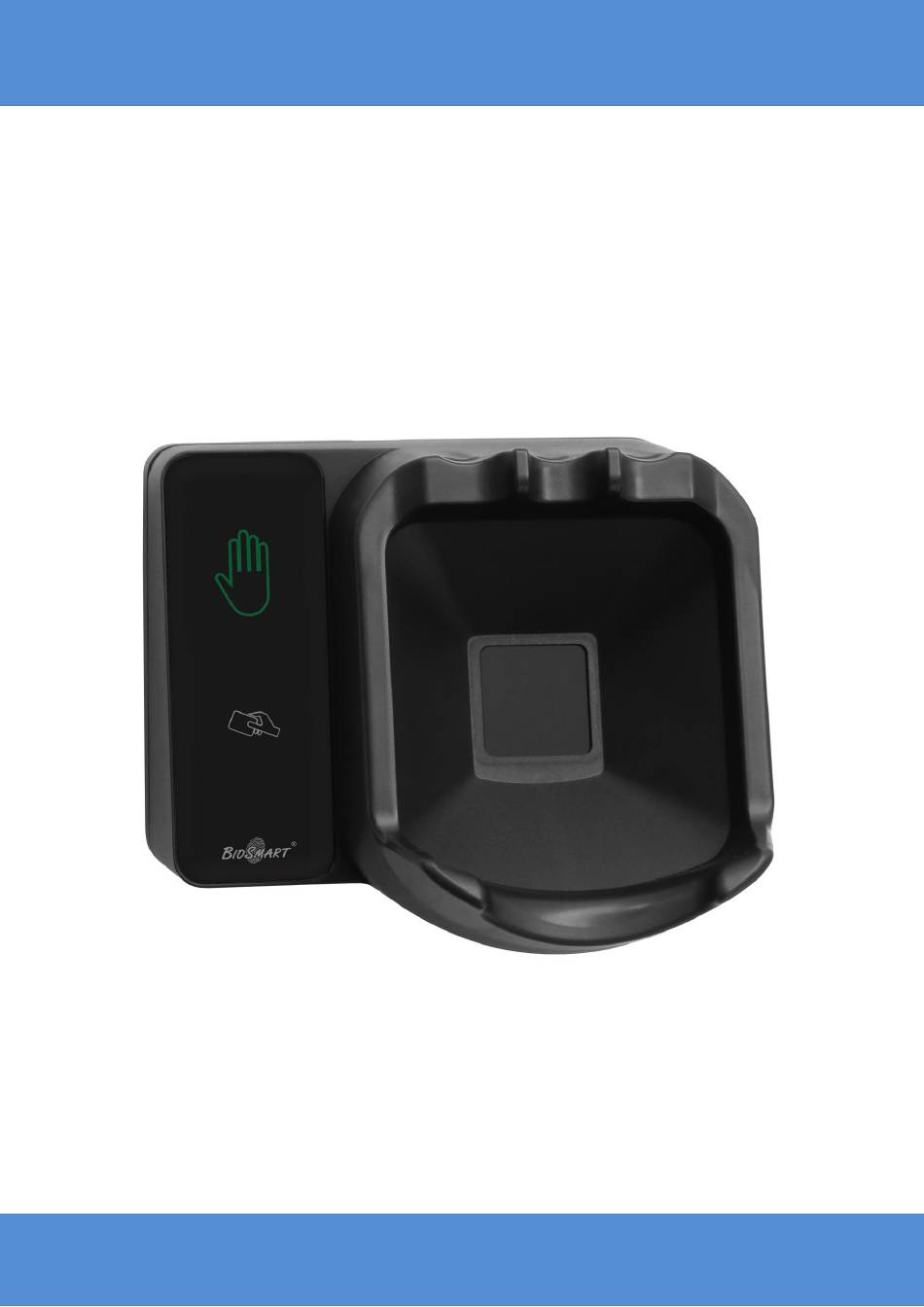

1. Overview The BioSmart PV-WM Reader is a wall-mounted device, designed to capture a palm-vein template or RFID card code and send it to BioSmart UniPass controller. Reader is not suited for stand-alone application. Specifications Scanner type Infrared Scanning range... -
Page 5: Part Names And Functions
1) Remove two mounting screws on bottom and detach the steel plate; 2) Remove four mounting screws on back cover; 2) Detach the cover from the front part of the case to access the circuit board. PV-WM Installation Guide v1.2|10.2018|en... -
Page 6: Circuit Board
IP settings reset BOOT Jumper Boot mode Connector names and description № Name Description Used for Power supply -ground Power supply +12V +12VDC Power supply Power supply Ethernet Ethernet interface connection UniPass controller connection, PoE supply PV-WM Installation Guide v1.2|10.2018|en... -
Page 7: Installation
4. Put cables through back cover cable input. 5. Attach the cover to reader and fix it with four mounting screws. 6. Connect cables according to p.2.4-2.5. 7. Attach reader to the plate and fix the retaining screws. PV-WM Installation Guide v1.2|10.2018|en... -
Page 8: Power Supply Connection
Use a DC 12 V power supply adaptor with a minimum of 1,000 mA, which has obtained the approval of IEC/EN 60950-1; See recommended cable type and maximum length of the cable in Cable types table; Power supply can also be provided via PoE from UniPass (see 2.5); PV-WM Installation Guide v1.2|10.2018|en... -
Page 9: Unipass Connection
UniPass Ethernet connection ports are equipped with PoE sources; See recommended cable type in Cable types table; The order of connections in the cable’s modular connector must correspond to the TIA/EIA-568- B standard. PV-WM Installation Guide v1.2|10.2018|en... - Page 10 Support support@biosmart-tech.com +420 246 097 126 Skype: BioSmart TechSupport +420 246 097 126 Konevova 2660/141, 130 00 Prague, Czech Republic www.biosmart-tech.com sale@biosmart-tech.com...
