Fisher Engineering
50 Gordon Drive, Rockland, Maine 04841‑2139 • www.fisherplows.com

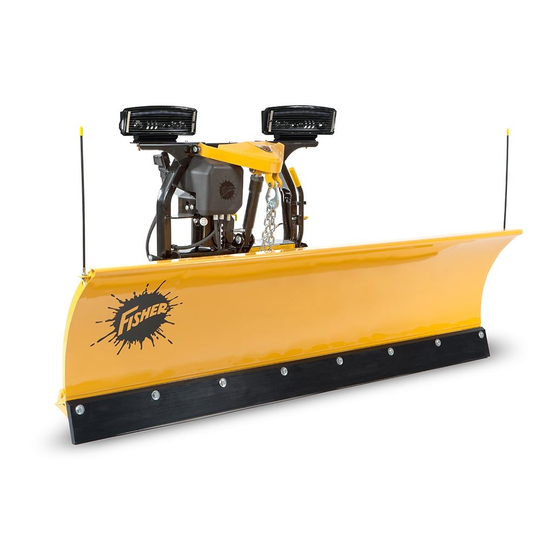

HS Compact Plow
Blade and Off‑Truck Kit
Installation Instructions
CAUTION
Read this document before installing the
snowplow.
CAUTION
See your FISHER
outlet/website for specific
®
vehicle application recommendations before
installation. The eMatch selection system has
specific vehicle and snowplow requirements.
A DIVISION OF FISHER, LLC
85280, 85285
85240, 85240‑3
July 15, 2020
Lit. No. 85309, Rev. 03
