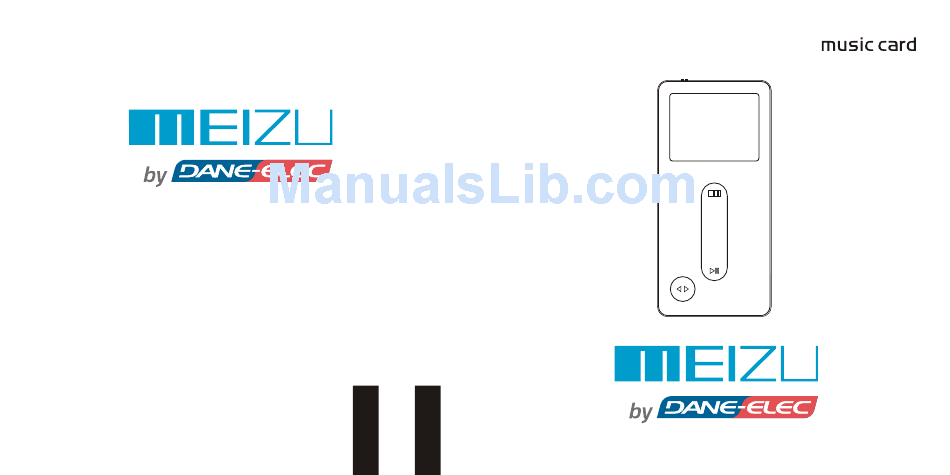

- Page 1 User's Manual Portable Media Player Portable Media Player...
- Page 2 The DaneDigital home page provides the overview of company and products, other related information, and answers to common questions. Firmware and software updates are also available as well as the most recent information about your Meizu by Dane-Elec product. www.danedigital.com Thank you for purchasing the product.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 3. Quick Start 1. Getting Started Important Cautions Using Buttons / Menu Controls 25-27 Copyright Notice Using Browser / Listening to Music 28-29 Product Features Update the Music Library / Sorting the Music Library 30-31 Package Contents / Parts and Names 10-11... -
Page 4: Important Cautions
Table of Contents Important Cautions Turn On / Auto Power Off To power on the player, make sure it has enough power, press the Power ON/OFF button. Click it again to start play. When there is no button operation for about 3 minutes while the Voice Recorder player is stopped, it is automatically turned off. -
Page 5: Copyright Notice
Product Features Copyright Notice General Unique and Compact Design with High Portability Copyrights/Trademarks Super Slim Body, Only 7mm Thick. TFT-LCD1.5 Inch 176*132 (RGB) This product is the registered trademark of Meizu Technology Co., Ltd. Graphic and Dynamic GUI; Humanized Sliding-Touch Keypads Meizu Technology Co., Ltd, has the exclusive copyright for this User Manual. -
Page 6: Package Contents / Parts And Names
Package Contents Parts and Names 1. Top HOLD 2. Front Side User's Manual Music Card Main Body LCD Window MENU Sliding-touch Keypad ENTER Tapping Earphones USB Cable Installation CD POWER/PLAY/STOP PREVIOUS/Switching Note: Design and specifications are subject to change without notice. /NEXT Strap 3. -
Page 7: Protection Film On The Player
Protection Film on the Player Touch Keypad Protection Film on the Front Panel Touch Keypad Touch keypad is an important part of the player, including sliding touch control and key The surface of player is easy to be contacted with other objects during use. To protect operations, which used for controlling operations of all kinds of functions of the player. -
Page 8: Lcd Display
LCD Display LCD Display 1. Play Music 2. Video Playback LCD Display HOLD Repeat Playback Remaining Battery Play Status Power Track Number Radom Playback Song Total Song info or lyrics Playback Progress Video Name /Status Bar Play Status Playback Progress Remaining Elapsed Time /Status Bar... -
Page 9: Connecting Music Card
LCD Display Connecting Music Card Connecting Music Card 5. MIC Record Connecting to a Computer HOLD Connect the small end to player, large end to PC. Click Remaining Battery Record Status Power Channel File Content USB Cable Record File Long Click * Large End USB port on the player RecordTime... -
Page 10: Using For The First Time
Connecting Music Card 2. During Power On Connect it to the computer using the USB cable supplied in the package during the player powered on. It will charge its built-in battery and appears as the figure. In the normal Windows environment, as soon as the cable or simple USB jack is connected, the message "Searching for new device"... -
Page 11: Installation Cd
Using for the First Time Installation CD Using for the First Time System Requirement Loading the Battery Using for the First Time Pentium 133MHz or Higher Handling 32MB Main Memory or Higher 40MB Hard Disk Space or More If you grab the player as picture, it is CD-ROM Drive easier to handle them. -
Page 12: Downloading From The Pc
Downloading from the PC Downloading from the PC Music files can be transferred to the player using the Downloading from the PC following steps. It appears on your PC as shown in the Select [Edit] - [Paste]. Access from a CD or download music, video or picture files from internet and transfer to figure as follows(while finish formatting). -
Page 13: Saving Files & Disconnecting To Your Pc
Saving Files & Disconnecting to Your PC Using Buttons Saving Files and Disconnecting to your PC 1. Power On ˇ¤ C o p y t h e F i l e s i n t h e P l a y e r i n t o y o u r P C Press the Power ON/OFF 1. -
Page 14: Using Buttons / Menu Controls
Using Buttons Menu Controls Menu Controls 4. Hold 5. To adjust the volume in the music operation menu, sliding your finger on the touch keypad. Click Click To increase volume To decrease volume Unlock Locked By turning Hold ON, all the keys on the player will not function. It is irrelevant while listening to music and video. -
Page 15: Using Browser / Listening To Music
Listening to Music Using Browser Listening to Music Using Browser Click Click Click the Menu key briefly Sliding up and down on the touch keypad Click Click Sliding Click Tap on the center keypad briefly Click the Menu key briefly Open Browser You can conveniently navigate through your music files and listen to them. -
Page 16: Update The Music Library / Sorting The Music Library
Sorting the Music Library Update the Music Library Sorting the Music Library Update the Music Library Selecting Modes Tap on the center keypad briefly Sliding up and down on Tap on the center keypad briefly Tap on the center keypad briefly the touch keypad All Songs To list all the songs on the player. -
Page 17: Playback Mode / Sound Effect
Sound Effect Playback Mode Sound Effect Playback Mode Sliding up and down on Tap on the center keypad briefly Tap on the center keypad briefly Sliding up and down on the touch keypad the touch keypad Tap on the center keypad briefly Tap on the center keypad briefly Random playback This is the feature to set the Sound Effect. -
Page 18: Spatializer Sound Effect / Equalizer
Spatializer Sound Effect Equalizer Spatializer Sound Effect Equalizer Sliding up and down on Tap on the center keypad briefly Tap on the center keypad briefly Sliding up and down on the touch keypad the touch keypad Click Tap on the center keypad briefly Sliding up and down on Click the button briefly To select Spatializer sound effect... -
Page 19: Volume Restriction/ Displaying Lyrics
Displaying Lyric Volume Restriction Volume Restriction Synchronized song Lyrics Displaying Lyric 1. Download the lyrics from the internet to your PC. The lyrics file is the format of .Irc. 2. Connect the player and your PC via USB cable. 3. Copy and drag the music audio lyric files on your player. (The lyrics file and music file must be stored in the same folder, their filenames must also be the same.) For example, for song named my angel.wma, the matching lyrics file will be my angel.lrc. -
Page 20: Photo Library / Slideshow Settings
Slideshow Settings Photo Library Photo Library Slideshow Settings Tap on the center keypad briefly Tap on the center keypad briefly Tap on the center keypad briefly Tap on the center keypad briefly Sliding up and down on Tap on the center Tap on the center keypad briefly the touch keypad keypad briefly... -
Page 21: Converting Video Files
Converting Video Files Converting Video Files Converting Video Files 2. Using Video Converter The player supports .avi format. When the installation finishes, Start -> Programs -> Video Converter -> Video Converter However, as the resolution and code vary, some .avi will not be properly displayed on the is registered. - Page 22 Converting Video Files Converting Video Files Click [Styles[, you can set the styles, Click Output [Browse] and specify the It appears a Pop-up window, click OK It will take you some time to convert click [OK] and apply it. path and file name. and save it.
-
Page 23: Play Video
Play Video Play Video Tap on the center keypad briefly Tap on the center keypad briefly This page was intentionnaly left blank Tap on the center keypad briefly 1. Function up and down to select the video to play. 2. Tap on the center keypad to start playback. 3. - Page 24 This page was intentionnaly left blank This page was intentionnaly left blank...
- Page 25 This page was intentionnaly left blank This page was intentionnaly left blank...
- Page 26 This page was intentionnaly left blank This page was intentionnaly left blank...
-
Page 27: Voice Recorder
Voice Recorder MIC Recording Tap on the center keypad briefly This page was intentionnaly left blank Click Tap on the center keypad briefly 1. Select Record in the main menu. Click the key and enter. 2. Select Start Voice Record option and tap on the keypad to apply it. 3. -
Page 28: Play Recorded Files
E-book Play Recorded Files Play Recorded Files View E-book (Text file: .txt) SO L GH RQ the tRXFK Tap on the center keypad briefly keypad up and down. Tap on the center keypad briefly Tap on the center keypad briefly Click Tap on the center keypad briefly 1. -
Page 29: Detailed Features By Menu
Detailed Features by Menu Detailed Features by Menu Settings 3. Main Menu 1. About This function is to list the related items in Main Menu when they're set as Open status. Select Settings, Click the center keypad. Slide up and down on the keypad and select Main Menu, click it. - Page 30 Detailed Features by Menu Detailed Features by Menu C. Background Blend 4.Display A. Backlight Timer This is the feature to adjust the blend of background photo. 1.˛ Ą § 1.˛ Ą § Ĺ ¶ Î Ĺ ¶ Î Select Background Blend and click the center keypad. Using your finger by sliding on the keypad, select from 0 to 20 and apply the value.
- Page 31 Detailed Features by Menu Detailed Features by Menu F. Use Default Background This is the feature to set the date and time. Initialize the background to the original factory settings. Select Set Date and Time option, and click the center keypad. Select Use Default Background and click the center Using your finger by sliding on the keypad, select to set the related keypad, it pops up the window.
- Page 32 Detailed Features by Menu Detailed Features by Menu 7. Language (Menu Language) • MSC Mode Select the MSC mode, connect Music Card to your PC. It will appear "Removable Disk" This is the feature to change the menu language. on your PC. Double click it, you may use the player to copy, delete and etc. After You can choose: English, French, Spanish, Italian, Dutch, operation, click and run "Savely Remove Hardware", then disconnect it.
-
Page 33: Guide To Firmware Upgrade
Detailed Features by Menu Upgrading Product Firmware Use WMP to play songs, it will add the songs to Library automatically. You may also drag the media files on your PC to Library. It will automatically classify the songs according to the Artists, Albums after adding. The latest software 1. - Page 34 Upgrading Product Firmware Upgrading Product Firmware Downloading and Installing Software Then it displays M3.EBN, resource.bin When there is a new firmware released, you can download the latest firmware from Decompress the downloaded files, in the Removable Disk. www.danedigital.com website free of charge to enhance the features and eliminate the bugs. drag and drop them onto the In order to upgrade the firmware of the player, you need the program and the related drive, "RemovableDisk"...
-
Page 35: Format
Format Format Formatting the Flash Memory Double click [My Computer] and select the [Removable Disk]. The flash Memory of the player can be formatted. Please use Windows format tools to format the player, and restore read & write operations of file systems. If the flash Memory is formatted, all data stored within is lost. -
Page 36: Handling Instructions
Handling Instructions Format Do not subject the player to severe impact or jarring. It pops up the warning window, select The formatting is start running. Vibration experienced during walking or exercising will not affect the player. However, [OK] to continue. dropping a heavy object on the player may result in damage or sound distortion. -
Page 37: Precautions For Using The Product
Precautions for Using the Product Trouble Shooting Trouble Shooting Do not keep it in high Do not drop player or apply Keep away from places of temperatures or in a damp impact. Shock is the major dust and cigarette ash. place for a long time or cause of breakdown. -
Page 38: Product Specifications
Memo Product Specifications Product Specifications Dimensions 81mmx39mmx7mm (HxWxT) Weight 42g (Including Battery) TFT LCD 1.5" 176x132 RGB, 100 levels brightness adjustable PC Interface High speed USB2.0 Flash Memory Built-in basic Flash Memory (2GB/4GB/8GB) Power Supply Built-in 3.7V, 460mAh Rechargeable Li-ion battery FLAC, WMA Lossless 5~192kbps Quality0 ~ Quality10... - Page 39 Memo Memo...
- Page 40 Memo (Mz-02)
