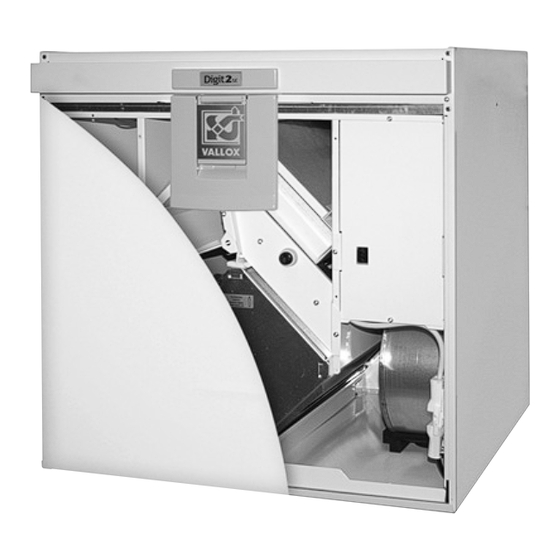

DIGIT
ELECTRONIC CONTROLLER
WITH LCD DISPLAY
Models:
DIGIT2 SE R
DIGIT2 SE L
DIGIT2 SE VKL R
DIGIT2 SE VKL L
DIGIT2 SE MLV VKL R
DIGIT2 SE MLV MLV L
DIGIT2 SE MLV electric R
DIGIT2 SE MLV electric L
• Supply and extract air ventilation
with heat recovery
• Silent operation
• Energy-efficient unit; high-efficiency
cross-flow cell
• Electronic DIGIT SED control or
wireless remote monitoring (option)
• Week clock control
• Humidity control (option)
• Carbon dioxide control (option)
• Maintenance reminder
• Summer/winter automation
• Fireplace/booster switch function
• Good filtering
• Fixed air flow measuring outlets
• MLV model especially designed for
use with ground heat systems
• Easy and quick installation
• Silencer element (option)
© VALLOX • We reserve the right to make changes without prior notification.
Vallox
Digit
SED
Electrical connection
Class of protection
Fans
Heat recovery
VALLOX DIGIT2 SE
VALLOX DIGIT2 SE VKL
VALLOX DIGIT2 SE MLV VKL
VALLOX DIGIT2 SE MLV, electric
Filters
Weight
Ventilation
adjustment options
Options
2
SE
230 V, 50 Hz
IP34
Extract air 210 kW 0.91 A (AC)
120 dm
Supply air 210 W, 0.91 A (AC)
110 dm
Cross-flow cell, > 60%
2.7 kW, 12.0 A
Preheating unit
Electric 1200 W, 5.2 A
Post-heating unit
Electric 1200 W, 5.2 A
1.55 kW, 6.7 A
Preheating unit
Electric 1200 W, 5.2 A
Post-heating unit
VKL water radiator
0.35 kW, 1.5 A
Preheating unit
MLV liquid radiator
Post-heating unit
VKL water radiator
1,55 kW, 6,7 A
Preheating unit
MLV liquid radiator
Post-heating unit
Electric 1200 W, 5.2 A
Supply air
G3 and F7
Extract air
G3
71 kg
Control panel control
Week-clock control
CO
2
Wireless remote control (option)
CO
2
%RH sensor
Wireless remote control
Filter guard (supply and/or extract air)
LON converter
Ceiling mounting
Attic floor penetration
Silencer element
VKL expansion tank + stand
VKL heat exchanger pipe
• 1.09.391E
• 11.2.2011
• Code 3550 SE
© VALLOX
3
/s (120 Pa)
3
/s (100 Pa)
and %RH control (option)
sensor
