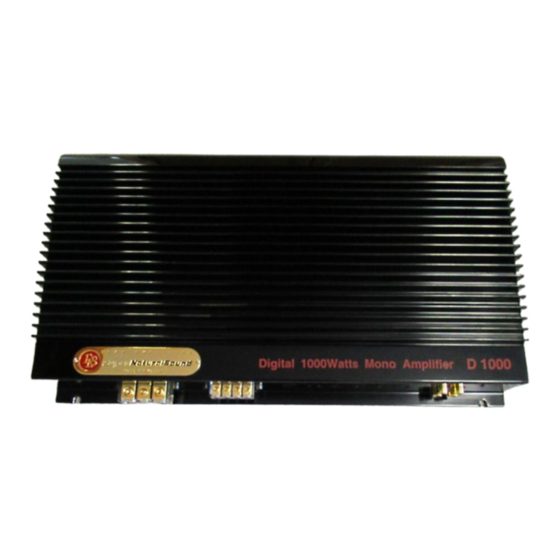

- Page 1 OWNERS MANUAL CAR AUDIO AMPLIFIER D 1000 Digital class ”D” mono amplifier for subwoofer use 1000 watts output power into 1 ohm load DLS Svenska AB Box 13029 SE-402 51 Göteborg Sweden Phone +46 31 84 00 60 Fax +46 31 84 40 21 E-mail: info@dls.se...
-
Page 2: Table Of Contents
Congratulations, you have just purchased the finest Car Audio amplifier that today´s technology can offer. DLS offers a series of high quality car audio products for real music lovers, and we are sure that you will enjoy a high class car sound for many years. -
Page 3: General Product Information
When connecting two or more amplifiers times it is necessary to mount an extra battery. use some of the DLS Fuse blocks with built in fuses The speaker cable connections requires a 2 mm hexa- to split the power to each amplifier. The short cable... -
Page 4: Signal Cables
All speakers in a car audio system should be connected in phase (the same polarity). All speaker Use high quality interconnects like the DLS SL5 PRO cones must move in the same direction. Out of phase or similar with an effective shielding that prevents speakers will cause a lack of bass, and a poor stereo interference from the engine or alternator. -
Page 5: Level Setting
SPEAKER CONNECTION, FILTER SETTINGS SPEAKER CONNECTION EXAMPLES 2.6 FINAL SYSTEM SETUP Before connecting the amplifier to the battey, recheck TWO 4 OHM SPEAKERS IN PARALLEL. all connections. When you connect the main fuse you will see a little spark, this is normal. But if the fuse blows at this moment, something is wrong. -
Page 6: Fault Finding Guide
Use a 4 mm hexagon key for the power terminals. return, re-route original cable away from source of interference. If noise remains regardless of cable position, try to use so called Quasi-balanced signal cables. DLS PRO-cables are Quasi-balanced. - 5 -... -
Page 7: Connection Diagram
CONNECTION DIAGRAM D 1000 7. Connection diagram D 1000 This amplifier is constructed for use as a subwoofer amplifier. All features on the amplifier is made for this purpose. It is possible to connect speakers in many various ways as long as the impedance load is not lower than 1 ohm. -
Page 8: For Your Own Notes
FOR YOUR OWN NOTES Notes about the product: Model no:_________________________________ Serial number:_______________________________ Retailer:______________________________________________________________________________ Date of purchase: _________________________ Date of installation: ___________________________ Make your own installation notes about connections, crossover setup or just draw your own system schematic. - 7 -...
