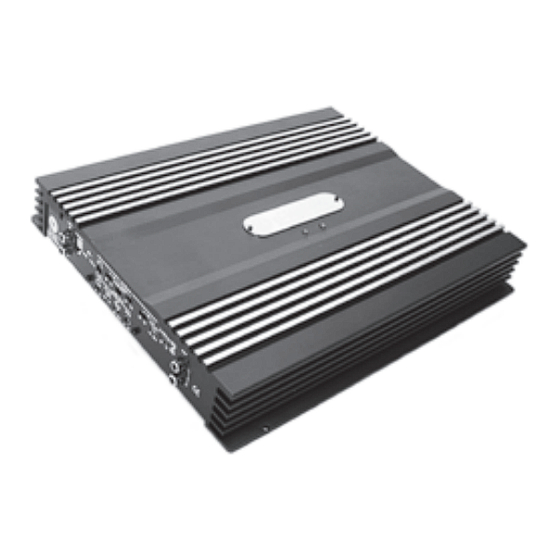

DLS CA30ENG How To Install And Operate

How to install and operate the DLS CA30,
three channel amplifier.
Art.no 10-30290
Welcome!
This owners manual is written in easy english and
uses a lot of drawings to simply the installation and
use of the above amplifiers.
Your DLS amplifiers must be installed correctly in
order to work well. This manual will show you how
to install the amplifier like a pro. Please read the
entire manual before beginning the installation.
Install the amplifier yourself if you feel confident with
our instructions and if you have the proper tools.
However if you feel unsure, turn over the installa-
tion job to someone better suited to it.
Warranty Service
This amplifier is covered by warranty, depending
on the conditions in the country where it is sold. If
the amplifier is returned for service, please include
the original dated receipt with the product.
Technical Assistance
For technical assistance ask the shop where the
product was sold or the distributor in your very coun-
try.
You can always phone the DLS Helpdesk in Sweden
+ 46 31 84 00 60 or send an e-mail to info@dls.se.
Information can also be found on our WEB-site
www.dls.se
Contents
Specifications................................
Features...................................
Installation................................
Trouble-shooting.......................... 2
Tools and materials needed..........
Amplifier installation kit................
Routing Wires............................
Wiring
Power and Outputs.....................
Inputs and controls.....................
Input level control..........................
Crossovers..................................
Phase control.............................
Speaker wiring:
Front system..................................
Subwoofers...............................
Testing...........................................
Professional tips..........................

Specifications

DLS CLASSIC
Number of channels
Power output in 4 ohm (0,1% THD)
Max output in 2 ohm (0,1% THD)
Power output sub channel, 4 ohm
Max output sub channel, 2 ohm
All above output power ratings at 13,8 Volt
Signal to noise ratio, A-weighted
Damping factor
Frequency response
Input impedance, low level
Input impedance, high level
Input sensitivity
Phase control sub channel
Filter highpass (ch A & B)
Filters ch C (mono sub channel):
Filter subsonic, 18 dB slope
Filter lowpass 12 db slope
* can be switched in/out
Power consumption, idle
Fuse
Dimensions (mm)
Dimensions (inch)
Weight
We follow a policy of continuous advancement in
development.
For this reason all or part of specifications & designs
may be changed without prior notice.
1
2
2
3
3
3
4
5
5
5
5
6
6
6
7
CA 30
3
2 x 50 W
2 x 80 W
1 x 170 W
1 x 280 W
>100 dB
>100
10 Hz - 30 kHz
>10 kohm
100 ohms
0,25 - 5V
0-180 degrees
continuous
50-150 Hz
25 Hz fixed*
50-120 Hz
1,0 A
2 x 30A
51,5x350x290
2,03x13,8x11,4
4,6 kg / 10 lb
