Visonic SR-730 PG2 Installation Instructions

SR-730 PG2
Fully Wireless PowerG Outdoor Siren
1. INTRODUCTION
The SR-730 PG2 is a fully wireless outdoor siren, designed for
installation in areas in which wiring action is difficult or
impossible.
The siren is compatible with PowerMaster-10 control panels.
Features
• Siren and strobe light activation: When an identified event
message is received from the compatible PowerMaster-10
alarm system, the siren activates its sounder & strobe light.
Notes:
The sounder is activated for a predefined "Bell Time" (refer to
PowerMaster-10 Installer Guide, par. 4.3), according to local
authorities requirements, or until the system is disarmed,
whichever occurs first.
The strobe light operates as described in the PowerMaster-10
Installer Guide, par. 4.3.
• Tamper indication: In case of tamper while the system is
armed, the siren transmits the message to the alarm system
and then the alarm system determines whether the siren
should be activated or not. If the siren does not receive an
acknowledge message from the alarm system, the siren will
function independently.
• Low battery voltage alert
When the battery voltage is low, a low battery message is sent
to the alarm system. After the low voltage message delivery, at
least 2 siren alarms are possible before the siren is totally
inactive.
• Power Supply Options: Non-rechargeable battery. Optional -
two non-rechargeable batteries.
• Sound Types: Burglar (between 1400Hz - 3200Hz), fire,
gas/Co and flood.
• Entry/Exit: Exit delay beeps sound once the user has armed
the system. Entry delay beeps sound once the user has
entered the protected area. (Entry/exit beeps can be enabled /
disabled from the PowerMaster-10 Installer menu.)
• Squawk indications: Squawk (beep) sounds can be used to
indicate alarm system arming (1 squawk) and disarming (2
squawks) by a keyfob (squawk can be enabled from the
PowerMaster-10 User menu).
• Strobe Light Color: The siren can be purchased with red,
blue, amber or transparent lens, according to the desired
strobe light color.
• Siren activity LED: A flashing LED (optional, at the bottom of
the siren front panel) indicates siren activity (can be disabled
by the control panel)
2. SPECIFICATIONS
Frequency Band (MHz): Europe: 433, 868, USA: 915
Modulation: GFSK
Antenna: Built-in antenna
Communication Protocol: PowerG
Siren Type: One Piezo 109 db min. Sound Pressure Level @
1m, 1.4-3.2 kHz, sweep frequency 7 Hz. Additional piezo is
optional.
Battery Type:
3.6V/14.5A/H
ER34615M/w200), Visonic assembly cat. No. 0-9912-K.
Note: The strobe flashes 5 times and the red LED lights
continuously during first battery installation.
Note: Use only the above battery.
D-302414
Lithium battery (EVE
Installation Instructions
• Double Tamper protection: When the siren front panel is
removed or when the siren is removed from the wall, tamper
alarm is sent to the alarm system.
IMPORTANT! The SR-730 PG2 siren must be installed on the
wall in a vertical position with the screw pointing to the floor
only, as illustrated in Figure 1b.
positioning of the SR-730 PG2 is to enable the siren to function
as a waterproof device.
• 2-way full supervision
The siren is fully supervised, 2-way communication device. It
includes a receiver, to receive event messages from the alarm
system, and a transmitter, to periodically transmit its status signal
to the alarm system.

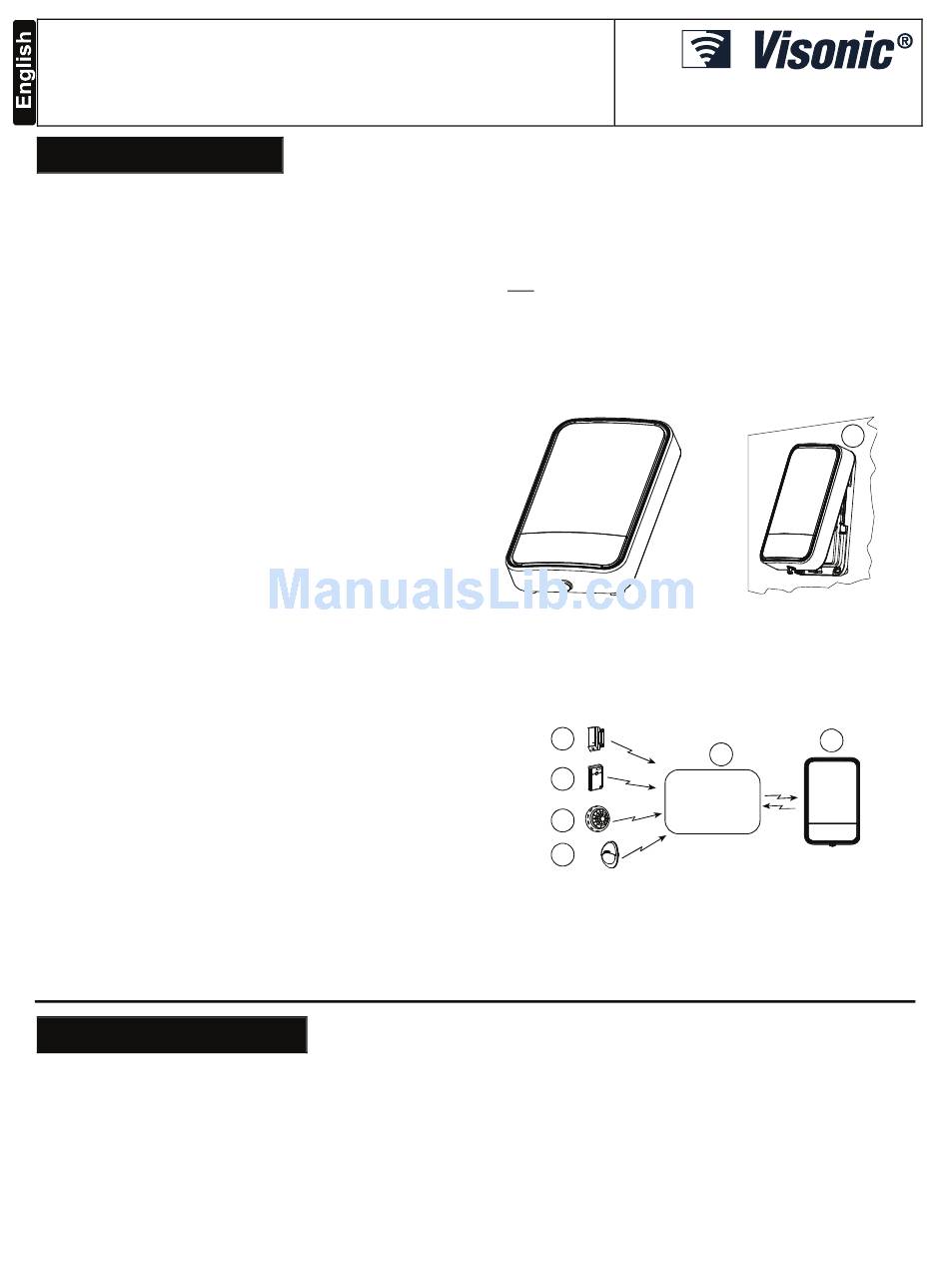

Fig. 1a - External View
Self-test feature
Upon pressing the self test switch, siren functional check is
performed - low level sounds and flash light indicate that the siren
is serviceable.
A
B
C
D
A. Door or window open/close detector.
B. Wireless transmitter.
C. Smoke detector
D. Motion detector
E. PowerMaster-10 Control Panel
F. SR-730 PG2
Figure 2- Typical Integration with the Alarm System
Caution!
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used battery according to manufacturer's instructions.
Battery Life Expectancy: 8 years (for typical use)
Strobe Light: Pulsed @ 1 sec.
Operating Temperature: -33°C to 70°C (-27.4°F to 158°F), RH
humidity 75%.
Dimensions (LxWxD): 295x186x63mm (11-5/8 x 7-5/16 x 2-1/2 in)
Weight (including battery): 970g (34 oz)
Color: White (with red, blue, amber or transparent lens)
Compliance with Standards:
The importance of correct
A
A. Wall
Fig. 1b – Mounting Position
F
E
