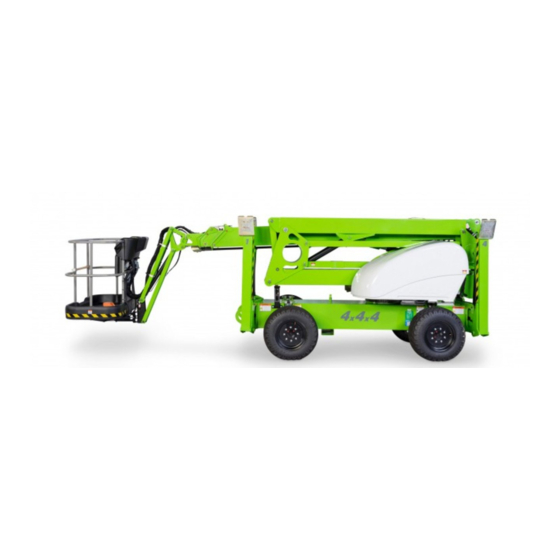

- Page 1 SD210 (SD64) Operating & Safety Instructions MODEL SD210 (SD64) SERIES SCALE 1.000 Manufactured by: Niftylift Limited Fingle Drive Stonebridge Milton Keynes MK13 0ER England www.niftylift.com e-mail: info@niftylift.com Tel: +44 (0)1908 223456 Fax: +44 (0)1908 312733 M50181/06...
-
Page 3: Table Of Contents
SD210 Series Operating & Safety Instructions Table of Contents Introduction and General Information 1.1 FOREWORD 1.2 SCOPE 1.3 INTRODUCING THE NIFTYLIFT SELF-DRIVE (SD) SERIES 1.4 GENERAL SPECIFICATION 1.5 IDENTIFICATION (UK PLATE) 1.6 EC DECLARATION OF CONFORMITY (Typical) Safety 2.1 MANDATORY PRECAUTIONS 2.2 ENVIRONMENTAL LIMITATIONS... -
Page 4: Introduction And General Information
SD210 Series Operating & Safety Instructions Introduction and General Information FOREWORD The purpose of these manuals is to provide the customer with appropriate safety operating and maintenance instructions essential for proper machine operation. All information in these manuals should be READ and fully UNDERSTOOD before any attempt is made to operate the machine. -
Page 5: Scope
Please note at the time of going to press all information, illustrations, details and descriptions contained herein are valid. Niftylift reserves the right to change, alter, modify or improve its products without any obligations to install them on previously manufactured machines. -
Page 6: General Specification
SD210 Series Operating & Safety Instructions GENERAL SPECIFICATION FEATURE SD210 4x4x4 (SD64 4x4x4) MAXIMUM HEIGHT - WORKING 21.2m 69ft 7in MAXIMUM HEIGHT - PLATFORM 19.2m 63ft MAXIMUM HEIGHT – STOWED 2.2m (Galaxy 33/1550-16.5 Tyres) 7ft 3in MAXIMUM HEIGHT – STOWED FOR TRANSPORTING 2.25m... - Page 7 SD210 Series Operating & Safety Instructions FEATURE SD210 4x4x4 (SD64 4x4x4) MAXIMUM FLOOR PRESSURE/WHEEL @ 32 psi 0.019 kN/cm2 3968 lb/ft2 GRADEABILITY 24º TRAVERSING SLOPE 10º FUEL TANK CAPACITY 80 litres 17.5 gallons TURNING RADIUS (INSIDE) – 2 WHEEL STEER 3.6m...
-
Page 8: Identification (Uk Plate)
Operating & Safety Instructions IDENTIFICATION (UK PLATE) This manufacturer’s plate is attached to the Base on each machine at the time of manufacture on every Niftylift. Please ensure all sections have been stamped and are legible. English/USA – 07/11 Issue 06... - Page 9 1.5a IDENTIFICATION (USA PLATE) This manufacturer’s plate is attached to the Base on each machine at the time of manufacture on every Niftylift. Please ensure all sections have been stamped and are legible. English / USA – 07/11 Issue 06...
-
Page 10: Ec Declaration Of Conformity (Typical)
SD210 Series Operating & Safety Instructions EC DECLARATION OF CONFORMITY (Typical) English/USA – 07/11 Issue 06... -
Page 11: Safety
2.1.7 Before the Niftylift is used and during use the user shall check the area in which it is to be used for possible hazards such as, but not limited to, uneven ground drop-offs, holes, bumps, obstructions, debris, floor and overhead obstructions, high voltage conductors, wind and weather, unauthorised persons and any other possibly hazardous conditions. - Page 12 Operating & Safety Instructions 2.1.9 Never position any part of the Niftylift within 4.0m, (12ft) of any electrical power line, conductor or similar not exceeding 66kV. (Minimum span 125m) Other distances for increased voltages and different spans are given in NZECP 34:1993.
- Page 13 Any problems or malfunctions that affect the safety of operation shall be repaired prior to continued use. 2.1.24 The boom and platform of the Niftylift shall not be used to jack the wheels off the ground. 2.1.25 The Niftylift shall not be used as a crane.
-
Page 14: Environmental Limitations
All standard Niftylift machines are rated for a wind speed of 12.5 m/s, which equates to 45kph / 28mph or force 6 on the Beaufort scale. No attempt should be made to operate a Niftylift in wind strengths above this limit and if the operator has any doubts over the wind speed he / she should cease operation immediately until it can be established that the wind speed has fallen to a safe level. -
Page 15: Test Report
Operating & Safety Instructions TEST REPORT All Niftylift machine models are subjected to a comprehensive ‘type test’ which duplicates all combinations of safe working load (SWL), overload, windage, inertia and pull force to assess the various safe stability criteria. Self propelled machines are also subjected to kerb and braking tests at the SWL to satisfy additional ‘worse case’... -
Page 16: Preparation And Inspection
Preparation and Inspection UNPACKING Since the manufacturer has no direct control over the shipping or carriage of any Niftylift it is the responsibility of the dealer and/or owner and/or leaser to ensure the Niftylift has not been damaged in transit and a Pre-operational Report has been carried out by a qualified engineer before the aerial platform is put into service. -
Page 17: Pre-Operational Safety Check Schedules
SD210 Series Operating & Safety Instructions PRE-OPERATIONAL SAFETY CHECK SCHEDULES Before use at the beginning of the work shift, the aerial platform shall be given a visual inspection and functional tests including, but not limited to the following. It is recommended that these be performed at regular intervals as indicated on each checklist. - Page 18 SD210 Series Operating & Safety Instructions 3.3.3 MONTHLY SAFETY CHECKS Check the engine oil level (if applicable). Check the wheel nuts (torque 110ft lbs / 150Nm). Check that the bolts holding the wheel motors to the chassis are secure. Check outriggers for condition, security and operation.
-
Page 19: Placard, Decals & Installation (Uk Spec)
SD210 Series Operating & Safety Instructions PLACARD, DECALS & INSTALLATION ITEM DESCRIPTION NUMBER No Step P14785 E-Stop Warning P14864 Footswitch P14884 Cage Control Panel P19106 Hydraulic Controls – 6 Levers P14020 If Tilt Alarm Sounds P18842 Overload Warning P18848 Head Protection... - Page 20 SD210 Series Operating & Safety Instructions Rotating Machinery (USA) P15010 English/USA – 07/11 Issue 06...
-
Page 21: Torque Requirements
SD210 Series Operating & Safety Instructions TORQUE REQUIREMENTS SCREW QUALITY/SIZE Tightening torque in ft lbs (Nm) Grade 10.9 (10) (14) 18.5 (25) (35) M 10 (49) (69) M 12 (86) (120) M 14 (135) (190) M 16 (210) (295) M 18... -
Page 22: Operation
4.1.2 CAGE OVERLOAD: - Each Niftylift is fitted with a cage overload sensing device located between the cage bracket and the cage itself. This device is preset at the factory and must only be reset or adjusted by a qualified Niftylift representative. - Page 23 SD210 Series Operating & Safety Instructions With the booms in the stowed position, the operator is allowed to drive the machine and negotiate slopes up to 10° without activating the tilt alarm (Refer to 4.1.3). Because of the restricted visibility over the engine canopy, an electric luffing switch has been provided.
-
Page 24: Setting Up Procedures
Read and fully comply with all safety precautions and operating instructions in the Operating and Safety manual and the warning decals on the machine. Position Niftylift on firm ground, bearing in mind range of boom movement so that any overhead obstructions or possible hazards such as, but not limited to, power cables, telephone lines, drains, manhole covers, etc. -
Page 25: Ground Control Operation
SD210 Series Operating & Safety Instructions GROUND CONTROL OPERATION ALWAYS ALLOW THE ENGINE TO WARM UP BEFORE OPERATION. 4.3.1 GROUND CONTROL INSTRUCTIONS ALL MODELS Check below, above and around the platform for any obstructions or hazards before operating any function. - Page 26 SD210 Series Operating & Safety Instructions BASE CONTROL STATION 1 Emergency Stop PUSH to stop machine TURN CLOCKWISE to release 2 Diesel Glow/Start Selector TURN ANTI-CLOCKWISE – Glow; Release or Off TURN CLOCKWISE – Start positions 3 Cage Overload Alarm Light ON –...
- Page 27 SD210 Series Operating & Safety Instructions Select lever 1, 2, 3, 4, 5 or 6 for desired boom function. 1 Operates Platform levelling UP for backwards DOWN for forward 2 Operates Flyboom UP for up DOWN for down 3 Operates Telescoping...
-
Page 28: Platform Control Operation
SD210 Series Operating & Safety Instructions PLATFORM CONTROL OPERATION NEVER START THE NIFTYLIFT IF YOU SMELL PETROL (GASOLINE), LIQUID PROPANE OR DIESEL. THESE FUELS ARE FLAMMABLE. BEFORE OPERATING THE NIFTYLIFT ENSURE THAT EACH OPERATOR HAS READ AND FULLY UNDERSTOOD THE OPERATING MANUAL. FAILURE TO DO SO MAY RESULT IN DEATH OR SERIOUS INJURY. - Page 29 SD210 Series Operating & Safety Instructions PLATFORM CONTROL STATION 1 Emergency Stop Push to Stop machine Turn clockwise to release 2 Horn Push to sound 3 Variable Speed Control Clockwise increases speed Anti-clockwise decreases speed 4 Cage enable Left = OFF...
- Page 30 SD210 Series Operating & Safety Instructions BOOM FUNCTIONS Push and hold green "Power Control" button. Select lever 1, 2, 3, 4, 5 or 6 for desired function. 1 Operates Cage Rotation UP for clockwise DOWN for anti-clockwise 2 Operates Flyboom...
-
Page 31: Driving Controls
When driving with the booms fully stowed, the Niftylift can be driven up and down slopes with an inclination of 24°. However, the tilt alarm operates a sounder and warning lamp on the cage control panel, warning the operator that the machine is operating on a slope greater than or equal to 10º. -
Page 32: Stabilisers
SD210 Series Operating & Safety Instructions STABILISERS Before elevating the booms, the operator must first deploy and set up each of the stabilisers using the switches on the cage console until the base is level. The level of the machine can be checked using the spirit level located on top of the base. -
Page 33: Cage Weigh System
4.7.1 MECHANICAL VERSION The Niftylift range of machines is available fitted with mechanical cage weigh systems. These are configured to sense a vertical cage overload, which when detected will halt the machine movement. No further use of the platform is then permitted until the overload has been removed. This must be done in a responsible manner and not one in which a greater hazard might be induced. - Page 34 SD210 Series Operating & Safety Instructions 4.7.4 CALIBRATION If a closer examination of the system is required, typically for testing and approval, the safe working load should be placed in the cage, carefully weighing the test load to ensure accuracy. The addition of a 5kg weight, to any of the four corners of the cage, should sound the alarm.
- Page 35 If there is evidence of any deformation in any part of the structure, then the advice of a Niftylift Service technician should be sought. Physical damage to the assembly is liable to render the cage weigh system inactive, or to affect the accuracy of the result. Under no circumstance permit a damaged machine to enter service without performing a thorough inspection and calibration of the weigh assembly.
- Page 36 4.7.7 REPLACEMENT If components are replaced, they must be genuine Niftylift parts. The accuracy and function of the cage weigh system relies on the like-for-like application of the component parts. A switch from a similar manufacturer might reverse the contact arrangement and critically affect the function of the mechanism.
-
Page 37: Transporting, Towing, Craneage, Storage And Setting To Work
• Always ensure the truck or trailer you are loading or towing the Niftylift with can carry it legally. • If loading by crane the use of shackles and an adequately rated spreader beam, with four leg slings around indicated slinging points on base, is MANDATORY. - Page 38 SD210 Series Operating & Safety Instructions 4.8.2 TOWING DO NOT TOW MACHINE WITHOUT FOLLOWING THE TOWING PROCEDURE AS DESCRIBED IN SECTION 5.3.4 OF THIS MANUAL. 4.8.3 CRANEAGE Observe all of the limitations relating to straps and chains stated above under ‘Transporting’.
- Page 39 If in doubt, contact our Service Department for further advice. Niftylift Limited is not liable for any third party damage caused during transport. Careful attention to correct procedures will prevent many of the small snags that can happen in transit. Re-work is both expensive and time consuming.
-
Page 40: Emergency Controls
SD210 Series Operating & Safety Instructions Emergency Controls GENERAL CHECKING THE OPERATION OF THE EMERGENCY CONTROLS EVERY DAY AND/OR BEFORE EACH SHIFT IS AN ESSENTIAL PART OF THE OPERATOR'S DUTIES The operator and all ground personnel must be thoroughly familiar with the location and operation of the EMERGENCY CONTROLS. - Page 41 SD210 Series Operating & Safety Instructions 5.3.1 BOOM OVERRIDE Ensure the Diverter Valve handle is turned to the right (see below). Operate the appropriate function, and using the Booms Hand Pump, manoeuvre the booms as required. If desired, the Cage operator can hold the appropriate lever to manoeuvre the machine, whilst a ground operative provides the motive power using the booms hand pump.
- Page 42 SD210 Series Operating & Safety Instructions 5.3.3 FRONT STEER OVERRIDE Push the CT15 Override fully in and hold, or pull fully out and hold. Now use the Integral Hand Pump to operate the front steer function. The push or pull function of the CT15 Override determines either left or right steer operation.
-
Page 43: Incident Notification
‘booms’ position when needed’. INCIDENT NOTIFICATION It is a mandatory requirement that any accident or incident involving a Niftylift is reported by telephone directly to Niftylift, regardless of whether any party received injury or property was damaged. Failure to do so may render any warranty on the machine void. -
Page 44: Responsibilities
CHANGES IN OWNERSHIP When a change of ownership of a Niftylift occurs, it shall be the responsibility of the seller to notify Niftylift direct of the unit, model and serial number and the name and address of the new owner within 60 days. -
Page 45: Inspection/Service/Pre-Hire Check List
SD210 Series Operating & Safety Instructions INSPECTION/SERVICE/PRE-HIRE CHECK LIST MACHINE SERIAL NO TOWING PASS FAIL Check brakes are released or… Check wheel gearboxes disengaged OUTRIGGERS Micro-switches secure Operation of each micro-switch and klaxon Operation of jack control valve and buttons... - Page 46 SD210 Series Operating & Safety Instructions SLEWING PASS FAIL Slew assembly and motor are secure Worm/wheel mesh correct, no excessive wear No end float of worm in housing Slew wheel bolts secured Slew guards secure PLATFORM Operation of Emergency Stop button...
