FrSky V8R Manual

2.4GHz Two-Way Radio System
1. Introduction
The Two-way Radio System developed by FrSky provides an additional return link
that would be used for monitoring the Rx's voltage, temperature, location, speed and so
on.
2. Overview
2.1 Transmitter modules:
a) Model: DFT
Compatible with the following transmitters:
Futaba: 3PM, 3PK, 7U, 8U, 8J, 9C, 9Z, 10C, FN series, T10C, FC-18, FC-28.
Hitec: Optic 6, Eclipse 7, Prism 7.
WFLY: WFT09, WFT08.

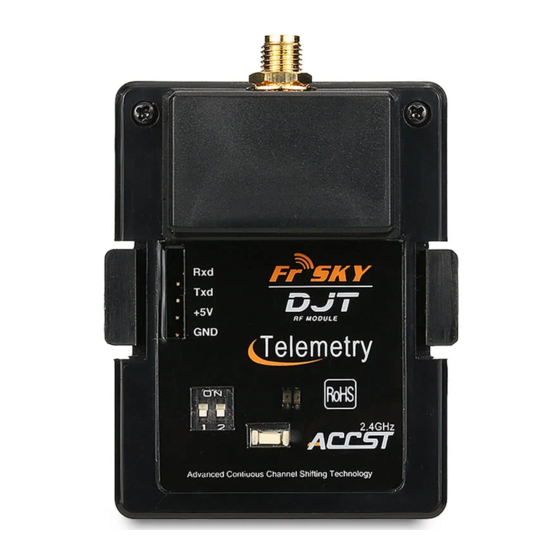

b) Model: DJT
Compatible with the following transmitters:
JR: 347/388/783/U8/PCM10/PCM10S/PCM10SX/PCM10IIS/8103/J9303/PX/9XII.
2.2 Receiver module:
a) Model: D8R, D8RHV
Compatible with FrSky Two Way module DFT/DJT.
b) Model: V8R, V8RHV, V8R7, V8R7HV, V8R4
V8 receivers work with DFT/DJT, just in receive-only mode.
3. Features
a) Advanced Continuous Channel Shifting Technology (ACCST SYSTEM)
achieves high reliable link in interference rich environments.
b) Easy to bind and instant link-up.
c) Excellent reboot times.
d) All channels failsafe.
Manual of Two-Way Radio System www.FrSky-rc.com P1of9
