Installation and Power Limited Wiring Instructions
Model MXL/MXLV Rack Mount Kits (RKs)
for ACM-RK, MKB-RK, MMB-RK, MOM-RK,
MPS-RK, SYS-RK, TSP-RK, VSM-RK, and Cables-RK
INTRODUCTION

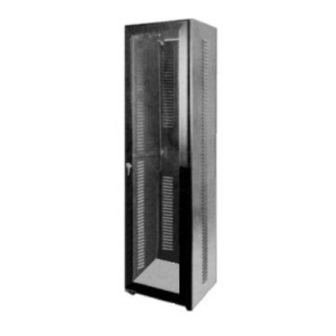

Model RK series of panels and cables provides standard 19" rack mounting for MXL
The
(without Voice) and MXLV (with Voice) modules. Table 1 lists the individual rack mount kits along with
the specific modules that mount onto them.
RACK
MOUNT KIT
ACM-1, MMM-1, PIM-1,
ACM-RK
TBM-1, and TMM-1
MKB-3, PIM-1
MKB-RK
MMB-1 or PSR-1
MMB-RK
MOM-RK Up to 3 MOM-4s, MOM-2s,
OMM-1s, and/or OMM-2s
MPS-RK Up to 2 MPS-6/-Ws and/or
MPS-12/-Ws
SYS-RK EL-410D
TSP-40
TSP-RK
Up to 6 VSM-1s, VLM-1s,
VSM-RK
VFM-1s, and/or VSB-1s
None
FILLER
PLATE*
4 special cables for
CABLES-RK
connecting modules
(Required)
* Filler plates can be purchased from any rack manufacturer.
NOTE: Each MXL/MXLV module that is mounted must be ordered separately.
Siemens Building Technologies, Inc.
8 Fernwood Road
Florham Park, New Jersey 07932
P/N 315-093402-9
TABLE 1
MXL/MXLV RACK MOUNT KITS
MOUNTS
MODULE(S)
PLACEMENT PANEL HEIGHT
ON RACK
Front 17 1/2" X 19"
Front 12 1/4" X 19"
Rear 12 1/4" X 19"
Rear 17 1/2" X 19"
Rear 8 3/4" X 19"
Rear 8 3/8" X 19"
Front 12 1/4" X 19"
Front
Front As required x 19"
Siemens Building Technologies, Ltd.
2 Kenview Boulevard
Brampton, Ontario L6T 5E4 CN
Fire Safety
TYPE OF
X WIDTH SYSTEM
MXLV
MXL/MXLV
MXL/MXLV
MXL/MXLV
MXL/MXLV
MXLV
MXL/MXLV
7" X 19" MXLV
MXL/MXLV
MXL/MXLV
