Installation Instructions
Models MBR-MP and MBR-3MP
Mounting Plates
Mounting the MBR-MP in an MME-3 Backbox:
1. Remove the nuts and washers from the 4 studs in the enclosure and place them to one side.
2. Mount the MBR-MP plate on the studs.
3. Secure the mounting plate in place using the hardware that was removed from the studs.
Siemens Industry, Inc.
Building Technologies Division
Florham Park, NJ
P/N 315-094882-5

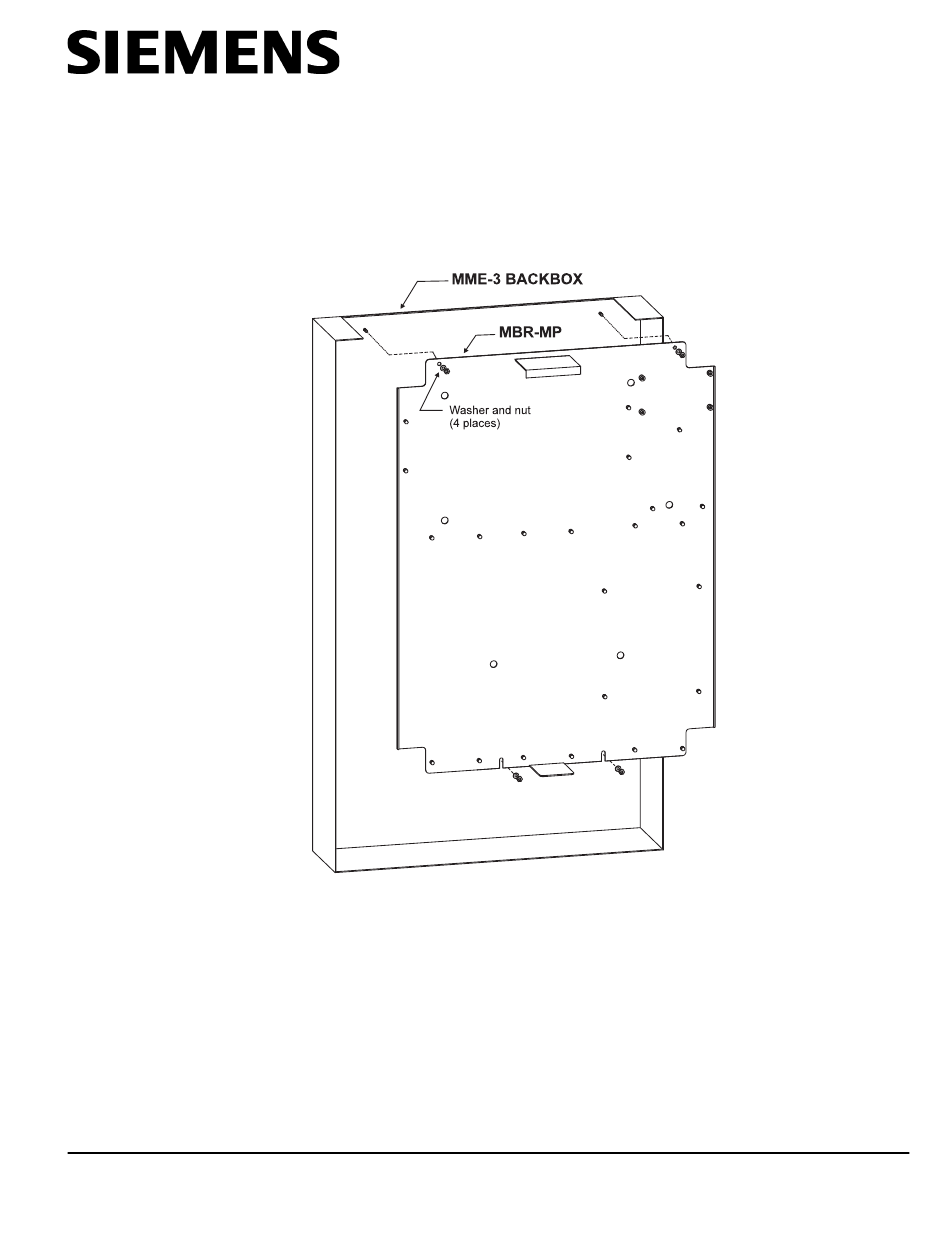

Figure 1
Mounting the MBR-MP in an MME-3 Enclosure
Siemens Building Technologies, Ltd.
Fire Safety & Security Products
2 Kenview Boulevard
Brampton, Ontario L6T 5E4 Canada
