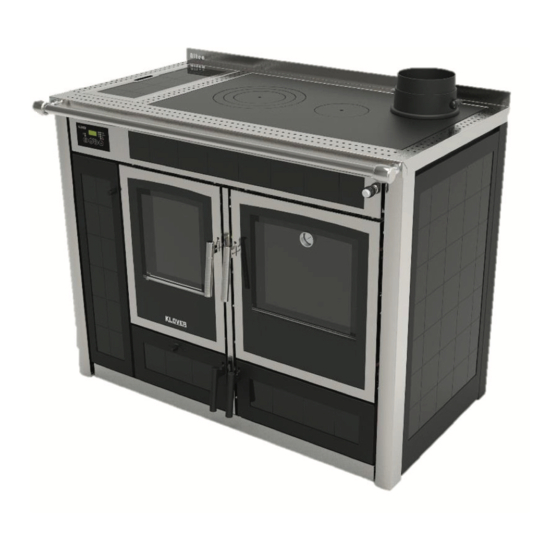

- Page 1 Wood burning ENGLISH boiler cooker ALTEA 110 SICURO TOP INSTALLATION, USE, MAINTENANCE AND HELPFUL TIPS...
- Page 3 DoP/KLOVER-029 : ALT110TOP / ALT110TOP-P Identification number Model and/or lot no. and/or serial no. (Art.11-4) : ALTEA 110 Home heating appliance fuelled by wood pellets, Intended use of the product according to the relevant harmonised technical specification which can also produce domestic hot water KLOVER s.r.l.
-
Page 4: Table Of Contents
CONTENTS CONTENTS ......................................1 INTRODUCTION .....................................3 ................................3 MPORTANT SAFETY INSTRUCTIONS THE APPLIANCE AND WOOD ................................4 ................................4 OMPONENTS OF THE APPLIANCE ...................................8 VERALL DIMENSIONS ...................................9 ONNECTIONS DATA SHEET ................................10 ECHNICAL PECIFICATIONS ....................................10 YPES OF WOOD REQUIREMENTS OF THE PLACE OF INSTALLATION ........................12 ......................................12 OSITIONING ..................................12... - Page 5 EN - Rev. 1.2 Dear client, First of all we would like to thank you for choosing a “KLOVER” product and we hope you will be satisfied with this product. Read the warranty guarantee carefully, which is found on the last page of this User guide; fill out the attached warranty card in full and return it within 10 days from the date of purchase.
-
Page 6: Introduction
- This user guide constitutes an integral part of the appliance. If the appliance is sold to another user, this manual must be passed on to the new owner. KLOVER S.R.L. DECLINES ALL LIABILITY IN CASE OF ACCIDENTS DUE TO FAILURE TO COMPLY WITH THE SPECIFICATIONS OF THIS MANUAL. -
Page 7: The Appliance And Wood
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 KLOVER S.R.L. SHALL NOT BE HELD LIABLE FOR THE INSTALLATION OF THE APPLIANCE. THE INSTALLER IS THE SOLE PARTY RESPONSIBLE FOR THIS OPERATION AND IS ALSO ENTRUSTED WITH CHECKING THE FLUE, EXTERNAL AIR VENT AND THE CORRECTNESS OF THE PROPOSED INSTALLATION SOLUTIONS. - Page 8 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 Cooking Primary Secondary hotplate. hotplate. hotplate. Upper smoker damper. Draught regulation handle. SICURO TOP Turn the handle to the cover. vertical position to open. Turn the handle to the horizontal position to close.
- Page 9 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 FRONT VIEW of LEFT-SIDE TECHNICAL COMPARTMENT Boiler unit loading cock. Grate raising lever. High-efficiency circulating pump for heating system. Circulating pump speed switch. Expansion tank 6 l with pre-load 1 bar.
- Page 10 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 REAR VIEW OF PLUMBING CONNECTIONS Air intake pipe. REAR VIEW of LEFT-SIDE TECHNICAL COMPARTMENT Boiling discharge pipe connection SICURO TOP. Delivery pipe connection of the heating system with check valve.
-
Page 11: Overall Dimensions
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 Overall dimensions... -
Page 12: Connections Data Sheet
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 Connections data sheet REAR VIEW Description of connections M = System Delivery 3/4" F R = System Return 3/4" M F = Domestic cold water inlet (on prepared models only) and boiler unit and system load 1/2"... -
Page 13: Technical Specifications
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 Technical Specifications Nominal heat input kW (Kcal/h) 34.9 (16.8) Nominal thermal output kW (Kcal/h) 29.3 (14.7) Nominal power released to heating water kW (Kcal/h) 22.1 (8.2) Nominal power delivered to room due to radiation kW (Kcal/h) 7.2 (6.5) - Page 14 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 appliance is directly affected by the type of wood used, on average a well-seasoned wood has a calorific value of 3200 kcal/kg. Calorific value of wood in relation to humidity:...
-
Page 15: Requirements Of The Place Of Installation
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 REQUIREMENTS OF THE PLACE OF INSTALLATION Positioning The initial phase for best installation of the appliance is to determine its optimum location; the following elements need to be considered: - The possibility of creating an external air vent;... -
Page 16: The Flue And Connection To The Same
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 The flue and connection to the same The flue is an essential element for the efficient operation of the appliance. The boiler cooker smoke outlet is 150 mm in diameter. -
Page 17: Electrical Connection
Connection to the mains power supply should only be carried out after the wires have been connected to the terminal board. KLOVER srl declines all responsibility for injury to persons and animals or damage to objects due to failure to connect the appliance to earth or to comply with IEC specifications. - Page 18 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 - Thermometer (indicates the temperature of the water inside the boiler unit); - Acoustic alarm (activated whenever the boiler water temperature reaches 90-95°C); - Level switch (indicates that water is not up to level inside the boiler).
- Page 19 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 DESCRIPTION OF LEDS - L1 PUMP LED The led turns on when the pump thermostat is selected. The LED lights up when the pump thermostat temperature setting is reached.
- Page 20 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 OPERATION - ON/OFF: The control unit is switched on/off by pressing and holding the P1 (ON/OFF). The L5 LED turns on to indicate the OFF status. - SAFETY function: If the temperature detected by the H2O PROBE exceeds the value of the Safety Thermostat, this forces the activation of the PUMP.
- Page 21 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 MAIN MENU With a simple click of the P4 (SET) button, it is possible to scroll though the values of the set Thermostats signalled by the flashing of the associated PUMP / VALVE / AUX LED.
-
Page 22: Control Of Any Coupled Boiler
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 TECHNICAL SPECIFICATIONS 230 VAC ±10%~50Hz Power supply Protective fuse T3,15A Mechanical Built-in temperature controller: 140 x 80 x 35 mm dimensions silicone/PVC cable Temperature probe Operating temperature: -50°C /130°C Measurement limits: 0 - 99°C –... -
Page 23: Example Of Electrical Connection
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 Note that the plumbing connection must be done in such a way that when the valve is at rest, the domestic water passes from the coupled gas. Only when the wood-burning appliance temperature is sufficiently high (value set via control unit on valve thermostat) is the three-way valve powered, closing the water circuit in the coupled boiler and opening the water circuit in the wood-burning appliance. -
Page 24: Hydraulic Connection
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 It is then possible to control the coupled boiler using the temperature set on the AUX thermostat; above the set temperature the coupled boiler turns off and comes on again only below the set temperature. - Page 25 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 RH technical compartment RH side The appliance can be coupled with any other boiler already installed on the system. In this case it is essential to fit all the necessary safety devices and shut-off valves based on the system and intended use.
-
Page 26: Initial Start-Up
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 INITIAL START-UP Filling the boiler unit and the system for the first time After connecting the appliance to the water system, fill the boiler unit as follows: - Dilute the Long Life product to 2% by pouring the contents of the bottle directly into the boiler unit (See section “Maintenance of the boiler... -
Page 27: Antifreeze Protection
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 NEVER OPERATE THE APPLIANCE WITHOUT WATER IN THE BOILER UNIT. IN ADDITION TO NOT HEATING, IT MAY ALSO COMPROMISE THE OPERATION AND LIFE OF THE APPLIANCE. Antifreeze protection In intensely cold periods it is good practice to leave the heating system running. -
Page 28: Operation
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 ATTENTION!!! IN ORDER FOR THE APPLIANCE TO OPERATE PROPERLY THE CAST IRON GRATE INSIDE THE COMBUSTION CHAMBER MUST BE POSITIONED AS SHOWN BELOW , TAKING CARE NOT TO INVERT IT, TO PREVENT THE ASH FROM COMPACTING AND NOT FALLING INTO THE ASH DRAWER. -
Page 29: Production Of Domestic Hot Water (Suitable Models Only)
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 To achieve maximum output to the cooking hotplate, push the grate raising lever downwards. This raises the position of the grate and brings the flame closer to the cooking hotplate; to return the grate to the low position, push the grate raising lever stop upwards: Grate raising lever stop. -
Page 30: Boiling
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 Boiling If for any reason (power cut, a pump fault, too much fuel, etc.…), the water in the boiler unit reaches boiling point, carry out the following operations immediately: - Fully open all smoke dampers;... -
Page 31: What Happens If There Is
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 What happens if there is.. - INSUFFICIENT DRAUGHT - POOR FLUE GAS EVACUATION - FLUE GAS ESCAPING INTO THE ROOM ELEMENTS TO CHECK ORIGIN External air intake - Non-existent;... -
Page 32: Cleaning And Maintenance
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 CLEANING AND MAINTENANCE Precautions before cleaning Before carrying out any cleaning or maintenance operations, make sure that: - the appliance is off and has cooled down completely. - the ash is completely cold. - Page 33 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 The cooking hotplate which requires ash to be removed using a vacuum. Vacuum any ash which has deposited above the combustion chamber, above and around the entire oven (figure 3).
- Page 34 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 Remove the two hex screws completely in order to remove the inspection vent below the oven (figure 5 e 6). Next remove the counter plate which fastens the vent...
-
Page 35: Cleaning The Ash Drawer
WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 After a long period of disuse, check for obstructions in the flue before turning on the appliance. Cleaning the ash drawer Too much combustion residue inside the ash drawer prevents the proper supply of oxygen for combustion, reducing the performance of the appliance, as well as possibly damaging the grate inside the combustion chamber. -
Page 36: Cleaning The Flue
You must periodically check the seals because the latter guarantee the air- and water-tightness of the appliance and its good functioning; if they are worn or damaged you need to be replace them immediately by contacting a Klover Authorised technical assistance centre. - Page 37 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2 Contact your agent/retailer to purchase LONG LIFE. Below are a number of special warnings for the use of LONG LIFE: - Causes serious eye irritation. - May cause an allergic skin reaction.
-
Page 38: Warranty Conditions
The warranty period starts from the date of purchase of the appliance, which must be demonstrated by a delivery document and the warranty coupon duly completed and sent in a sealed envelope to the address of KLOVER SRL. These documents must be shown to the Technical Assistance Centre, if required. - Page 39 WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP EN - Rev. 1.2...
- Page 40 Cod. CS.IST.ALT110TOP-EN KLOVER Srl Via A. Volta, 8 37047 San Bonifacio (VR) VAT No. 02324280235 www.klover.it...
