Summary of Contents for NTC VDR22

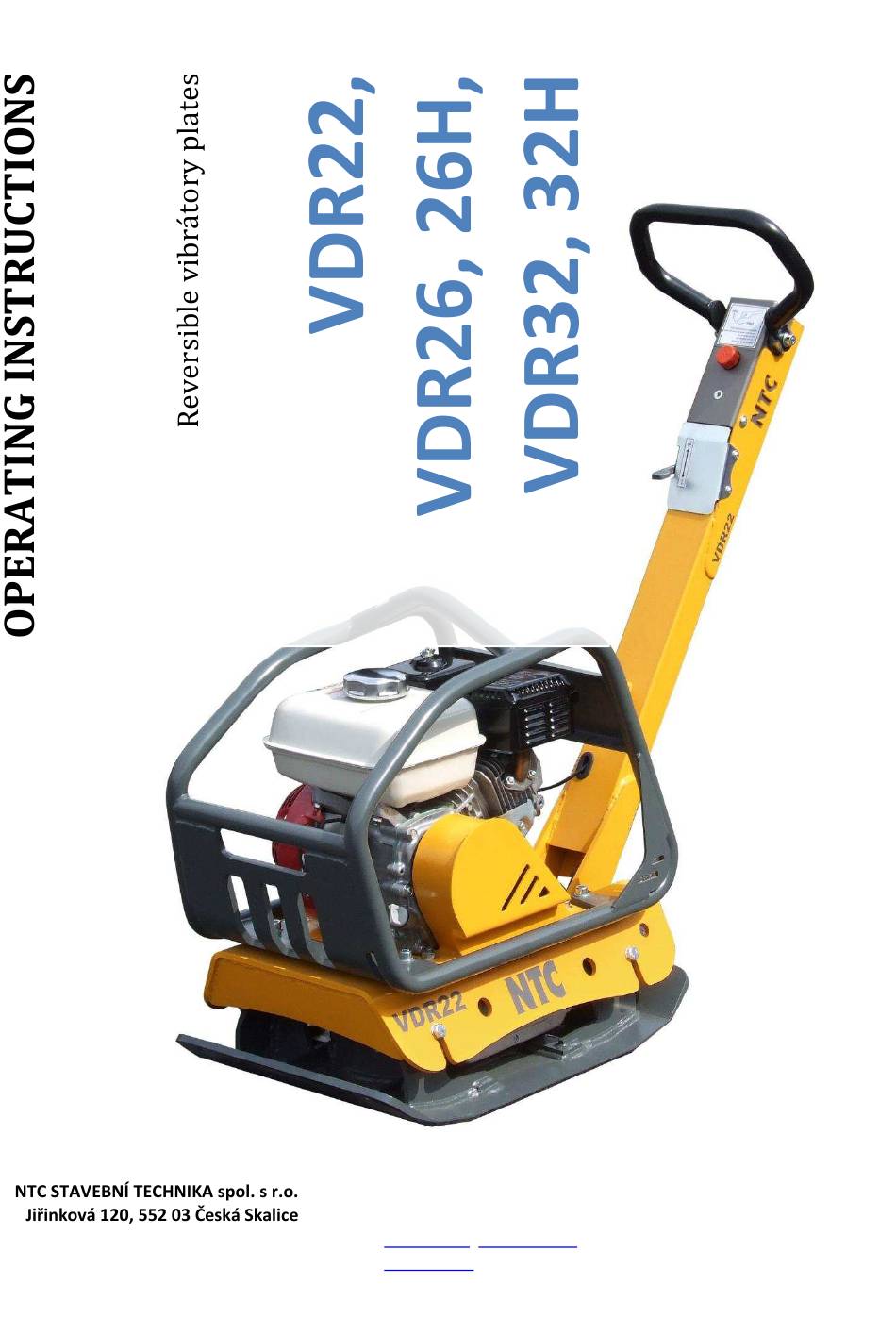

- Page 1 ORIGINAL OPERATION MANUAL (2006/42/EC) Czech Republic e-mail: ntc@ntc.cz, sales@ntc.cz Tel: +420 491 452 184 www.ntc.cz (06/2009) Fax: +420 401 609...
- Page 2 Reversible vibratory plates Operating instructions Declaration of Conformity (original) We declare that the trough below mentioned specifications defined equipment complies with requirements of below cited Directives (manufacturer): r.o. (company domicile): (identification number): 63221152 r.o. (Person in charge of assembling and storing technical documentation) / REVERSIBLE VIBRATORY PLATE (model): VDR22, 26, 26H, 32, 32H...
-
Page 3: Table Of Contents

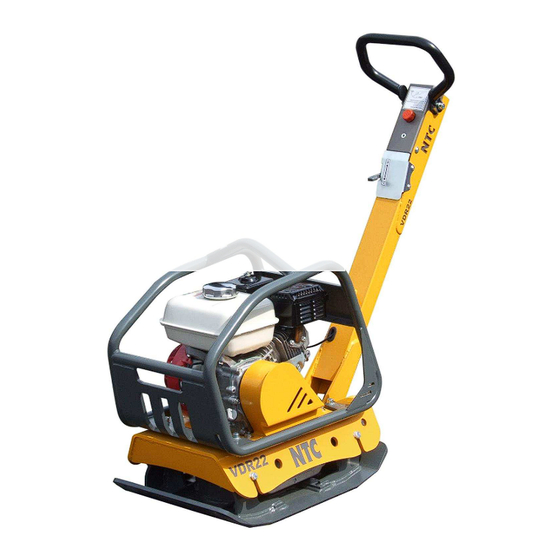

Reversible vibratory plates Operating instructions Congratulations on purchasing the VDR Series Reversing Vibration Plate Compactor. You have become an owner of a top-quality high- performance heavy-duty compacting machine. Please read these Instructions carefully and follow them when working with the Compactor. This is the only way of protecting health of operators and persons nearby, of providing safe and effective operation and long service life of the machine. -
Page 4: Safety Instructions
Reversible vibratory plates Operating instructions SAFETY INSTRUCTIONS General Safety Instructions for Work with Small Tools and Device 1.1.1 Qualification Requirements As a rule, no machine operator's card is required for work with small tools and devices. Nevertheless, the person in charge of operating small tools and devices individually should meet the following conditions: The persons to be charged with working with small tools and devices should: be older than 18;... -
Page 5: Machine Operation
Reversible vibratory plates Operating instructions 1.1.4 Machine Operation When working with the machine, the operator or the operating staff should follow the following instructions: Check the machine, especially all its protective elements (e.g. covers) and controls. Make sure that there are no leaks of fuel from the fuel system or oil from the engine. Should a defect is found, the machine must not be operated until the defect is repaired. -
Page 6: Loading And Transportation
Reversible vibratory plates Operating instructions Any changes and modifications of the machine can only be made with the manufacturer's express consent. 1.1.6 Loading & Transportation The machine may only be loaded and transported using a device or a vehicle with the lifting or loading capacity corresponding to the weight of the machine (see "Basic Specifications"). - Page 7 Reversible vibratory plates Operating instructions side 7 edition 06/2009...
-
Page 8: Hygienic Principles
To hand over the used engine and hydraulic oil only to those persons who are duly authorized to dispose used oils; NTC cannot be held responsible for any damages to the user's health or to the environment if the aforementioned hygienic and environmental principles are not observed. -
Page 9: Safety Instructions For Work With Compacting Machines
Reversible vibratory plates Operating instructions Safety Instructions for Work with Compacting Machines Compacting machines are vibration plates, vibration (jumping) rammers and vibration rollers. When working with these machines, the following safety instructions should be followed: Before work, evaluate the bearing capacity of the terrain, locate the places of underground spaces and underground services to prevent caving-in the machine or damaging the underground structures. -
Page 10: List Of Safety Stickers (Labels) Used On The Machine
Reversible vibratory plates Operating instructions List of Safety Stickers (Labels) Used on the Machine At the designated types of machinery vibration plate types VDR22 VDR32H to comply with the Act No. 22/1997 Coll. on technical requirements for products, as amended, located stickers symbols safety signs, symbols and informative descriptions of the design and implementation determine the technical norm. -
Page 11: Disposal Of The Packing Materials
EKO-KOM a.s. company. This means that there is a contract between EKO-KOM a.s. and r.o. on repurchase of all kinds of packing materials either by NTC or by suppliers of the packing materials. 1.10. Special conditions of operation 1.10.1. -
Page 12: Basic Specifications
Reversible vibratory plates Operating instructions 2.1. Basic specifications: Machine dimensions [mm] Type VDR22 1090 1180 VDR26 1000 1100 1220 VDR26H 1000 1100 1225 VDR32 1040 1130 1290 VDR32H 1040 1130 1300 Type VDR22 VDR26 VDR32 Model VDR22 VDR26 VDR26H VDR32 VDR32H Weight [kg]... -
Page 13: Lubricants
Reversible vibratory plates Operating instructions 2.2. Lubricants - Engine Oil 15W-40 filling - HONDA GX - 0,6 l filling - HATZ 1B20 - 0,9 l - Oil in the Vibrator 15W-40 VDR 22, 26 a 26H, 32 a 32H Volume: 0,4 l - Hydraulic Oil OH-HV 68 VDR 22, 26 a 26H, 32 a 32H... -
Page 14: Preparations Before Work
Reversible vibratory plates Operating instructions PREPARATIONS BEFORE WORK Checking the Engine Oil Level Checking the engine oil level on a regular basis is recommended even with the machines provided with the oil-level sensor. With the machines without the sensor, everyday checking is absolutely essential. Use recommended kinds of oils only. -
Page 15: Checking The Vibration Exciter Oil Level
Reversible vibratory plates Operating instructions In case of any oil leakage, stop the engine immediately and call an authorized serviceman or contact the manufacturer. Checking the oil level in HATZ 1B20 engines should be carried out as follows: Place the machine into a horizontal position. Clean the plug (1) and unscrew it from the filler (2) on the engine. -
Page 16: Checking The Fuel Level
Reversible vibratory plates Operating instructions In the case of low oil level, contact authorized service. All kinds of repairs of the vibrator within the warranty period may exclusively be carried out by an authorized service or by the manufacturer. Unauthorized intervension will cause the warranty to become void. -
Page 17: Checking The Air Cleaner
Reversible vibratory plates Operating instructions winter kinds of Diesel oils or mixtures of the Diesel oil with special additives or possibly with kerosene to prevent paraffines from being liberated and deposited in the machine fuel system. Offer for Diesel oil at individual filling stations usually reflects the season of the year. - Page 18 Reversible vibratory plates Operating instructions Remove the foam collar (3). Check the paper filter element to make sure that it is clean and in good order. Clean the paper filter element carefully blowing it off with compressed air from inside. Replace if too dirty. Wash the foam collar in soap water, never in any solvent!!! Replace if damaged.
-
Page 19: Starting Up The Machine
Reversible vibratory plates Operating instructions Check the paper element of the air filter to ensure it is clean and in good condition. Clean the air filter element carefully in direction from inside to outside, using pressured air. In case of serious impurity replace the air filter element. Re-install all removed parts carefully. Never operate the engine without the filter or with a damaged one. - Page 20 Reversible vibratory plates Operating instructions Put the choke into the ON position (1). Do not use the choke if the engine is hot or at higher ambient temperatures. When operating the HONDA Engines, follow the Honda operating instructions. Put the control lever in the idle-run position (1). Pull the handle of the starting wire a little until you feel a resistance.
- Page 21 Reversible vibratory plates Operating instructions 9. The travel control lever will automatically move forward and the machine will start travelling forward. 10. Pull the travel control lever backwards to make the machine travel backwards. Travel Forward Travel Backward HATZ 1B20 and 1B30 Diesel Engines (Starting with a Stranded Wire) Set the throttle control lever (see 4.2.1) into the idle-run position (a little bit above its extreme position).
-
Page 22: Honda Petrol Engines
Reversible vibratory plates Operating instructions 5 The travel control lever will automatically move forward and the machine will start travelling forward. 6. Pull the travel control lever backwards to make the machine travel backwards. Travel Forward Travel Backward STOPPING THE MACHINE HONDA Petrol Engines Put the throttle control lever into the "0"... - Page 23 Reversible vibratory plates Operating instructions Set the ignition switch to "OFF" (1). Set the fuel valve (1) to "OFF". side 23 edition 06/2009...
-
Page 24: Hatz Diesel Engines (Starting With A Cranking Handle)
Reversible vibratory plates Operating instructions HATZ Diesel Engines Put the throttle control lever (1) into the "0" position (idle run). The centrifugal clutch declutches and the engine stops vibrating. 2. Push red button (1) for 2-3 seconds to shut-off the engine. side 24 edition 06/2009... -
Page 25: Maintenance
Reversible vibratory plates Operating instructions MAINTENANCE For the engine maintenance see the attached separate operating instructions. Tightening the V-belt of the vibration exciter drive: The V-belt can be tightened (see Par. 7 of the Maintenance Schedule) Checking the bolted connections: It is recommended to check the bolted connections every time before starting up the engine. -
Page 26: Maintenance Schedule
If the engine is operated in a dusty environment, the maintenance operations should be more frequent. These maintenance operations should be carried out by a NTC serviceman or by an authorized service centre depending on the engine type, especially if the user does not have sufficient knowledge or tools. - Page 27 If the engine is operated in a dusty environment, the maintenance operations should be more frequent. These maintenance operations should be carried out by a NTC serviceman or by an authorized service centre depending on the engine type, especially if the user does not have sufficient knowledge or tools.
- Page 28 Operating instructions 8. WARRANTY TERMS Construction machines manufactured by NTC are designed and manufactured to suit longterm operation by most difficult conditions. Based on our experience we can say that these machines do work reliably not during the warranty period but also long time after the warranty expires.
- Page 29 Please send properly filled protocol by fax, e-mail or post to above mentioned address, you will speed the process up! Accepting the warranty (to be filled in by warranty dept. of NTC): Date of repair start: Date of repair...
- Page 30 Used spare parts: Part no. Description Tech. director sign. Production director sign Finishing warranty management (to be filled by warranty dept. of NTC): Arranged by: Way of transport: Shipment date: Returning the machine to owner (in case of repair in...
- Page 31 ГРАФИК РАБОТЫ: Пн. – Пт.: с 8:30 по 18:30 Сб.: с 09:00 по 16:00 Вс.: с 10:00 по 16:00 КОНТАКТЫ: +38 (044) 360-46-77 +38 (066) 77-395-77 +38 (097) 77-236-77 +38 (093) 360-46-77 Детальное описание товара: https://storgom.ua/product/vibroplita-ntc-vdr32.html Другие товары: https://storgom.ua/vibroplity.html...
