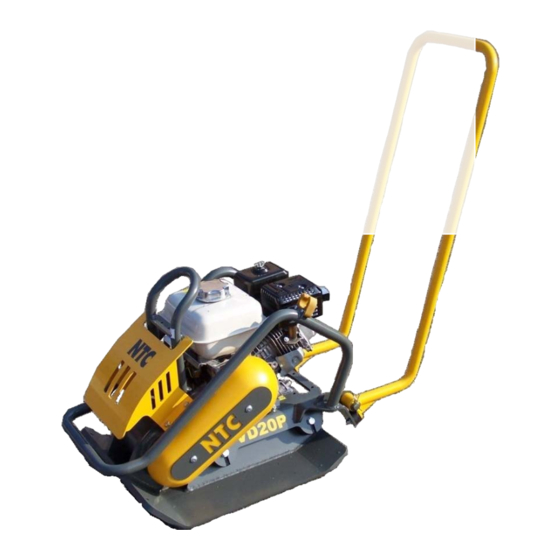

- Page 1 NTC STAVEBNÍ TECHNIKA spol. s r.o. Maloskalická 120, 552 03 Česká Skalice Czech Republic Tel: +420 491 452 184 ORIGINAL OPERATION MANUAL (2006/42/EC) Fax: +420 491 401 609 e-mail: ntc@ntc.cz, sales@ntc.cz www.ntc.cz (issued 10/2011)
- Page 2 Prohlašujeme, že zařízení definované níže uvedenými údaji je ve shodě s požadavky níže uvedených NV a směrnic We declare that the trough below mentioned specifications defined equipment complies with requirements of below cited Directives Výrobce (manufacturer): NTC STAVEBNÍ TECHNIKA spol. s r.o. V Aleji 654, Nové Město nad Metují 549 01 Sídlo firmy (company domicile): Maloskalická...
-
Page 3: Table Of Contents
The manufacturer bears no responsibility for damages arising from not keeping the operation manual. The manufacturer of this machine is the company NTC STAVEBNÍ TECHNIKA spol. s r.o. Address: Maloskalická 120 552 03 Česká Skalice tel.: +420 491 452 184, fax: +420 491 401 609... - Page 4 Vibratory plate compactors Operation manual 4.4.5. Storage ..............................20 4.5........................ 20 PECIAL CONDITIONS OF OPERATION 4.5.1. Operation at low ambient temperature ....................20 4.5.2. Operation at high altitudes ........................20 4.5.3. Operation in Dusty Environment ......................20 MAINTENANCE ............................20 5.1.
-
Page 5: Safety Instructions
Vibratory plate compactors Operation manual 1. SAFETY INSTRUCTIONS 1.1. General Safety Instructions for Work with Small Tools and Device 1.1.1. Qualification Requirements As a rule, no machine operator's card is required for work with small tools and devices. Nevertheless, the person in charge of operating small tools and devices individually should meet the following conditions: The persons to be charged with working with small tools and devices should: •... -
Page 6: Machine Operation
Vibratory plate compactors Operation manual 1.1.4. Machine Operation When working with the machine operator must observe the following guidelines: Check the machine, especially all its protective elements (e.g. covers) and controls. Make sure that there are no leaks of fuel from the fuel system or oil from the engine. Should a defect is found, the machine must not be operated until the defect is repaired. -
Page 7: Loading & Transportation
Vibratory plate compactors Operation manual 1.1.6. Loading & Transportation The machine may only be loaded and transported using a device or a vehicle with the lifting or loading capacity corresponding to the weight of the machine (see "Basic Specifications"). When loading the machine with a crane, all the regulations applicable to work with a crane should be observed. -
Page 8: Enviromental Principles
To hand over the used engine and hydraulic oil only to those persons who are duly authorized to dispose used oils; NTC cannot be held responsible for any damages to the user's health or to the environment if the aforementioned hygienic and environmental principles are not observed. -
Page 9: Hygienic Data
1.8. List of safety symbols used on the machine At the designated types of machinery vibration plate types VD15P, 18P, 20P a 24P to comply with the Act No. 22/1997 Coll. on technical requirements for products, as amended, located stickers symbols safety signs, symbols and informative descriptions of the design and implementation determine the technical norm. -
Page 10: Disposal Of The Packing Material
The company of NTC STAVEBNÍ TECHNIKA spol. s r.o. is registered with the EKO-KOM a.s. company. This means that there is a contract between EKO-KOM a.s. and NTC STAVEBNÍ TECHNIKA spol. s r.o. on repurchase of all kinds of packing materials either by NTC or by suppliers of the packing materials. Page 10... -
Page 11: Technický Popis
Special equipment to transport the chassis vibration plates, plastic mat compaction paving and operating hours counter. 2.1. Basic technical data: Vibration plates are characterized by one-way design with a comfortable cushioned handle and folding ROPS, which protects the engine from damage and ease of handling. Type VD15P VD18P VD20P VD24P Weight [kg]... -
Page 12: Lubricants
Vibratory plate compactors Operation manual Fig. Basic description of the machine – a variant without sprinkling 1. Plate with vibratory, 3. Frame with handlebars Praktik, 4. Engine, 6. Cover, 7. Cover VD, 10. Signs Fig. Basic description of the machine – a variant with sprinkling 1. -
Page 13: Machine Identification
Vibratory plate compactors Operation manual 2.3. Machine identification It is highly important to refer the exact type and serial number of your machine whenever contacting the manufacturer or the dealer (i.e. for warranty reasons, ordering of spare parts or service, for technical questions). -
Page 14: Prior To Starting
Vibratory plate compactors Operation manual It is recommended to write down important identification data of your machine into the following table. You will find it useful when ordering parts or service, in case of a warranty claim or in the event of reporting stolen equipment: Model Serial number... -
Page 15: Visual Inspection Of The Machine
Vibratory plate compactors Operation manual 3.2. Visual inspection of the machine Inspect the machine regularly, with particular attention to: • completeness of the machine (missing parts); • condition of the protective devices (covers) and controls; • bolter connections; • fuel or oil leakage; •... -
Page 16: Operating The Machine
Vibratory plate compactors Operation manual OPERATING THE MACHINE 4.1. Starting Turn the fuel valve to the open position Fig. Open fuel valve engine Turn the switch (ignition switch) the motor position ON (lever switch down) Fig. Engine ON/OFF switch Engine throttle position to give SLOWLY (slightly open throttle) Fig. - Page 17 Vibratory plate compactors Operation manual Turn the choke to start position. Do not choke when the engine is warm or if the higher ambient temperature. Fig. On the motor choke Handle pull the starter cord until you feel resistance, then pull rapidly Starter cord handle drop sharply back.
-
Page 18: Operating The Machine
Vibratory plate compactors Operation manual Motor full load before running moment leave to heat up. Move the throttle to full throttle position. At about 1700 rev / min centrifugal clutch automatically switches the machine begins to vibrate. Fig. The lever position, engine throttle Starting and stopping the engine is described in detail in the attached instruction manual Honda engine. -
Page 19: Handling, Transport, Storage
Vibratory plate compactors Operation manual 2. Turn the ignition switch into the "OFF" position (switch lever up). 3. Fig. Engine ON/OFF switch Turn the fuel valve to the closed position. Fig. Closed fuel valve engine 4.4. Handling, transport, storage When handling the machine and its transport strictly follow the safety instructions in this manual, as well as generally applicable transcripts to work with handling equipment or lifting equipment. -
Page 20: Handling By Forklift
Vibratory plate compactors Operation manual 4.4.3. Handling by forklift If the machine is often handled with a forklift (for example when sending collection service), we attach a variety of machine and send it together with a variety. For one machine is suitable for "small" range of dimensions 0.8 x 0.6 m, two machines for a variety of standard EUR 1.2 x 0.8 m. -
Page 21: Tensioning Of The Drive Belt
Vibratory plate compactors Operation manual 5.2. Tensioning of the drive belt Inspect tensioning of the drive belt on a regular basis. Belt deflection should be about 10mm under finger pressure (2 kg). When necessary to tighten the belt, proceed as follows: •... -
Page 22: Exchange Of Oil In The Vibrator
Vibratory plate compactors Operation manual 5.4. Exchange of oil in the vibrator To carry out oil exchange, proceed as follows: • warm-up the vibrator to operational temperature • turn off the engine, unscrew the drain plug (marked with an arrow) Fig. -
Page 23: Adjustment Of Engine Speed
Vibratory plate compactors Operation manual 5.7. Adjustment of engine speed In case of repair or replacement of the engine, adjust the engine speed as follows: Remove the belt cover and measure revolutions of the vibrator pulley. The vibrator frequency is 100Hz (6000 VPM) and the engine speed is 3324 RPM. -
Page 24: Maintenance Schedule
7. MAINTENANCE SCHEDULE This maintenance schedule contains only the most important operations. Besides of these operations, carry out maintenance and repairs of the machine as necessary depending on the respective conditions of operation. Check also the engine operation manual. WARNING: Turn off the engine before any maintenance or repair activity. -
Page 25: Warranty Terms
8. WARRANTY TERMS The NTC construction machines are designed and manufactured to suit to long-term operation even under the toughest operating conditions. In accordance with long-term experience we can say that the machines reliably work not only for the warranty period, but even much longer. - Page 26 This properly filled in protocol should be sent by fax or registered letter to the above address; that will help us to resolve your warranty claim quickly. Confirmation of rightfulness of the warranty claim (to be filled in by NTC commercial department): Date of sale:...
