ASCOM 21 User Manual page 2

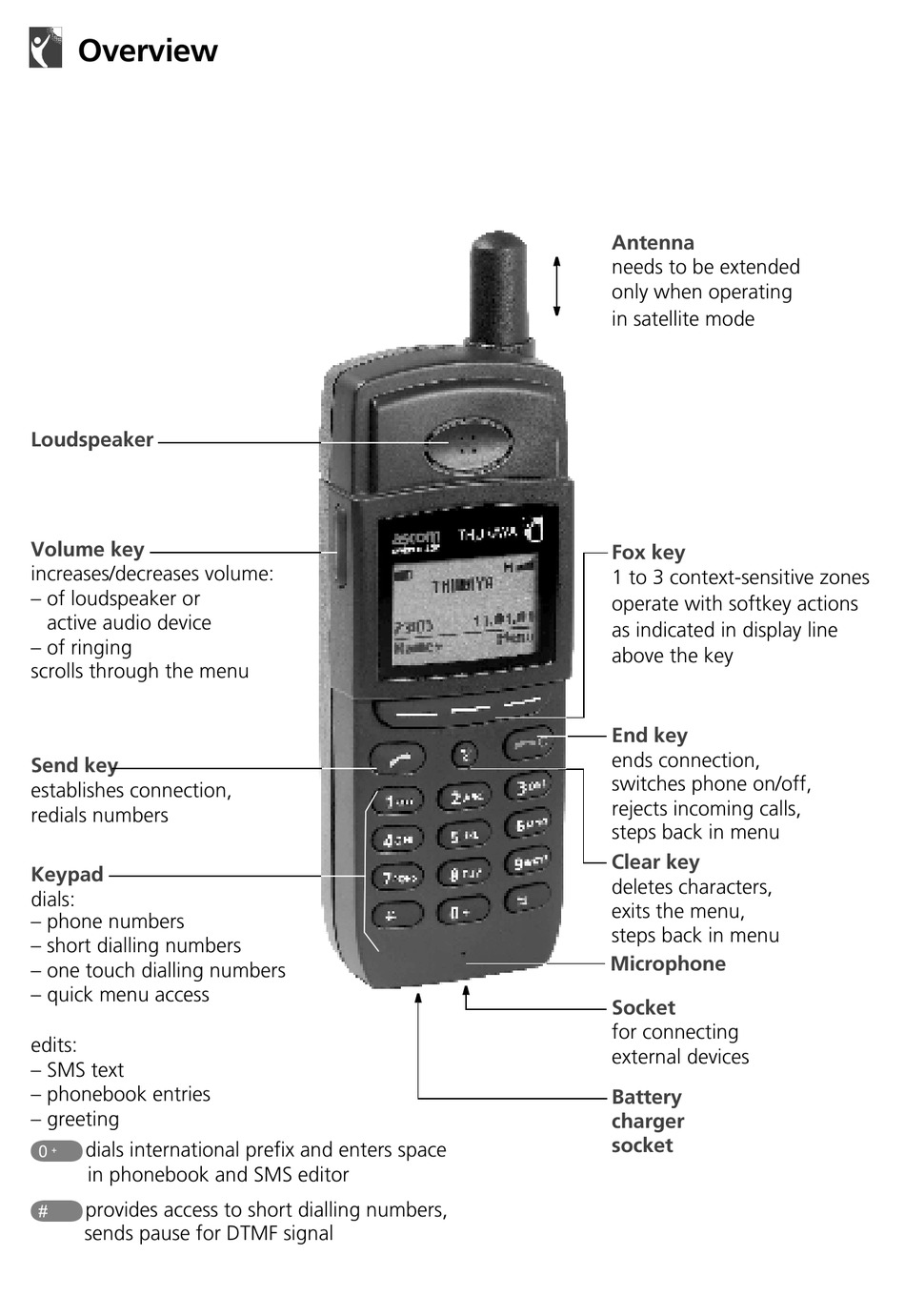

Overview
Loudspeaker
Volume key
increases/decreases volume:
– of loudspeaker or
active audio device
– of ringing
scrolls through the menu
Send key
establishes connection,
redials numbers
Keypad
dials:
– phone numbers
– short dialling numbers
– one touch dialling numbers
– quick menu access
edits:
– SMS text
– phonebook entries
– greeting
0
dials international prefix and enters space
in phonebook and SMS editor
&
provides access to short dialling numbers,
sends pause for DTMF signal
Antenna
needs to be extended
only when operating
in satellite mode
Fox key
1 to 3 context-sensitive zones
operate with softkey actions
as indicated in display line
above the key
End key
ends connection,
switches phone on/off,
rejects incoming calls,
steps back in menu
Clear key
deletes characters,
exits the menu,
steps back in menu
Microphone
Socket
for connecting
external devices
Battery
charger
socket
