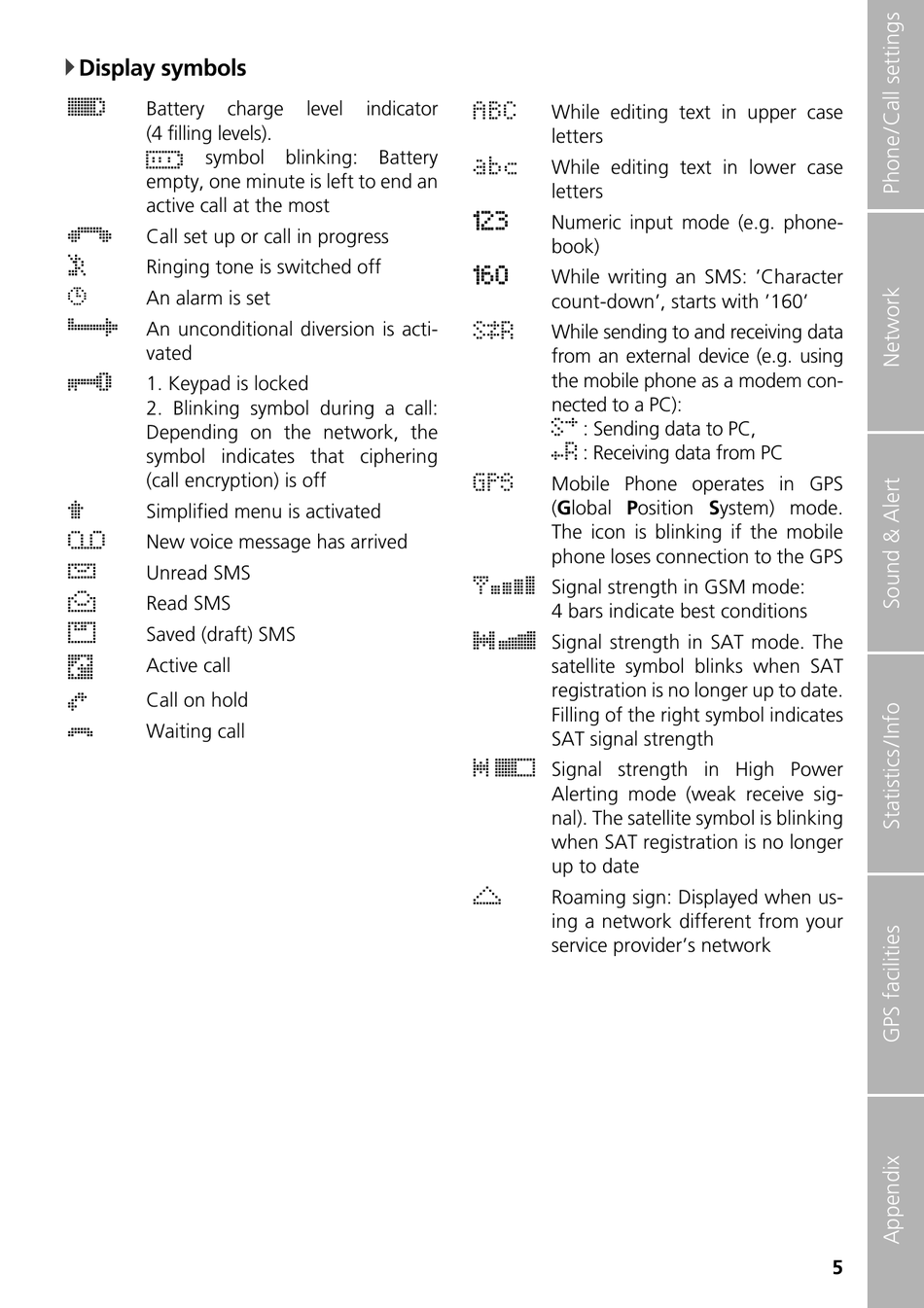

Display symbols
$
Battery charge
(4 filling levels).
symbol
6
empty, one minute is left to end an
active call at the most
%
Call set up or call in progress
(
Ringing tone is switched off
<
An alarm is set
|
An unconditional diversion is acti-
vated
&
1. Keypad is locked
2. Blinking symbol during a call:
Depending on the network, the
symbol indicates that ciphering
(call encryption) is off
}
Simplified menu is activated
*
New voice message has arrived
?
Unread SMS
=
Read SMS
\
Saved (draft) SMS
Active call
B
u
Call on hold
v
Waiting call
level indicator
blinking: Battery
,
While editing text in upper case
letters
.
While editing text in lower case
letters
E F G
Numeric input mode (e.g. phone-
book)
E J N
While writing an SMS: 'Character
count-down', starts with '160'
S t R
While sending to and receiving data
from an external device (e.g. using
the mobile phone as a modem con-
nected to a PC):
S s : Sending data to PC,
r R : Receiving data from PC
7
Mobile Phone operates in GPS
(Global Position System) mode.
The icon is blinking if the mobile
phone loses connection to the GPS
! Signal strength in GSM mode:
4 bars indicate best conditions
" Signal strength in SAT mode. The
satellite symbol blinks when SAT
registration is no longer up to date.
Filling of the right symbol indicates
SAT signal strength
# Signal strength in High Power
Alerting mode (weak receive sig-
nal). The satellite symbol is blinking
when SAT registration is no longer
up to date
)
Roaming sign: Displayed when us-
ing a network different from your
service provider's network
5
