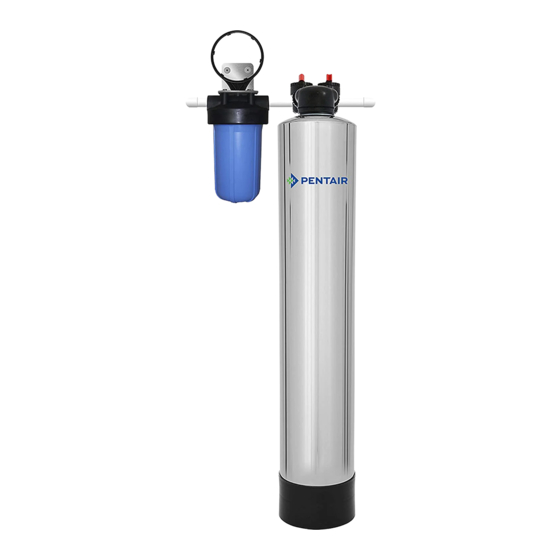

- Page 1 Pelican Water Systems Owner's Manual Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner...
- Page 2 Pelican Water Systems shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 3 Table of Contents Table of Contents ............3 Product Operation and Specifications . -
Page 4: Product Operation And Specifications
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 4 Product Operation and Specifications Specification Description Max Flow Rate 10 GPM 15 GPM Minimum Working Pressure 25 PSI Maximum Working Pressure 80 PSI Maximum Vacuum 5 inch/127 mm Hg Operating Temperatures 36°F –... -
Page 5: Complete Parts List
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 5 Complete Parts List Note: Pelican supplies the parts below to accommodate a variety of water supply lines. Table 1: Parts List Part Description Qty. Part Description Qty. - Page 6 CANNO T BE REPRO DUCED O R USED TO Water Systems MANUFACTURE ANYTHING SHO WN O R REFERRED 1-877-842-1635 INSTALLATION OVERVIEW TO WITHO UT DIRECT WRITIEN PERMISSIO N FROM wm1. pe l i canwater. com PELICAN WATER SYSTEMS. SINGL E TANK SYST...
-
Page 7: Installation Overview
The Bypass Valve comes pre-assembled and ready to install with the O-Rings, Split Rings, and Quick Connect Nuts. Push the Bypass Valve into the head of the Pelican Whole House Salt Free Water Softener with the unthreaded ends oriented toward the tanks and hand-tighten the Quick Connect Nuts. -
Page 8: Installation
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 7 Installation Sediment Filter Assembly Sediment Filter Cover Sediment Filter O-Ring Blue Filter Housing Stand Pipe Figure 3 1. Unscrew the cover from the Blue Filter Housing. 2. Remove the plastic covering from the Sediment Filter. -
Page 9: Whole House Salt Free Water Softener/Conditioner Tank Installation
Page 8 Whole House Salt Free Water Softener/Conditioner Tank Installation 1. Level the Pelican Whole House Salt Free Water Softener. Notice: If the tank is not level, lift the tank straight up 6 inches and tap it on the ground until the tank stands vertical. -
Page 10: Bypass Valve Operations
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 9 Bypass Valve Operations In Service Figure A Figure A shows the system "in service" which allows water to flow in and out of the tank. In this position the system would be considered... -
Page 11: Media Soak
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 10 Media Soak Wall Wall Sediment Filter Outgoing Incoming Water to Water House Supply Bypass Mode Salt Free Water Softener/Conditioner Figure 6 1. Open a cold water faucet or test spigot close to the downstream of the Water Softener. -
Page 12: Complete The Installation
2. Peel off the protective plastic wrap from the stainless steel tank jackets. 3. Add the Pelican logo sticker in the desired location on the tank. 4. Wax stainless steel tank jacket(s) with wax provided or any other non-abrasive auto wax a minimum of 1-2 times per year or as needed based on the installed environment. -
Page 13: What To Expect With Your New Natursoft Salt Free Water Softener/Conditioner
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 12 What to Expect with your New NaturSoft Salt Free Water Softener/Conditioner If you have never had a water softener: Immediately after the installation you will experience naturally soft water. All detergents will work better with treated water and you will be able to reduce the amount you use. - Page 14 NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 13 If you have a dishwasher: Generally, the NS3/NS6 NaturSoft system removes mineral hardness from solution and forms micro crystals; it does not physically remove the natural minerals from the water. Harsh chemicals, specifically acidic (low pH) detergents or rinse agents, can re-dissolve these crystals.
-
Page 15: Maintenance
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 14 Maintenance Sediment Filter It is recommended that the Sediment Filter be replaced every 6-9 months depending on the amount of sediment present in the water supply. If the system has been working properly and the pressure is slowing, it may be time to change the Sediment Filter. -
Page 16: Troubleshooting
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 15 Troubleshooting Problem Solution Water leaking at the top of the tank around the head. You may need to turn the head to tighten it. The tank head is pre-installed hand-tight, do not overtighten the head (just turn it snug). -
Page 17: Warranty
These warranties apply only to the original registered owner so long as the owner owns/lives in the home in which the unit was originally installed. Customer must register their system with Pelican within 90 days of purchase* in order to obtain a warranty. Warranty will discontinue after the unit is removed from the location where it was originally installed. -
Page 19: Warranty Registration Form
NS3-6 Rev N — Pelican NaturSoft NS3/NS6 Salt Free Water Softener/Conditioner Page 17 Warranty Registration Form Send in this Warranty Registration Form to validate your warranty or visit www.PelicanWater.com to complete warranty registration form online. Pelican Warranty Registration Form Date Item(s) were Received:... -
Page 21: Product Certifications
Page 18 Product Certifications NS3-NS6- Certified By IAPMO R&T to NSF/ANSI 61 for Material Safety. IS\® The Pelican Natursoft is DVGW DW-9191 Certified for 99.6% scale prevention. © 2019 Enviro Water Solutions, LLC www.pelicanwater.com 3060 Performance Circle, Suite 2, DeLand, FL 32724...
