Sea-doo SEASCOOTER AQUA RANGER SD95001 User Manual

Hide thumbs

Advertisement

Table of Contents

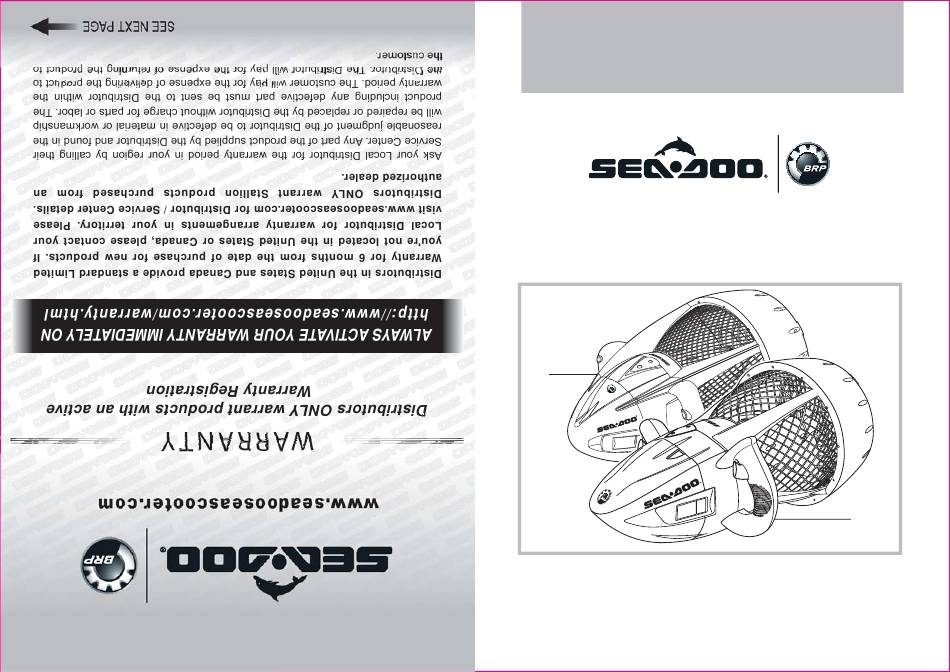

User Manual
English Version
SDPxxxxx
SEA-DOO
SEASCOOTER™ DOLPHIN
®
Model no. SD5542
SEA-DOO
®
SEASCOOTER™ AQUA RANGER
Model no. SD95001
DOLPHIN
AQUA RANGER
CAUTION
ELECTRICALLY OPERATED PRODUCT
Not recommended for children under 8 years of age. As with all
electrical products, precautions should be observed during handling
to reduce the risk of electric shock.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEASCOOTER AQUA RANGER SD95001 and is the answer not in the manual?

Questions and answers

Related Manuals for Sea-doo SEASCOOTER AQUA RANGER SD95001

Summary of Contents for Sea-doo SEASCOOTER AQUA RANGER SD95001

  • Page 1 User Manual English Version SDPxxxxx SEA-DOO SEASCOOTER™ DOLPHIN ® Model no. SD5542 SEA-DOO ® SEASCOOTER™ AQUA RANGER Model no. SD95001 DOLPHIN AQUA RANGER CAUTION ELECTRICALLY OPERATED PRODUCT Not recommended for children under 8 years of age. As with all electrical products, precautions should be observed during handling...

  • Page 2: Table Of Contents

    FCC Statement Contents ( F o r U S A R e g u l a t i o n O n l y ) Introduction This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : Parts diagram (1) This device may not cause harmful interference, and (2) This device must accept any interference received,...

  • Page 3: Introduction

    Introduction Parts Diagram ® Thank having chosen SEA-DOO SEASCOOTER Dolphin / Aqua Ranger. ™ The Dolphin / Aqua Ranger adds a new dimension of fun and excitement to swimming and snorkeling. Use in a pool or in calm water and close to shore – DO NOT use in the open sea.

  • Page 4: Warnings

    Warning • This is not a life saving device. • Be careful when you are transporting the Seascooter and setting it down to avoid crushing hazard on hands, foot or toes. • Crushing / Cutting Hazard • Read the user's manual carefully before use. AQUA RANGER Fig.2 Nose Cone...
  • Page 5 • ALWAYS keep the SEA-DOO® SEASCOOTER™ out of direct sunlight when not in use. HEAT KILLS BATTERIES AND IT MAY EXPLODE OR LEAK. • DO NOT store the battery in the unit.

  • Page 6: Fit The Rubber Seal

    FIT RUBBER SEAL BEFORE FIRST USE! STEP 2 Fig.3b CRUSHING HAZARD: The following action during assembly, disassembly, and transportation of the seascooter may incur crushing hazards to your fingers or toes: -Closing the nose cone latches -Putting on the nose cone housing -Placing the battery into the seascooter -Accidental dropping of the seascooter or battery.
  • Page 7 AQUA RANGER STEP 2 Fig.4b STEP 1 Fig.4a STEP 2 Fig.4b Silicone Grease Sealing Surface O-ring Seal 1. Unlock latches and remove Nose Cone. 2. Rubber seal must be fitted as shown and fully lubricated with the supplied grease EVERYTIME before replacing the nose cone.

  • Page 8: Getting Started

    Getting Started Battery Use ® When you buy the SEA-DOO SEASCOOTER DOLPHIN / ™ AQUA RANGER the battery is disconnected and needs to be charged. Follow the safety cautions on pages 12, 13, 14 and 15 and charging instructions on pages 16, 17 and 18.
  • Page 9 • Always remove the battery from the battery housing before charging. • Do not attach the battery in your SEA-DOO ® SEASCOOTER until prior to using it.

  • Page 10: Charging The Battery

    1. Always ensure that the Safety Lock in the Off position is • If the battery is not to be used for an extended period, Off - see fig. 5b. store it in a well ventilated area away from children, 2. Always ensure that the SEA-DOO ® SEASCOOTER ™...
  • Page 11 14. Make sure the seal and sealing surfaces are clean and fully Press here to release and pull to disconnect lubricated with the supplied grease EVERYTIME (you can also buy this at your local hardware store) before replacing the Nose Cone. See fig. 8. 15.

  • Page 12: Care & Maintenance

    ® • The battery supplied with your SEA-DOO ® ALWAYS remove the battery from the SEA-DOO SEASCOOTER should last about 200 cycles or two ™ SEASCOOTER immediately after use. ™ years before it should be replaced. Please contact your local customer service center/distributor. Using a battery DO NOT STORE BATTERY IN SEASCOOTER.

  • Page 13: Trouble Shooting

    Trouble Shooting Unit does not function If the motor does not start when both triggers are pressed, make sure: 1. The battery is properly connected 2. The battery is fully charged (see page 16, charging the battery) Fig.11 3. The Safety Lock is in the "On" position (see fig 5a, page 11) 5.
  • Page 14 Sand or Grit on Seal Ensure that sand/grit does not get on the seals as correct maintenance and care is essential. To remove sand or grit from the seals, rinse the seals in fresh water and apply fresh lubricant. If there is sand inside the Battery Housing, gently brush the sand from the unit taking care not to Drive Pin In Position scratch the sealing surfaces.

  • Page 15: Technical Specifications

    SEA-DOO and the BRP logo are trademarks ® of Bombardier Recreational Products Inc. or its affiliates, used under licence by Stallion sport Ltd. For more information on SEA-DOO products visit www.sea-doo.com ®...
