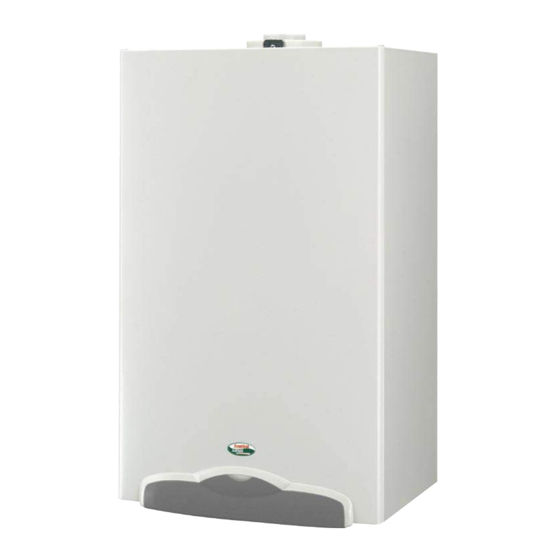

- Page 1 IST 03 C 234 - 01 TAHITI CONDENSING INSTALLATION USE AND MAINTENANCE...
- Page 2 Dear Customer, Thank You for choosing and buying one of our boilers. Please read these instructions carefully in order to properly install, operate, and maintain the equipment.
-
Page 3: General Information For The Installer, Maintenance Technician And User
General information for fitters, maintenance technicians and users This INSTRUCTION MANUAL, which is an integral and indispensable part of the product, must be handed over to the user by the in- staller and must be kept in a safe place for future reference. The manual must accompany the boiler should it be sold or its possession transferred. -
Page 4: Table Of Contents
CONTENTS Warnings page 2 General information for the installer, maintenance technician and user page 3 1. Instructions for the User page 6 1.1. Control panel page 6 1.2. Operating the boiler page 8 1.2.1. Switching on page 8 1.2.2. Operation page 8 1.2.3. - Page 5 PICTURE INDEX pic. 1 - Control panel page pic. 2 - Loading tap page 10 pic. 3 - Dimensions page 14 pic. 4 - KC model hydraulic layout page 15 pic. 5 - KR model hydraulic layout page 15 pic. 6 - Installation template page 20 pic.
-
Page 6: Warnings
1. Instructions for the user 1.1. Control panel pic. 1 - Control panel 1. Power LED (green) 9. Boiler operation mode selector The LED indicates that electric power is being supplied to the When the selector is set to OFF, the boiler is in stand-by. boiler. -
Page 7: No. 1 Chart - Correlation Between Led Signalling - Boiler Status When Boiler Is In Operation
CORRELATION BETWEEN LED SIGNALLING – BOILER STATUS Normal boiler operation LED 1 LED 2 LED 3 LED 4 LED 5 LED 6 LED 7 LED 8 Boiler powered on GREEN Flame presence GREEN YELLOW CH water temp. ≤ 25°C GREEN 26°C <... -
Page 8: Operating The Boiler
1.2. Operating the boiler 1.2.1. Switching on The following procedure is to be implemented only after the boiler is installed and tested by a qualified fitter. • Open the gas stop cock; • turn ON the power switch external to the boiler (no. 1 LED turns on); •... -
Page 9: External Temperature Probe Operation (Optional Equipment)
ANTI-FROST The boiler is equipped with anti-frost function, which is active in SUMMER/WINTER/ANTI-FROST modes. When central heating water temperature sensor detects a water temperature of 5°C, the boiler is switched on and stays on at minimum heat output until central heating water temperature reaches 30°C or 15 minutes have elapsed. Should boiler shut down, pump operation is still granted. -
Page 10: Boiler Shutdown
1.3. Boiler shut-down Should any malfunction occur, boiler automatically shuts down. Refer to no. 1 and no. 2 charts (on page 7) for boiler status detection. In order to detect the probable malfunction causes, see, in addition to no. 2 chart, no. 7 “Troubleshooting” paragraph at the end of the manual, as well. -
Page 11: Shut-Down Due To Inadequate Air/Flue Gas Draught (Flue Gas Shutdown)
1.3.4. Shut-down due to inadequate air/flue gas draught Should the boiler shut down due to air intake and/or flue gas discharge ducts malfunction, no. 4 LED (pic. 1) starts flashing. Should that happen, contact an authorized Service Centre or qualified personnel for service. 1.3.5. -
Page 12: Technical Characteristics And Dimensions
2. Technical characteristics and dimensions 2.1. Technical characteristics The boiler is equipped with a fully pre-mixed gas burner. The following models are available: KC: condensing boiler with sealed chamber and forced draught, supplying CH water and instant DHW; KR: condensing boiler with sealed chamber and forced draught, supplying CH water; Both models are available in the following heat outputs: KC 24 and KR 24 = 23.7 kW. - Page 13 Operating characteristics - CH mode electronic flame modulation, timer controlled flame rising ramp (50 seconds) - DHW mode electronic flame modulation (KC and KR with external cylinder) - DHW priority function (KC and KR with external cylinder) - Flow anti-frost function: ON at 5°C; OFF at 30°C or after 15 minutes operation when CH water > 5°C - DHW anti-frost function (KC): ON at 5°C;...
-
Page 14: Dimensions
2.2. Dimensions Bottom view Top view Condensate drain Water mains intake Gas intake Inspection trap plug CH system flow DHW flow (KC model only) 3-bar safety valve drain cock Filling tap CH system return Drain cock pic. 3 - Dimensions... -
Page 15: Hydraulic Layouts
2.3. Hydraulic layouts Condensate drain siphon Modulating gas valve Safety thermostat CH temperature probe Modulating fan Primary fluid flow meter Primary condensing exchanger Ignition electrode Air purging device 10. Combustion air intake system 11. Flue gas discharge system 12. Flue gas analysis ports 13. -
Page 16: Operating Data
2.4. Operating data Burner pressures must be verified after a three minute boiler operation time KC 24 Max. CH Gas mains Flue gas output output Function input output pressure (80-60°C) (50-30°C) (kW) (kW) (mbar) [kW] [kW] Methane Gas G20 23.7 22.7 24.8 28.0... -
Page 17: General Characteristics
2.5. General characteristics KC MODEL KC 24 KC 32 Equipment category II2H3P II2H3P Minimum CH system pressure Maximum CH system pressure Minimum DHW system pressure Maximum DHW system pressure DHW specific flow rate (∆t 30 °C) l/min 13.4 16.9 Electric power supply – voltage / frequency V - Hz 230 - 50 230 - 50 Power mains supply fuse... -
Page 18: No. 10 Chart - Kr Model General Specifications
KR MODEL KR 24 KR 32 Equipment category II2H3P II2H3P Minimum CH system pressure Maximum CH system pressure Electric power supply – voltage / frequency V - Hz 230 - 50 230 - 50 Fuse Maximum power consumption Electric protection rating Net weight 37.5 39.0... -
Page 19: Instructions For The Fitter
3. Instructions for the fitter 3.1. Installation standards This is an II2H3P category boiler and must be installed in compliance with laws and standards enforced in the country of installation, which are herein considered as entirely transcribed. 3.2. Installation Accessories and spare parts for installation and service procedures are to be supplied by the Manufacturer. Should non original accessories and spare parts be employed, boiler proper performance is not guaranteed. -
Page 20: Positioning The Boiler
3.2.3. Positioning the boiler Each boiler is supplied with a paper template (pic. 6), within its packa- ging, allowing arrangement of CH pipe system, DHW pipe system, gas supply pipe system and air intake/flue gas discharge system before actually installing the boiler. The template is made of heavy-duty paper, it is to be affixed to the wall where the boiler is to be mounted using a carpenter’s level. -
Page 21: Boiler Room Ventilation
3.2.5. Boiler room ventilation The boiler has sealed combustion chamber. Combustion air is not drawn from boiler room therefore specific recommendations need not to be applied concerning the boiler room or openings and ventilation provided to the boiler room. It is mandatory to install the boiler in an adequate room following laws and standards applicable in the country of installation, which are considered as fully transcribed in this manual. -
Page 22: Air/Flue Gas System Duct Configuration
3.2.6.1. Air/flue gas system duct configuration Type B23 Boiler intended for connection to an existing flue system external to the boiler room. Combustion air is taken directly from the boiler room itself while flue gas is conveyed to the outside. The boiler is not to be fitted by anti-wind gust device;... -
Page 23: 100/60 Mm And 125/80 Mm Air/Flue Gas Coaxial Duct System
3.2.6.2. Ø 100/60 mm and Ø 125/80 mm air/flue gas coaxial duct system Type C13 KC 24 and KR 24 Minimum permissible length of horizontal coaxial pipes is 1 meter, without accounting for the first elbow connected to the boiler. Maximum permissible length of Ø... -
Page 24: Mm Air/Flue Gas Split Duct System
3.2.6.3. Ø 80 mm air/flue gas split duct system Installation types C43 – C53 – C83 Minimum permissible length of air intake pipe is 1 meter. Minimum permissible length of flue gas discharge pipe is 1 meter. Maximum permissible length of air intake/flue gas discharge pipes is 120 meters (combined length of air intake and flue gas discharge pipe length). -
Page 25: Measurements
3.2.7.2. Measurements The boiler is equipped with a tower allowing for air intake/flue gas discharge duct connection (pic. 14 and pic. 15). The tower is designed with two pre-arranged openings directly accessing air and flue gas ducts (pic. 15). Remove cap A from the pre-arranged openings on the tower, before starting combustion checking procedure (pic. 14). In order to verify combustion performance the following measurements must be implemented: - assess combustion air from no. -
Page 26: Gas Main Connection
3.2.8. Gas main connection Gas supply pipe cross-section must be equal or greater than boiler gas pipe. Cross-section gas pipe size calculation depends on its length, layout pattern, gas flow rate. Gas pipe size is to be dimensioned accordingly. Comply with installation standards enforced in the installation country which are considered as fully transcribed in this booklet. Remember that before operating an indoor gas distribution system and before connecting it to a meter, it must be checked for leaks. -
Page 27: Power Main Connection
CONDENSATE DRAIN Comply with condensate drain laws and standards applicable in the country of installation and which are considered herein integrally tran- scribed. When the law is not stating differently, the condensate produced by combustion, is to be routed (via the condensate drain S in pic. 3) through a discharge system connected to the domestic sewer, which due to its basicity, counteracts flue gas condensate acidity. -
Page 28: Room Thermostat Connection (Optional Equipment)
3.2.12. Room thermostat connection (optional equipment) The boiler can be connected to a room thermostat (not supplied with the boiler). Room thermostat contacts are to be connected to M9 position of the boiler printed circuit board (pic. 21), after removal of the jumper which is delivered as standard fitting to the boiler. Room thermostat wiring must not be grouped together with power mains supply cables. -
Page 29: External Temperature Probe Installation (Optional Equipment) And "Sliding Temperature" Operation
3.2.14. External temperature probe installation (optional equipment) and “sliding temperature” operation The boiler can be connected to an external temperature probe (optional equipment), which adjusts CH flow temperature for sliding tem- perature operation. The manufacturer supplies two probe models: - 0KSONEST00: external probe for connection to the remote control; - 0SONDAES01: external probe for direct connection to the boiler;... -
Page 30: Phone Operation Device Installation (Optional Equipment)
Above shown curves, relative to a 20°C desired room temperature, are always limited between minimum and maximum value of Ch ope- ration temperature range. When 20°C fictitious room temperature is changed (via adjuster 11), all curves move correspondingly. 3.2.15. Phone operation device installation (optional equipment) The boiler can be connected to a phone operation device (not provided with the boiler), allowing for CH mode activation via phone. -
Page 31: Starting The Boiler
3.4. Starting the boiler 3.4.1. Preliminary checks Before starting the boiler it is necessary to perform the following checks: - flue gas exhaust pipe and terminal are installed as instructed: when the boiler is running no products generated by combustion are to leak from any gasket;... -
Page 32: Electric Diagram
3.5. Wiring diagram pic. 21 - Electric layout... -
Page 33: Adaptation To Other Gases And Burner Adjustment
CHART TO PIC. 21 ACRONYMS external temperature probe probe equipped external water tank 0SONDAES01 10k Ohm B = 3977 (remove R1) F2 PIA: mono-thermal heat exchanger (Option) boiler probe to be BM120: external water tank equipped with boiler connected to the boiler electronic bulb probe thermostat (remove P1) F3 RIS: CH only boiler... -
Page 34: Pic. 22 - Adaptation To Other Gas Types
B) Minimum heating output adjustment - set heating output adjuster maxR (pic. 13) to minimum (turn it fully counter-clockwise after removing the protective cap); - adjust CO in flue gas by turning offset adjuster C (pic. 23) and verify CO to be within the range stated in no. -
Page 35: Testing The Boiler
4. Testing the boiler 4.1. Preliminary checks Before testing the boiler, it is recommended to carry out the following checks: - compliance of flue gas discharge ducts and terminal installation according to instructions: when the boiler is operating no products generated by combustion are to leak from any gasket; - power mains supply to boiler is 230 V –... -
Page 36: Troubleshooting
6. Troubleshooting BOILER STATUS MALFUNCTION PROBABLE CAUSE SOLUTION Check gas pressure. Gas supply failure Check gas stopcocks to be open and gas network safety valve intervention. Burner does not ignite Gas valve is disconnected Reconnect it Gas valve is faulty Replace it PCB is faulty Replace it... - Page 37 BOILER STATUS MALFUNCTION PROBABLE CAUSE SOLUTION No. 2 (red) and no. 8 (yellow) LEDs are Flow probe is disconnected Reconnect it alternatively flashing (in KR boilers with external cylinder equipped by NTC Cylinder probe is not operating probe). Boiler will automatically resume operation Flow probe is faulty Replace it as soon as malfunction ends...
- Page 40 Tel. +39 0365 878 31 - Fax +39 0365 878 576 e mail: info@fondital.it - www.fondital.it The manufacturer reserves the right to modify the data contained herein at any time without notice. Uff. Pubblicità Fondital IST 03 C 234 - 01 Gennaio 2007 (01/2007)
