Lorell LLR87624 Manual

Post Parts
A1 A2 A3 A4 A5
Mounting Plate
Divider Post Cover Strip Threaded Rod Top Cap
1Pc 3Pcs 1Pc 1Pc
Panel Parts
B1 B2 B3 B4 B5
Bottom Accessory Bottom Accessory
Top Accessory Rail
Rail for Main Panel Rail for Filler Panel
Main Panel Filler Panel
for Main Panel
1Pc 1Pc 1Pc 1Pc
Straight Transaction Tops Parts
C1 C2 C3 C4
Straight Transaction Top
Transaction Tops Flat Plate Screw #4 x " Pad
5
8
1Pc 2Pcs 8Pcs 2Pcs
Corner Transaction Tops Parts
D5
D1 D2 D3 D4
Corner Transaction Top
Flat Plate Screw #4 x "
Transaction Tops Hole Cover
5
8
1Pc 2Pcs 8Pcs 2Pcs
IMPORTANT NOTE:
Suggest to use the tool Drill to attach the "post mounting plate" to the top of the work surface.
Please ensure the "Post Mounting Plate" is straight and aligned to ensure connection.
Divider Post is bolted to the Mounting Plate.
Align accessory rail is straight with leveling tool when inserted into the two side post.
Top Cap is attached to the top of the Divider Post.
Hole Cover is attached to the top of the Corner Transaction Tops.
A6 A7 A8 A9
Post
Washer Locking Nut Screw #4 x 1- " Spanner
3
16
1Pc 1Pc 4Pcs 1Pc
1Pc
B6
Top Accessory Rail
for Filler Panel
1Pc 1Pc
Cover Strip
Pad
2Pcs
Transaction Top
Flat Plate
A10
Location Label
1Pc
Corner Transaction Tops

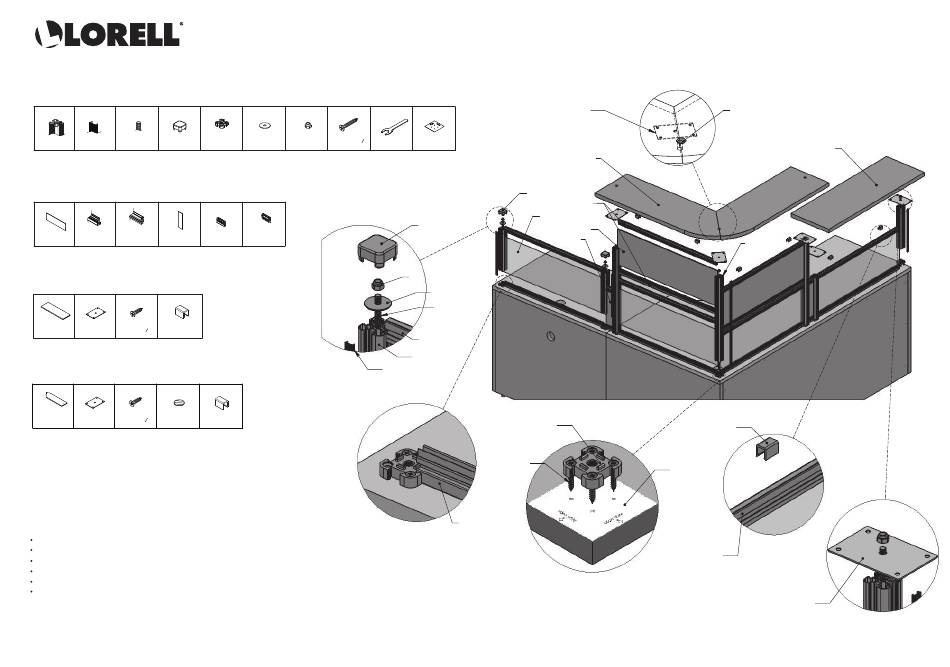

Top Cap
Accessory Rail (built in)
Glazed Panel
Top Cap
Fabric Panel
Filler panel
Locking Nut
Washer
Threaded Rod
Top Accessory Rail
Divider Post
Post Mounting Plate
Screws
Bottom Accessory Rail
Divider Panel Assembly
Hole Cover
Straight Transaction Tops
Divider Post
Pad
Location Label
Accessory Rail
Transaction Top
Flat Plate
