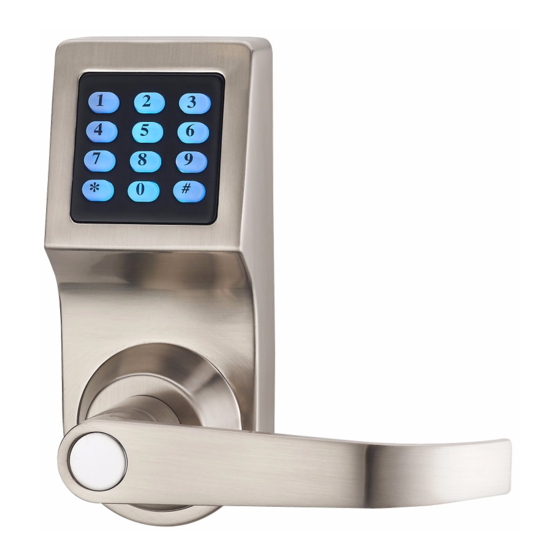

- Page 1 HAIFUAN D6300 Series User Manual...
- Page 2 Technical Parameters Product Type HFAD6300-R, HFAD6300-L , HFAD6300-FR, HFAD6300-F Dimensions 6.1”*2.55”*4.92”(155*65*125MM) Material Zinc Alloy Weight 4.4LBS (2KG) Operating Voltage DC6V，4* 1.5V“AA”Alkaline Batteries Static Current ≤20µA Dynamic Current ≤200mA Ways to open Password, Mechanical key, M1 Card, Remote control, Fingerprint User Capacity Different for each model, check 3.1 for details...
- Page 3 Part 2: Installation Instructions 2.1 Drilling holes 1、 Drill holes according to the drilling template 2、 Drill holes on the door frame to install strike plate 2.2 Install latch and strike plate 1、 Fix the lock on the door broadside with two screws 2、...
- Page 4 2.5 Install back panel 1、 Remove battery cover 2、 Connect data line of the front and back panel 3、 Fix the back panel with 3 fixing screws. 4、 Make adjustment if necessary, fasten the screws 2.6 Install batteries 1、 Put 4 AA batteries into the battery case and pay attention to the directions.
- Page 5 Admin: code (fingerprint, card or remote control cannot be used as admin) User: card, code(6-10digits), fingerprint(fingerprint version), remote control(remote control version) User Capacity: HFAD6300-R, 1 admin code, 100 codes, 800 cards, 120 remote controls HFAD6300-L, 1 admin code, 100 codes, 800 cards,...
- Page 6 Users can change their codes by their own Success Input code+ (don’t turn handle) New code+ Delete Single user： Input Code/Fingerprint/ “ ”+“ ” Admin Code+ Remote control/Card Delete All users： All user delete successful “ ”+“ ” Admin Code+ Passage Mode setting 1-start ，...
- Page 7 Others Admin User can set a new Admin code by revision. After the revision, the new Admin will replace the old one. (the new Admin code will replace the old one) When entering the Passage Mode, the motor will not lock the door automatically after unlocking by ...
