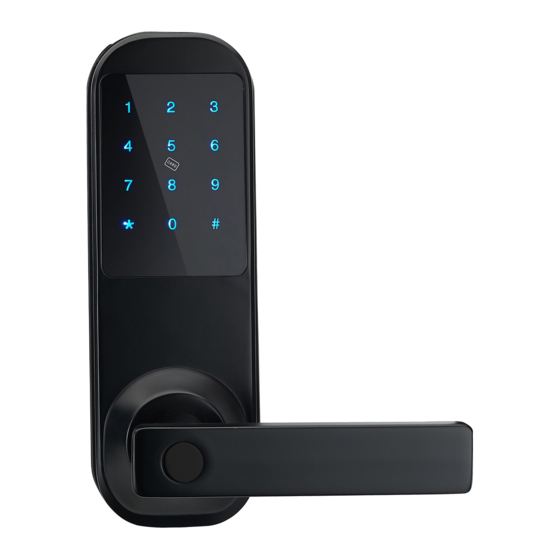

- Page 1 HAIFUAN HFAM10B-L-NB Bluetooth User Manual...
-
Page 2: Technical Parameters
Technical Parameters Product Type HFAM10B-L-NB Dimensions 8.27”*2.76”*4.53”(210*70*115MM) Communication Methods Bluetooth 5.0 BLE Supporting systems Android 4.3/ISO7.0 above Working Temperature -20~60 Celsius (-4~140 Fahrenheit) Material Zinc Alloy Weight 5.5LBS (2.5KG) Operating Voltage 4* 1.5V“AA”Alkaline Batteries Low Battery Voltage 4.8V Static Current ≤60µA... -
Page 3: Part 2: Installation Instructions
Part 2: Installation Instructions 2.1 Drilling holes 1、 Drill holes according to drilling template 2、 Drill holes on the door frame to install strike plate 2.2 Install latch and strike plate 1、 Fix latch on the door broadside with two screws 2、... - Page 4 2.4 Install front panel 1、 Place water proof rubber under front panel, Install front panel, pull the connect data line through the hole 2.5 Install back inner plate 1、 Place water proof rubber under back inner plate, Fix 3 screws 2、...
-
Page 5: System Operation
System Operation 3.1 Outline Admin code: default admin code: 123456 User Capacity: 200 cards(13.56Mhz mifare card), 150 code users(4-9 digits), unlimited app users The lock can be operated on keypad or by app via bluetooth, if gateway is installed(the gateway is not included in the lock package, require additional purchase), it can be operated remotely(check 4.3 for details ) 3.2 System Initialization Default admin code is “123456”. - Page 6 4.2 Login in TTLOCK(Turn Bluetooth On) 4.2.1 Register app This app support more than 200 countries. Can be registered by phone number or email. 4.2.2 Connect lock with app(Turn Bluetooth on) Step:1 click on the left up corner button to show the page on step 2 Step:2 click on add locks Step:3 click on door locks Step:4 click on next...
- Page 7 4.2.3 Unlock by app Tap on the lock just added, tap the lock button to unlock (make sure the Bluetooth is turned on) 4.2.4 4.2.5 4.2.6 4.2.7 4.2.8 4.2.9 4.2.10 4.2.4 Send ekey We can send timed, permanent, one-time, or cyclic ekey to others, The recipient should also registered this app, when the ekey is sent, The recipient will be able to login in the app to unlock the device.
- Page 8 4.2.5 Generate Passcode We can generate varies types of codes, such as permanent, timed, one-time ,Erase, customized, Or cyclic codes, and we can also send the code to others by wechat, SMS,Email, Messager,or Whatsapp 4.2.6 Manage Ekeys, All ekey information is shown on this page, we can clear ekey, reset it, and send ekey to others on this page 4.2.7 Manage Passcodes...
- Page 9 4.2.8Manage IC Cards All card information is shown on this page, We can clear card, add card, or upload Card information on this page(such as we program a Card on keypad, then upload it to app, check 5.3 for details The upload function is only effective when the Lock already connect with the app, and codes generated on keypad is later than the connection)
- Page 10 4.3 Install Gateway for remote control (An extra gateway is required for this step, after installation, the lock can be operated in a long distance where Wifi or 4G is available, and it will be able to work with alexa, check 4.4) Follow these photos to add a gateway for the lock Step 1: login TTLOCK app, click the left up corner button to show the page, click setting Step2: click on gateway...
- Page 11 Step8 Step8 4.4 Work with alexa( Must install gate first and enable remote control) Check the following photos to know about the process Step1: login alexa app and click on the left up corner to show the page on step 2 Step2: click on Skills &...
- Page 12 Step1 Step2 Step3 Step4 Step7 Step8 Step5 Step6 Step9 Step10 Step11...
- Page 13 5. Operation On Keypad 5.1 change admin code user via keypad Input *12#→ original master code(123456) #→new master code(4-9 digits) #→new master code again# Original master New Master Code New Master code(4-9 code(123456) + digits) + again+ 5.2 add users codes via keypad Input *85#→new master code#→user code(4-9 digits)#→user code(4-9 digits)# user code(4-9 digits) New master code +...
- Page 14 5.7 add app user Input *83#→new master code#→login in app to add this device(check 4.2.1) Login app to add New master code + this device (Note: all the codes and cards added before connection with app will be deleted except for admin code, you can add new codes or cards on app now.
-
