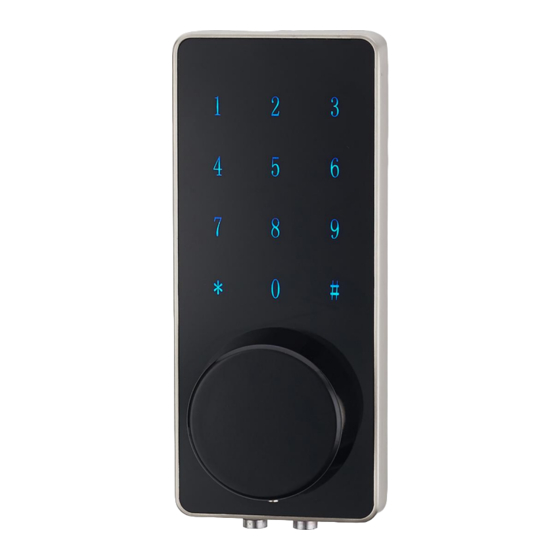

Haifuan S100BMF User Manual
  1. Manuals
  2. Brands
  3. Haifuan Manuals
  4. Locks
  5. S100BMF
  6. User manual

Haifuan S100BMF User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HAIFUAN
S100BMF USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the S100BMF and is the answer not in the manual?

Questions and answers

Related Manuals for Haifuan S100BMF

Summary of Contents for Haifuan S100BMF

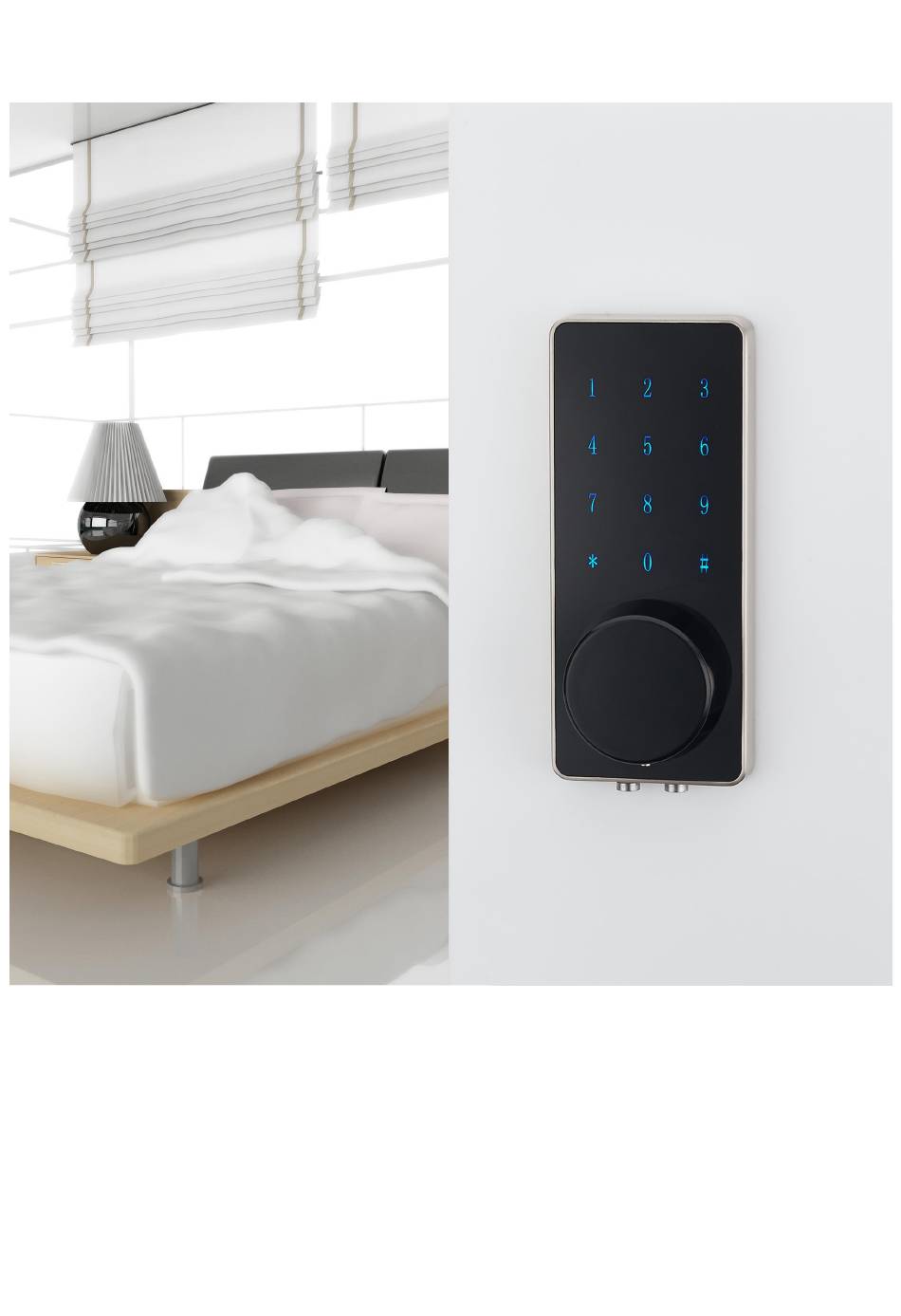

  • Page 1 HAIFUAN S100BMF USER MANUAL...

  • Page 2: Product Instruction

    1. Product instruction Item No. HFAS100BMF / HFAS100BRM Dimension 137*60*12MM / 5.39 X 2.36 X 0.47” Material Zinc Alloy Weight 1kgs / 2.2 pounds 1.1 Standard Single latch : Backset is adjustable between 60mm(2-3/8”) and 70mm(2-3/4”)
  • Page 3 1.2 Technical Specification Card type Mifare-1 Card(13.56Mhz Frequency) Card inductive distance 3cm / 1.18” Unlock method Card, Code, Code + Card, Mechanical key Code length 4-8 digits User capacity 130 users Power supply 4pcs AA batteries / CR2032 3V(remote control version) ≤30uA Static current ≤200mA...

  • Page 4: Drill Holes

    2.1 Drill Holes 2.1.1 Measure up approximately 36”from the door bottom. Apply template to the door edge. Mark center of door edge as indicated on template. 2.1.2 Mark center hole on door face through guide on template for 2-3/8”(60mm) or 2-3/4”(70mm) basket. 2.1.3 Drill 2”or 2-1/8”hole through door face as marked for lockset.
  • Page 5 2.4.Install Inner Back Plate 2.4.1 Install the inner back plate with three screws. 2.4.2 Pull the data line out. 2.5.Install Back Plate 2.5.1 Connect the data line to back plate. 2.5.2 Fix back plate with three screws 2.5.3 Install 4*AA alkaline batteries. 2.5.4 Put the battery case on.
  • Page 6 3 Operating Instruction 3.1 Reset the Master Code Operating steps Locks status Remove all the batteries and remove the back panel from door, put all the batteries none back and keep the data line connected with the front panel. Remove one battery then put it back You will hear a beep Turn the L/R switch to opposite position You will hear four beeps if operation successful.
  • Page 7 5 Press “#” 2 times. First “#” “beep” twice, Second ”#” “beep” 3 times, Code added successful. 6 After 15 seconds, or press”#”, Exit Long time of ”beeps”, indicator light extinguish. Open door operation Operating steps Locks status Input “Code” then “#” You will hear one beep, and indicator light keeps in blue, you can also hear the sound of lock motor started, turn the handle to open the door.
  • Page 8 3.6. Add Code and Card Combination User Operating steps Locks status 1 Input the “Master Code” then “#” You will hear two beeps. 2 Input “01” then “#” within 10 seconds(before the You will hear two beeps. indicator light extinguishes ) “group number”...
  • Page 9 4 After 15 seconds, or press”#”, Exit Long time of ”beeps” ,indicator light extinguish. 4.2. Normal User Re-start.（03#） Operating steps Locks status 1 Input the “Master Code” then “#” You will hear two beeps. 2 Input “03” then “#” within 10 seconds(before the You will hear two beeps.
  • Page 10 Video Instruction Video content link 1 Installation and operation for 200MF/TM https://youtu.be/NYlfbNyv5-c 2 Program code and remote control for S200RM https://youtu.be/0vlkxHAVBu0...
