  • Page 2: Product Instruction

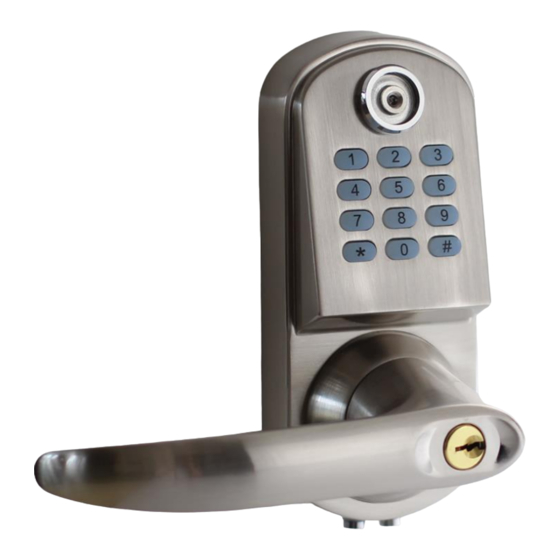

    1. Product instruction Item No. S200MF / S200TM Dimension 155X68*78MM / 6.1 X 2.72 X 3.07” Material Zinc Alloy Weight 2.3 kgs / 5 pounds 1.1 Standard Single latch : Backset is adjustable between 60mm(2-3/8”) and 70mm(2-3/4”)
  • Page 3 1.2 Technical Specification Card type Mifare-1 Card(S200MF) / TM Card(S200TM) Card inductive distance 3cm / 1.18” Unlock method Card, Code, Code + Card, Mechanical key Code length 4-8 digits User capacity 200 users Power supply 4pcs AA batteries / CR2032 3V(remote control version) ≤30uA...
  • Page 4 2.1 Drill Holes 2.1.1 Measure up approximately 36”from the door bottom. Apply template to the door edge. Mark center of door edge as indicated on template. 2.1.2 Mark center hole on door face through guide on template for 2-3/8”(60mm) or 2-3/4”(70mm) basket. 2.1.3 Drill 2”or 2-1/8”hole through door face as marked for lockset.
  • Page 5 2.4.Install Front Plate 2.4.1 Place water proof rubber under the front plate. 2.4.2 Install front plate to door, pull the data line through door hole. 2.5.Install Back Plate 2.5.1 Place water proof rubber under the inner back plate. 2.5.2 Install inner back plate to door. Fix three screws. 2.5.3 Connect data line to inner plate.
  • Page 6 3 Operating Instruction 3.1 Reset the Master Code Operating steps Locks status Use screwdriver to move away back When you press the button, you will hear one beep and the panel. You will see a button beneath the front panel indicator light flash red, After 10 seconds, you battery case, press the button for 10 will hear two beeps, and the light change to blue, now the seconds until the front panel indicator...
  • Page 7 You will hear two beeps. seconds before indicator light extinguishes (For S200TM, the card read area is above the number keys, the metal circle area, for S200MF, the card read area is the place where number keys is ) then “#”...
  • Page 8 Open door operation Operating steps Locks status Get the Card close to the card You will hear one beep, and indicator light keeps in blue, you can read area. also hear the sound of lock motor started, turn the handle to open the door.
  • Page 9 4. Normal User Block, Re-start, and Delete （02#） 4.1.Normal User Block： Operating steps Locks status 1 Press “#” to start the lock You will hear two beeps, front light flash blue, and keypad illuminate. 2 Input the “Master Code” then “#” You will hear two beeps.
  • Page 10 5. Add One Time Use Code(The code can only be used once, automatically become invalid after used ) 5.1 Add One Time Use Code（33#） Operating steps Locks presentation 1 Press “#” to start the lock You will hear two beeps, front light flash blue, and keypad illuminate.
