ifm Programming Manual AS-i Gateway AC14 (4.2.x)
Appendix
>

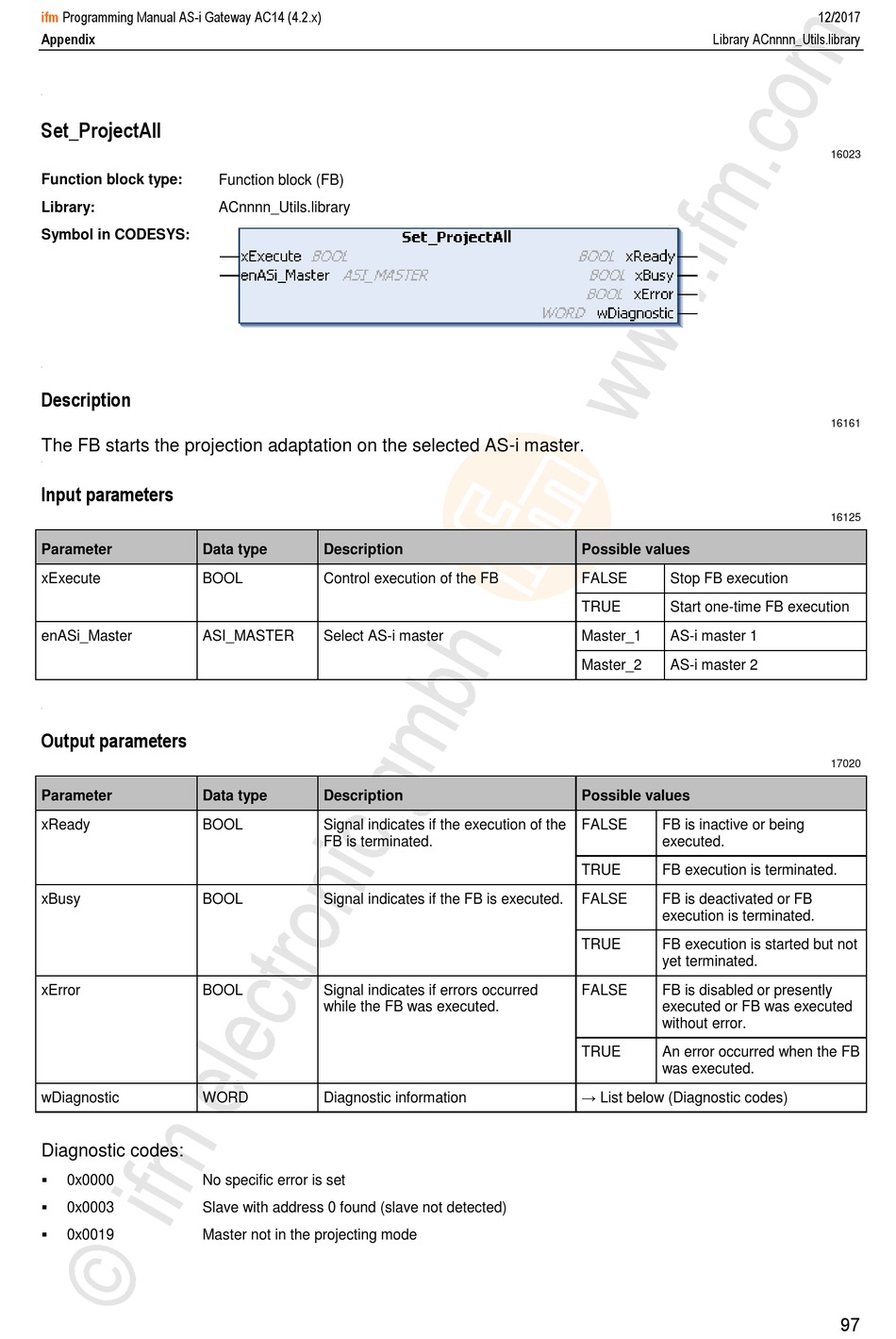

Set_ProjectAll

Function block type:
Library:
Symbol in CODESYS:
>
Description
The FB starts the projection adaptation on the selected AS-i master.
>
Input parameters
Parameter Data type
xExecute BOOL
enASi_Master ASI_MASTER
>
Output parameters
Parameter Data type
xReady BOOL
xBusy BOOL
xError BOOL
wDiagnostic WORD
Diagnostic codes:

0x0000 No specific error is set

0x0003 Slave with address 0 found (slave not detected)

0x0019 Master not in the projecting mode
Function block (FB)
ACnnnn_Utils.library
Description
Control execution of the FB
Select AS-i master
Description
Signal indicates if the execution of the
FB is terminated.
Signal indicates if the FB is executed.
Signal indicates if errors occurred
while the FB was executed.
Diagnostic information
Library ACnnnn_Utils.library
Possible values
FALSE Stop FB execution
TRUE Start one-time FB execution
Master_1 AS-i master 1
Master_2 AS-i master 2
Possible values
FALSE FB is inactive or being
executed.
TRUE FB execution is terminated.
FALSE FB is deactivated or FB
execution is terminated.
TRUE FB execution is started but not
yet terminated.
FALSE FB is disabled or presently
executed or FB was executed
without error.
TRUE An error occurred when the FB
was executed.
→ List below (Diagnostic codes)
12/2017
16023
16161
16125
17020
97
