Operating instructions
GB

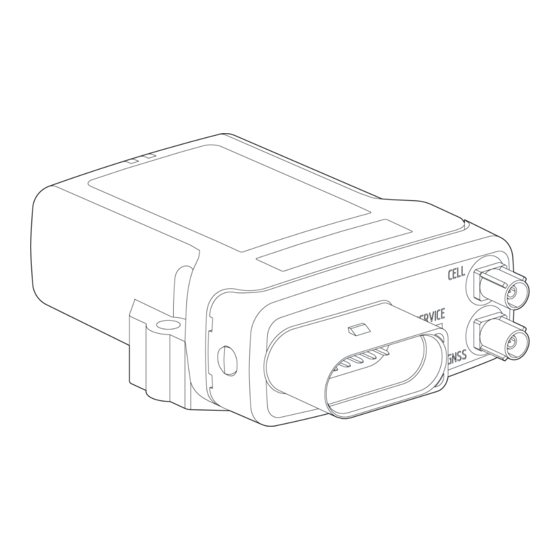

mobileIoT gateway
CR3158
HW version: AB (Rev. 3.0.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR3158 and is the answer not in the manual?

Questions and answers

Related Manuals for IFM CR3158

Summary of Contents for IFM CR3158

  • Page 1 Operating instructions mobileIoT gateway CR3158 HW version: AB (Rev. 3.0.1)

  • Page 2: Table Of Contents

    CR3158 mobileIoT gateway Contents Preliminary note .............

  • Page 3: Preliminary Note

    CR3158 1 Preliminary note You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at www.ifm.com. 1.1 Symbols used Requirement Instructions Reaction, result [...] Designation of keys, buttons or indications...

  • Page 4: Safety Instructions

    CR3158 mobileIoT gateway 2 Safety instructions • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system.

  • Page 5: Intended Use

    CR3158 3 Intended use The unit enables wireless transfer of CAN data of a vehicle or machine according to the GSM, UMTS and LTE standards. GPRS, EDGE and HSPA are supported. It is also possible to receive and transmit GNSS position data.

  • Page 6: Function

    CR3158 mobileIoT gateway 4 Function The device has a buffer capacitor to store the time in the real time clock (RTC). The device provides access to CAN data in various operating modes. Function CR3158 CAN-CAN-Bluetooth/WLAN bridge ● CAN-Bluetooth/WLAN interface ● Antenna...

  • Page 7: Real-Time Mode

    CR3158 Restart the device to update to the newly configured mode. When bit 7 is written, the device restarts. 4.3.1 Real-time mode In real-time mode, bidirectional transmission of CAN messages occurs. The unit can send/receive process data (e.g. machine parameters) via CAN interfaces during operation via Bluetooth/WLAN, the mobile network and the mobileIoT platform.

  • Page 8: Accelerometers And Gyro Sensors

    CR3158 mobileIoT gateway Object Index Subindex Type Default Description IO – clamp 15 0x3333 0x66 — Terminal 15 voltage Raw value of the analogue input measure- ment (Volt) IO – clamp 15 0x3333 0x01 — Terminal 15 (ignition) state 0 = input signal low (< 2.5 V) 1 = input signal high (>...
  • Page 9 CR3158 The data of the acceleration/gyro sensors is accessed via the following objects: Object Index Subindex Type Default Description Acceleration – X- 0x544D 0x00 — Current acceleration X-axis (unit: g) axis Acceleration – Y- 0x544D 0x01 — Current acceleration Y-axis (unit: g) axis Acceleration –...

  • Page 10: Gnss (Global Navigation Satellite System)

    CR3158 mobileIoT gateway 4.6 GNSS (global navigation satellite system) The device has a GNSS receiver. The device can forward the position data determined by the GNSS receiver via the CAN bus or send it via the mobile network. The device can evaluate signals from GPS, GLONASS and BeiDou satellites. Data from two navigation systems can be evaluated simultaneously.

  • Page 11: Automatically Send Gnss Data To The Mobileiot Platform

    CR3158 Object Index Subindex Type Default Description Position BaseID 0x4005 0x04 0x300 COB ID start address for input GNSS data transmission (1s cycle) All data available in the respective device mode are sent via the CAN1 interface. The exact index and subindex can be found in the corresponding EDS file.

  • Page 12: Device Status

    CR3158 mobileIoT gateway Energy management is accessed via the following objects: Object Index Subindex Type Default Description Power manage- 0x3333 0xF3 — If this flag is set, the unit can only be woken ment – deep up from sleep mode via clamp 30, clamp 15 sleep flag or CAN1.

  • Page 13: Compatibility Mode

    CR3158 Object Index Subindex Type Default Description CANMode 0x4001 0x02 — Bit 0: compatibility mode with device CR3114 (1 s cycle) Bit 1: forward device status via CAN bus (1 s cycle) Bit 2: forward complete GNSS data via CAN bus (1 s cycle)

  • Page 14: Can-Can-Bluetooth/Wlan Bridge

    CR3158 mobileIoT gateway The compatibility mode data is mapped to the following CAN messages: Length COB ID Start byte Type Object (bytes) 0x180 + NodeID Network state 0: not connected 1: registered with home network 2: not registered, searching for network...

  • Page 15: Can-Wlan Interface

    CR3158 4.13 CAN-WLAN interface The use as CAN-WLAN-interface allows wireless bidirectional transfer of CAN data to other WLAN capable devices with the support of the Byte Command Protocol. The CAN-WLAN interface provides two operating modes: • Infrastructure mode Data transfer via one or more access points.

  • Page 16: Installation

    CR3158 mobileIoT gateway 5 Installation u Disconnect the power of the machine before installation. The device can be mounted in a horizontal position or with the connectors facing downwards. Installation with the connectors facing upwards is not permitted. The device must be fixed with the rear facing the mounting surface.

  • Page 17: Electrical Connection

    CR3158 6 Electrical connection 6.1 Connectors 1: Micro Timer II connector, 14-pin (CAN, supply, inputs, outputs) 2: USB socket (Micro-AB type) 3: FAKRA connector, D-coded 4: FAKRA connector, C-coded 6.1.1 Operating voltage, CAN interface, inputs and outputs Fig. 2: Micro Timer II connector, 14-pin VCC / clamp 30 (supply)

  • Page 18: Gsm Antenna Connection

    CR3158 mobileIoT gateway 6.1.3 GSM antenna connection Fig. 4: FAKRA connector, D-coded Signal — mobile radio GND — shielding / housing The unit detects an antenna if it has a built-in diagnostic resistor (10 kΩ). 6.1.4 USB connection The USB connection (Micro-AB) is used for diagnostics and updates of the bootloader and firmware.

  • Page 19: Light Indicators

    Priority Meaning If ON LED is also off: The unit is switched off. Green Various Connected with the ifm mobileIoT server. Blue Mobile radio / Inter- Not connected with the ifm mobileIoT server. Orange CAN1 Connection faulty. CAN2 Connection faulty. Magenta GNSS No position/antenna detected.

  • Page 20: Indication Of The Operating Modes

    A configuration update is carried out via the ifm mobileI- oT data portal. STATUS A remote firmware update is carried out via the ifm mo- bileIoT data portal. STATUS Reset of the unit via the slide switch on the D-Sub con- nector (CAN1).

  • Page 21: Set-Up

    To register and activate the unit, access to the mobileIoT suite is required. You will receive the access data from your local ifm contact. The documentation for the mobileIoT suite and for activating the unit can be found in the mobileIoT suite.
  • Page 22 CR3158 mobileIoT gateway Function Index Subindex Description Revert to factory configuration 0x1011 0x01 The factory configuration is restored. All recorded data is de- leted. Delete all log files 0x1011 0x62 All recorded data is deleted. Revert to firmware defaults 0x1011 0x63 The default configuration of the current firmware is restored.

  • Page 23: Repair, Maintenance And Disposal

    9 Repair, maintenance and disposal The unit is maintenance-free. u Contact ifm in case of malfunction. u Do not open the housing as the unit does not contain any components which can be maintained by the user. The unit must only be repaired by the manufacturer.

  • Page 24: Glossary

    CR3158 mobileIoT gateway Glossary mobileIoT data contract Contract required for the mobile radio connection between the mobileIoT gateway and the mobileIoT server mobileIoT data portal Portal that processes/applies the data mobileIoT platform The complete cloud solution including backend (mobileIoT server), infrastructure,...
