N314

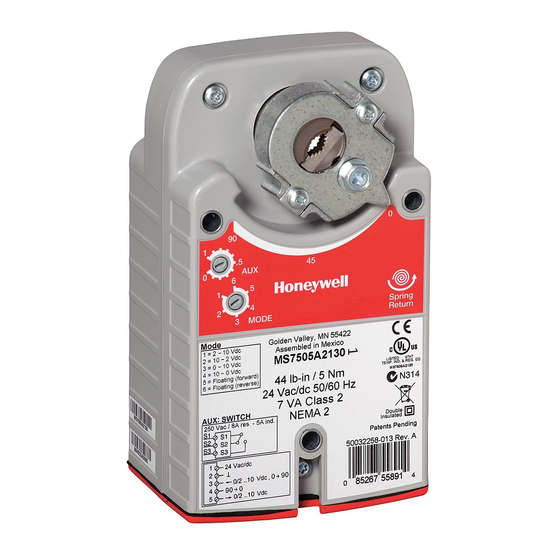

MS3103, MS3105, MS4103, MS4105, MS7403, MS7405,
MS7503, MS7505, MS8103, MS8105 Spring Return Direct
Coupled Actuators (DCA) are used within heating, ventilating,
and air-conditioning (HVAC) systems. They can drive a variety
of quarter-turn, final control elements requiring spring return
fail-safe operation.
Applications include:
• Volume control dampers, mounted directly to the drive
shaft or remotely (with the use of accessory hardware).
• Quarter-turn rotary valves, such as ball or butterfly valves
mounted directly to the drive shaft.
• Linear stroke globe or cage valves mounted with linkages
to provide linear actuation.
• Available with cable on select models
Model Number
Model Number (including 3 ft. whip)
MS3103J1030
MS7403A2030
MS7503A2030
MS7503A2130
MS8103A1030
MS8103A1130
MS4103A1030
MS4103A1130
MS3105J3030
MS3105J3130
MS7405A2030
MS7505A2030 MS7505W2030
MS7505A2130 MS7505W2130
MS8105A1030 MS8105W1030
MS8105A1130 MS8105W1130
MS4105A1030
MS4105A1130
1
Number represents range
2
2-10 Vdc
3
0/2-10 Vdc
3 Nm, 5 Nm Series Spring Return
Direct Coupled Actuators
MS3103, MS3105, MS4103, MS4105, MS7403, MS7405, MS7503,
MS7505, MS8103, MS8105
Table 1. Models.
Power Supply
VA
Torque Voltage Driving
27 lb-in 24 Vac/dc 6/3
(3 Nm) @50/60 Hz +/-
20%
24Vdc+/-10%
100-250 Vac 6/9
@50/60Hz
44 lb-in 24 Vac/dc 6/3
(5 Nm) @50/60 Hz +/-
20%
24Vdc+/-10%
100-250 Vac 6/9
@50/60Hz
INSTALLATION INSTRUCTIONS
SPECIFICATIONS
Models:
 See Table 1.
Device Weight:
 3.5 lbs (1.60 kg)
Ambient Operating Temperature:
 -40° to 150°F (-40° to 65°C)
 -22° to 150°F (-30° to 65°C) (Two position only)
Shipping and Storage Temperature:
 -40° to +150°F (-40° to +65°C)
Drive
1
(sec) Control Input/Output Description
90 Sylk-enabled
2
Floating, Modulating
3
Floating, Modulating
45 Two-Position (SPST)
45 Two-Position (SPST)
90 Sylk-enabled (5 addresses & Analog Output)
2
Floating, Modulating
3
Floating, Modulating
45 Two-Position (SPST)
45 Two-Position (SPST)
,Three-Position, Feedback
, and Feedback
, Three-Position, Feedback
, and Feedback
62-0274-07
SPDT
Aux
Switch
0
0
0
1
0
1
0
1
0
1
0
0
1
0
1
0
1
