New 'On Line' guarantee registration service, simply go to
www.khyam.co.uk/guarantee
for UK sales only to register your Khyam tent guarantee.
KHYAM QUICK ERECT TENTS
TENTES A MONTAGE RAPIDE
ASSEMBLY INSTRUCTIONS & USER HINTS
NOTICE DE MONTAGE & CONSEILS D'UTILISATION

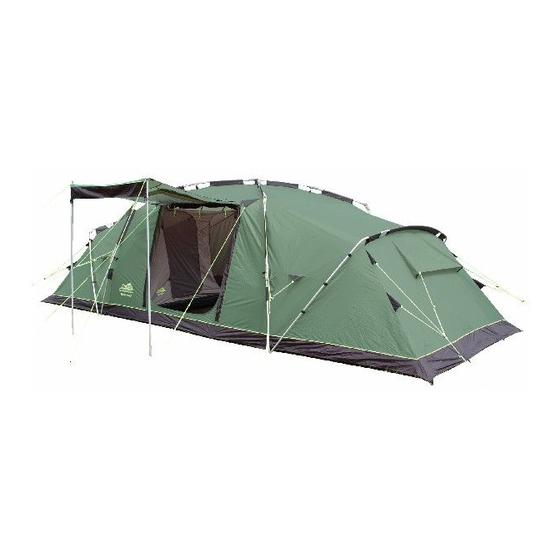

THE RIDGI-DOME TOURER 400PLUS,
CHATSWORTH, HAREWOOD, HATFIELD &
Please read these instructions fully, download or view online the customer service
video @ http://www.khyam.co.uk/info.asp?s=support prior to using your Ridgidome
for the first time. Please check your tent fully before embarking on your first camping
Lisez attentivement ces instructions, téléchargez ou visionnez la vidéo à l'adresse :
http://www.khyam.co.uk/info.asp?s=support avant de monter votre Ridgi-dome pour
WARNING: AVERTISSEMENT :
If this tent is not erected in accordance with the instructions damage could be caused to the joints,
poles or fabric. It is important that the tent is properly guyed at all times, particularly in strong
Les mâts, les articulations ou les tissus de votre tente peuvent être endommagés si vous ne la
montez pas conformément à ces instructions. Il est très important que la tente soit piquetée et
haubanée correctement si le vent est fort, pour éviter d'endommager les mâts ou les articulations.
DO NOT PUSH TENT PEGS IN BY HAND, ALL TENT PEGS SHOULD BE DRIVEN
HOME USING A WOODEN OR RUBBER FACED MALLET OR SIMILAR TOOL.
N'ENFONCEZ PAS LES PIQUETS A LA MAIN, TOUS LES PIQUETS DOIVENT
ÊTRE MIS EN PLACE EN UTILISANT UN MAILLET BOIS OU CAOUTCHOUC,
OU UN OUTIL SIMILAIRE.
KHYAM
BALMORAL.
holiday.
la première fois.
winds – otherwise pole or joint damage may occur.
Advertisement
Table of Contents
Related Manuals for Khyam HATFIELD
Summary of Contents for Khyam HATFIELD
- Page 1 New ‘On Line’ guarantee registration service, simply go to www.khyam.co.uk/guarantee for UK sales only to register your Khyam tent guarantee. KHYAM QUICK ERECT TENTS TENTES A MONTAGE RAPIDE KHYAM ASSEMBLY INSTRUCTIONS & USER HINTS NOTICE DE MONTAGE & CONSEILS D’UTILISATION THE RIDGI-DOME TOURER 400PLUS, CHATSWORTH, HAREWOOD, HATFIELD &...
- Page 2 This guarantee is in addition to the buyers statutory rights. Warranty is valid provided that the KHYAM tent is used under normal conditions for the specified purpose and that the instructions have been carefully followed.
- Page 3 Erecting The main Structure And Bedroom Sections. Montage de la structure principale et des chambres. 1/ We recommend using the optional Khyam Stone Protection Sheet to protect the groundsheet of your tent from stones e.t.c. The SPS sheet will also keep the underside of your main tent Groundsheet clean and dry making it easier and quicker when striking camp.
- Page 4 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Erecting The main Structure And Bedroom Sections. Montage de la structure principale et des chambres. 5/ Now allow all the central poles to gently lower to the ground. 5/ Etalez les mâts du groupe central en étoile sur le sol.
- Page 5 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Erecting The main Structure And Bedroom Sections. Montage de la structure principale et des chambres. 9/ Whilst still supporting the central hub, repeat point ‘8’ on the second main pole.
- Page 6 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Erecting The main Structure And Bedroom Sections. Montage de la structure principale et des chambres. 13/ Should the padded cover be trapped in the joint simply push the joint inwards slightly which will open the joint and allow the fabric to be removed.
- Page 7 18/ Répétez les séquences 14 à 17 sur les 3 autres mâts pour finir le montage. Please note if you have purchased the Tourer 400Plus, this model has telescopic lower poles to create a smaller pack size. These should be extended at this point. Following the red arrows on each pole, extend each pole until the button clicks into place.
- Page 8 “A” et la section supérieure courbée du mât “C” à l’autre extrémité du mât “A”. Tourer 400Plus only. Please note if you have purchased the Tourer 400Plus the bedroom poles are constrcuted from shockcorded fibreglass poles and these are fitted as follows:- Thread the shock corded pole through the sleeves of the bedroom pod.
- Page 9 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Erecting The main Structure And Bedroom Sections. Montage de la structure principale et des chambres. Once you have assembled and threaded the bedroom pole set, ensure you have not missed any bedroom pole...
- Page 10 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Erecting The main Structure And Bedroom Sections. Montage de la structure principale et des chambres. 26/ Peg the adjustable webbing loops on each main corner of the bedroom section.
- Page 11 BEDROOM POLES ( BALMORAL ) MÂTS D’EXTENSION CHAMBRE ( MODELE BALMORAL ) If you have purchased the Bamoral please note that the erection instructions are the same as the Chatsworth or Harewood with the exception of the bedroom poles. The Balmoral bedroom poles are steel and use pre formed pole sections for the roof and wall sections of the bedroom as opposed to the aluminium poles referred to and pictured in the Chatsworth &...
- Page 12 Should you ever need fitting instructions these are available through your Ridgi- dome dealer. 28/ Comme pour toutes les tentes KHYAM, les mâts de la gamme Ridgi-dome sont situés à l’extérieur, ce qui offre un choix illimité de positions de haubanage, simplement en fixant une corde à...
- Page 13 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME POSITIONING AND PEGGING OF TRI GUY ROPES AND STANDARD GUY ROPES MISE EN PLACE ET PIQUETAGE DES HAUBANS “TROIS POINTS” ET DES HAUBANS STANDARD 30/ Bedroom guy ropes should be pegged as far from the Tent as possible.See fig 24...
- Page 14 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Fitting the inner tents. Mise en place des chambres intérieures. 32/ Lay one of the two inner tents out flat in the chosen bedroom compartment as shown. Ensure that the plastic clips and the back two corners of the inner tent are positioned into the corner sections at the rear of the bedroom compartment.
- Page 15 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Taking your tent down. Démontage de votre tente 1/ Taking your Ridgi-dome down is simply a reversal of the erection procedure. First unclip, unpeg and remove all inner tents and fold neatly in half keeping the inner fabric inwards to protect it from mud and wet grass etc.
- Page 16 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Taking your tent down. Démontage de votre tente 5/ Once all the bedroom poles have been removed, you will be ready to strike the main dome. 5/ La séquence 4 étant terminée, vous pouvez maintenant démonter le dôme principal.
- Page 17 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Taking your tent down. Démontage de votre tente 8/ The lower pole section can now be folded fully inwards under the main section of tent lowering that pole down onto it’s ‘knees’...
- Page 18 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Taking your tent down. Démontage de votre tente 11/ The padded protective covers for the Auto joints should be fitted securely into place as shown. 11/ Les housses moltonnées de protection pour les articulations automatiques doivent maintenant être solidement remise en...
- Page 19 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Taking your tent down. Démontage de votre tente 13/ Once all roof joints are release the tent will fold back down into the star shape where you began. 13/ Lorsque toutes les articulations sont déverrouillées, la tente retombe sur le sol dans la même position en forme d’étoile,...
- Page 20 THE KHYAM RIDGI-DOME ERECTION INSTRUCTIONS INSTRUCTIONS DE MONTAGE DES TENTES RIDGI-DOME Taking your tent down. Démontage de votre tente 15/ Lay the main poles on the ground and draw round the fabric and fold into 2 rectangles either side of the main poles as shown.
- Page 21 Always follow relevant change the whole pole. Any part of a Khyam tent can be proofing manufactures instructions when reproofing your replaced and we always endeavour to keep spare in stock.
- Page 22 Ceci dit, le double toit et la chambre tout entier. Tous les éléments des tentes KHYAM sont remplaçables séparément. En outre, le tissu sont remplaçables, et nous nous efforçons de tenir les peut être réimperméabilisé.
- Page 23 KHYAM LIMITED UNIT 5, THE BLOXWICH LANE ESTATE, BLOXWICH WALSALL WS2 8TF Web site: www.khyam.co.uk...
