Summarization of Contents
What's in the Enclosure?
Modules
The Digital Audio System is comprised of enclosure-based modules, as well as keypad and input devices located throughout the home.
What's in the Wall?
Keypads & Inputs
In addition to enclosure-based modules, the system uses in-wall Digital Audio Amplified Keypads (AU7010-XX) in every zone.
Wall Devices

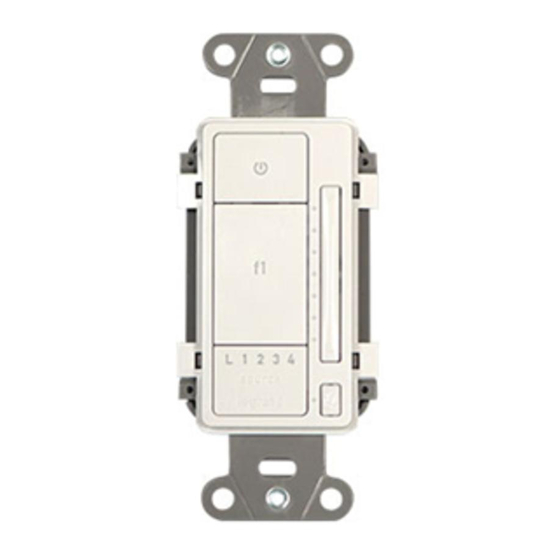

The AU7010 Digital Audio Amplified Keypad
The AU7010 Keypad provides zone amplification and access to core control functions like power, volume, mute, and source selection.
The Control App – Getting Around
Zones Pane (Rooms)
This app section displays all system zones (rooms) for navigation and shows the current status of each zone.
The Control App - Settings
Settings
Access the app's settings section to add/remove music services, adjust zone parameters, and check system component status.
Playing Music with the App
Selecting a Zone (Room) to start Music
Steps to select a zone by dragging its icon to a desired source to begin playing music.
Adding Digital Services
Pandora
Guide to adding the Pandora music service to the Digital Audio System by entering account credentials.
Music Libraries
Downloading the Music Share program
Download and install the NUVO Music Share program to access music files on your home network.
Selecting Zones
Zone Setting
Adjust individual zone settings like volume, brightness, and select zones for playback.
The Source Page
Access the source page to play music, manage playback across multiple zones, or open the app.
