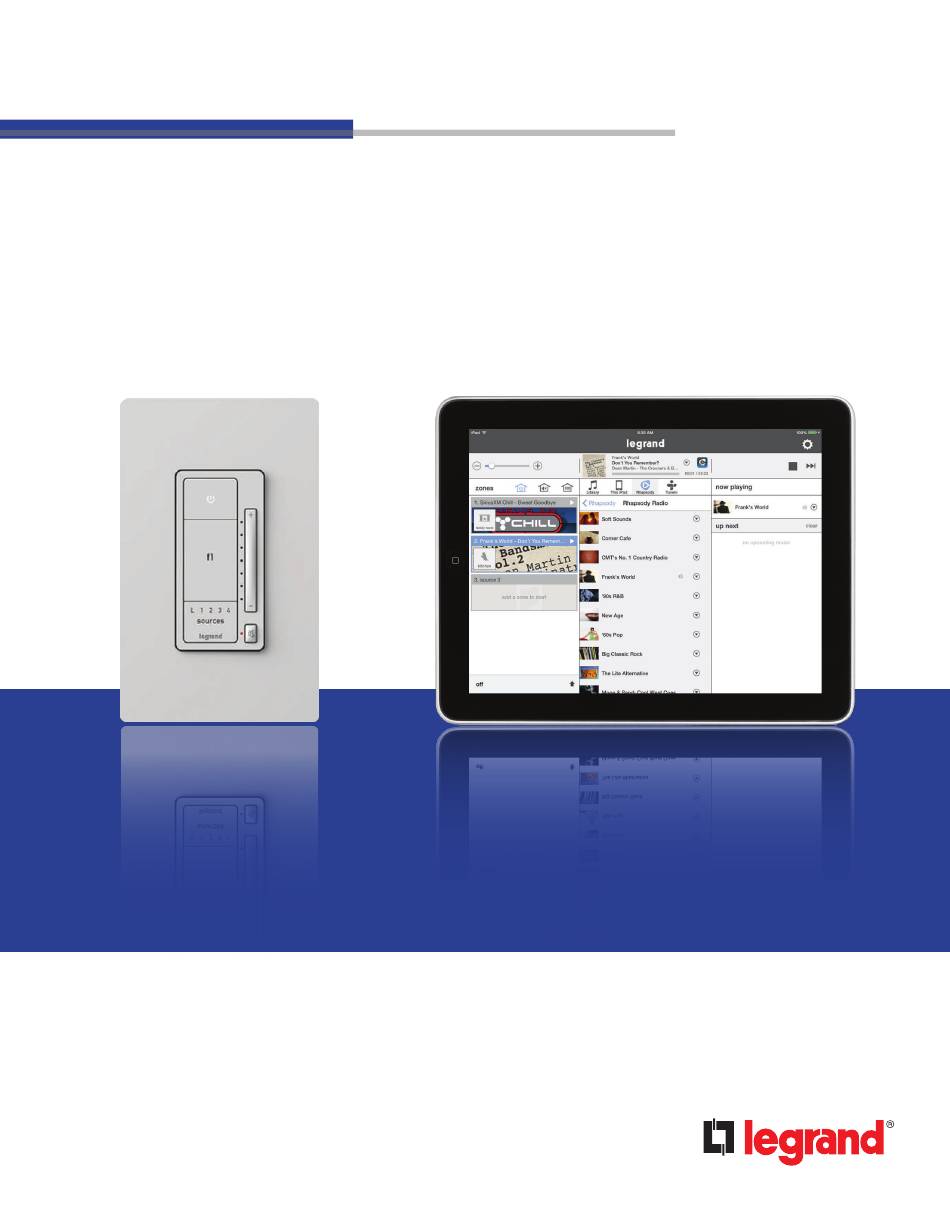

- Page 1 User Guide Digital Audio System 1308248 Rev. A...
- Page 2 These Class B digital apparatus comply with Canadian ICES-003. 301 Fulling Mill Road, Suite G Middletown, PA 17057 (800) 223-4162 www.legrand.us © Copyright 2018 by Legrand, Inc. All Rights Reserved. Digital Audio System User Guide 1308248 Rev. A...
-
Page 3: Table Of Contents
Table of Contents System Overview ..........4 Playing Music with the App ......28 Selecting a Zone (Room) to start Music ..28 Controllers ............5 Selecting Music for your Zone......29 What’s in the Enclosure? ........6 Selecting a Global Source Input ....30 Modules............. -
Page 4: System Overview
System Overview The Digital Audio System distributes four sources to up to sixteen zones, with features such as access to digital audio content from Internet Radio, streaming services, and networked devices, as well as analog components. It is controllable through the system’s amplified keypads, as well as convenient iOS and Android apps for mobile devices. -
Page 5: Controllers
Controllers The Digital Audio System can be controlled by smartphones, tablets and by the AU7010-XX Keypad. For controlling the system via smartphone or tablet, free applications are available for both Android and iOS devices through the Google Play and App Stores. Please search for ‘On-Q Digital Audio’... -
Page 6: What's In The Enclosure
What’s in the Enclosure? Modules The Digital Audio System is comprised of enclosure-based modules, as well as keypad and input devices located throughout the home. The heart of the system, the Digital Audio Distribution Module (AU7000), as well as the Digital Audio Power Distribution Module (PW1020), are required for every system. -
Page 7: What's In The Wall
What’s in the Wall? Keypads & Inputs In addition to the enclosure-based modules, every Digital Audio System also includes use of in-wall Digital Audio Amplified Keypads (AU7010-XX) in every zone. Each keypad provides both the amplification for a specific zone, as well as convenient access to core controls, such as power on/off, volume up/down, mute, and source selection. -
Page 8: Wall Devices
Wall Devices The AU7010 Digital Audio Amplified Keypad The Digital Audio Keypad provides the amplification that powers the speakers in the zone and provides access to core control functions, such as volume up/down, mute, power on/off, source selection, and access to preset favorites. To set a favorite, select the desired source and adjust the volume to a preferred level, then press and hold the F1 button until all the lights on the keypad flash indicating the favorite has been set. -
Page 9: The Au7007 Global Source Input
The AU7007 Global Source Input The Digital Audio Global Source Input (AU7007-XX) introduces analog sources into the Digital Audio System for global access through all zones. Sources connect to the Digital Audio Global Source Input either through a stereo 3.5 mm line cable, in the case of a MP3 player, or through an adapter cable for 3.5 mm to RCA connection, in the case of Cable Box or gaming consoles. -
Page 10: The Au7008 Local Source Input

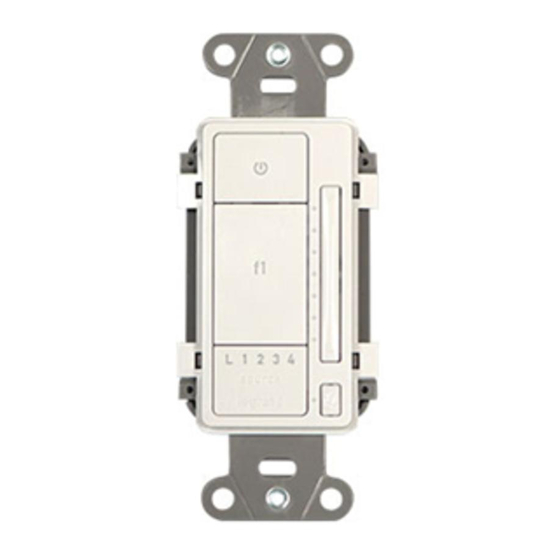

The AU7008 Local Source Input Similar to the AU7007-XX, the Digital Audio Local Source Input (AU7008-XX) also introduces analog sources into the Digital Audio System. However, it is for localized access within the specific zone where it is connected. Selection of the AU7008 is done at the keypad via the Source Selection button or through the application. -
Page 11: The Control App - Getting Around
The Control App – Getting Around Zones Pane (Rooms) Offering complete control of a Digital Audio System, the free applications (apps) available for Android and iOS devices provide both simple navigation and a complete view of a system’s current status. It all starts with the zones, or rooms, a system includes. -
Page 12: Sources Pane
Sources Pane The Digital Audio System’s available sources display on the left hand side of the app screen. The example below shows a system with two Digital Audio Input Modules as source one and source two (identified by “select music...”), and one Digital Audio Global Source (identified by “source 3”). -
Page 13: Whole House Control
Whole House Control This area of the application provides global commands that affect all zones simultaneously. This command turns all zones off. This command mutes and unmutes all zones. This command selects a single source for all on zones. Digital Audio System User Guide 1308248 Rev. -
Page 14: Volume Control
Volume Control Volume can be controlled by sliding the fader, or be adjusted incrementally by tapping the plus (+) or minus (-) buttons. If a single zone is playing, adjusting the volume will affect that single zone. If multiple zones are playing within a group, multiple volume control faders will open to adjust each zone. -
Page 15: Digital Source Selection
Digital Source Selection This panel allows users to select their digital audio sources, such as streaming services or digital content stored in a networked music library or even on a mobile device. (For how to set up streaming services, see “Adding Digital Services” on page 32.) Digital Audio System User Guide 1308248 Rev. -
Page 16: Currently Playing
Currently Playing When a source is selected in the sources pane (located on the left), its meta-data is displayed at the top of the app screen. Digital Audio System User Guide 1308248 Rev. A... -
Page 17: Transport Controls
Transport Controls Various digital audio services provide transport controls, which display in the top right pane, for added interaction with the audio content (such as the ‘thumbs up’ and ‘thumbs down’ functions for Pandora). No transport controls will display when an analog source is selected. Digital Audio System User Guide 1308248 Rev. -
Page 18: Playing Queue
Playing Queue The Playing Queue displays additional content details, such as the next track, for the currently selected source. The available information in this pane varies by source. Digital Audio System User Guide 1308248 Rev. A... -
Page 19: The Control App - Settings
The Control App - Settings Settings The Settings section of the Digital Audio app, represented by the gear icon, provides additional control and customization for your system. This is where music services can be added and removed, zone parameters can be adjusted, the status of the system components can be determined, and other features can be accessed. -
Page 20: Creating Persistent Groups
Creating Persistent Groups Within Settings, one option for customizing a system is the creation of persistent groups. This allows multiple zones to be joined together more permanently than by simply dragging multiple zones into the same source pane. To create a persistent group: Go to Settings >... - Page 21 Select an icon for the new group. Name the group. Tap Done. The newly created group displays on the home page. Digital Audio System User Guide 1308248 Rev. A...
-
Page 22: Disbanding Persistent Groups
Disbanding Persistent Groups To disband a persistent group: Go to Settings > Zones & Groups. Select the group you wish to disband. Select Ungroup zones. Confirm the request. Digital Audio System User Guide 1308248 Rev. A... - Page 23 The group disbands and the individual members are now on their own. Go to the Home Page to see the individual zones again Digital Audio System User Guide 1308248 Rev. A...
-
Page 24: Zones Settings
Zones Settings Zones have many settings that can assist with the user experience. To enter the zone settings: Go to Settings > Zones & Groups. Select a Zone. Adjust your desired setting options (see figures 3 & 4). Digital Audio System User Guide 1308248 Rev. -
Page 25: Naming A Digital Audio Global/Local Source
Naming a Digital Audio Global/Local Source Sources can be named. Generally, it is recommended to only name Global and Local Source Inputs. These inputs will be attached to known devices such as a Cable Box or the Family Room Cable Box. It is possible to name digital sources, but is not recommended. To name a source: Go to Settings >... -
Page 26: General/About
General/About This portion of the application shows details about the Digital Audio Distribution Module or the Digital Audio Input Module. Details such as the current firmware build and IP address can be accessed. This is also where the Distribution Module can be restarted or factory reset. Be very careful with Factory Reset. -
Page 27: General/About/Software Update
General/About/Software Update In general, if a software update is available for either the AU7000 Digital Audio Distribution Module or for the AU7001 Digital Audio Input Module you will be prompted with a splash screen alerting you and asking for permission to proceed with the download. Alternatively, software updates can manually be checked by doing the following: Go to Settings >... -
Page 28: Playing Music With The App
Playing Music with the App Selecting a Zone (Room) to start Music To begin playing music, a zone or room must be selected. Press and hold your finger on a Zone icon. Drag the selected icon to the desired source. Once the room icon is hovering above the desired source, release the icon. -
Page 29: Selecting Music For Your Zone
Selecting Music for your Zone To select music, choose the source containing your desired zone, then select the desired service or device from the selection pane in the center panel of the app screen (highlighted in red in the image below). To browse all available services or devices, simply slide your finger left or right. -
Page 30: Selecting A Global Source Input
Selecting a Global Source Input To select the Digital Audio Global Source Input (AU7007-XX) as your source, begin by dragging the appropriate Zone icon to the Source Pane for the AU7007-XX. Available zones for this example are Global Source 1 and cable Box. Digital Audio System User Guide 1308248 Rev. -
Page 31: Selecting A Local Source Input
Selecting a Local Source Input To select the Digital Audio Local Source Input (AU7008-XX) as your source, drag the appropriate Zone icon to the Source Pane for the AU7008-XX. This source will only be available in the zone where it is connected. Digital Audio System User Guide 1308248 Rev. -
Page 32: Adding Digital Services
Adding Digital Services Pandora To add the Pandora music service to a Digital Audio System: Select Add a Source or the Settings icon. If you are already a Pandora user, select ‘I have an account.’ Otherwise, you can set up a free account at this time. -
Page 33: Tunein
TuneIn To add the TuneIn music service to a Digital Audio System: Select the Settings icon. Choose the Music Services option. Select TuneIn. If you are already a TuneIn user, enter the user credentials for your TuneIn account. Otherwise, you can set up a free account at this time. Press Done and return to the Home Screen. -
Page 34: Rhapsody
Rhapsody Rhapsody is a paid subscription service. To add a Rhapsody subscription account: Select Add a Source or the Settings icon. If you are already a Rhapsody user, select ‘I have a Rhapsody account.’ Otherwise, you can set up a free trial at this time. Enter the user credentials for your Rhapsody account. -
Page 35: Siriusxm
SiriusXM SiriusXM is a paid subscription service. To add the SiriusXM music service to a Digital Audio System: Select Add a Source or the Settings icon. If you are already a SiriusXM user, select ‘I have a SiriusXM account.’ Otherwise, you can set up a free trial at this time. -
Page 36: Music Libraries
Music Libraries In addition to providing access to digital streaming music services, the Legrand Digital Audio System can access digital files located on the home’s network. Files stored on NAS drives or one or more iTunes, Windows Media or music folders can be accessed. There are multiple ways to gain access to these folders. -
Page 37: Entering The Pathway
Entering the pathway Another method for adding music libraries to your Digital Audio System is to enter the path for the folder you wish to access, as shown. Digital Audio System User Guide 1308248 Rev. A... -
Page 38: Integrating With Alarm.com
Integrating with Alarm.com Integrate your Legrand Digital Audio System with the Alarm.com app for access to your digital audio system from your home protection app. Visit www.legrand.us/onq/digital-audio to learn more. Log into your Alarm.com account. Select Audio from the left pane navigation menu to start the connection. - Page 39 The default audio screen appears. To start playing music: Choose the zone identifier to reveal your list of zones. Then, select zone(s). Pull the current zone window down to show the sources available for your music, then select the source you want to play for the zone. Select the play button.
-
Page 40: Navigating The Source Menu
• Play now • Play on all zones • Play on multiple zones • Open Legrand App • Cancel Drops the screen to display options • Displays the number of zones playing the selected source • Press to display list of zones and volume settings Digital Audio System User Guide 1308248 Rev. -
Page 41: Selecting Zones
• Play on multiple zones – play the source on selected zones • Open Legrand App – go to your Legrand Digital Audio app • Cancel – go back to the source menu Digital Audio System User Guide... - Page 42 For technical assistance on your Lighting Control app, contact On-Q Technical Support between 8 AM and 6:30 PM EST. Phone: 717-546-5412 Email: technical.support-hs@legrand.us Chat: www.legrand.us/on-q (Click on the icon to open a dialogue box)
