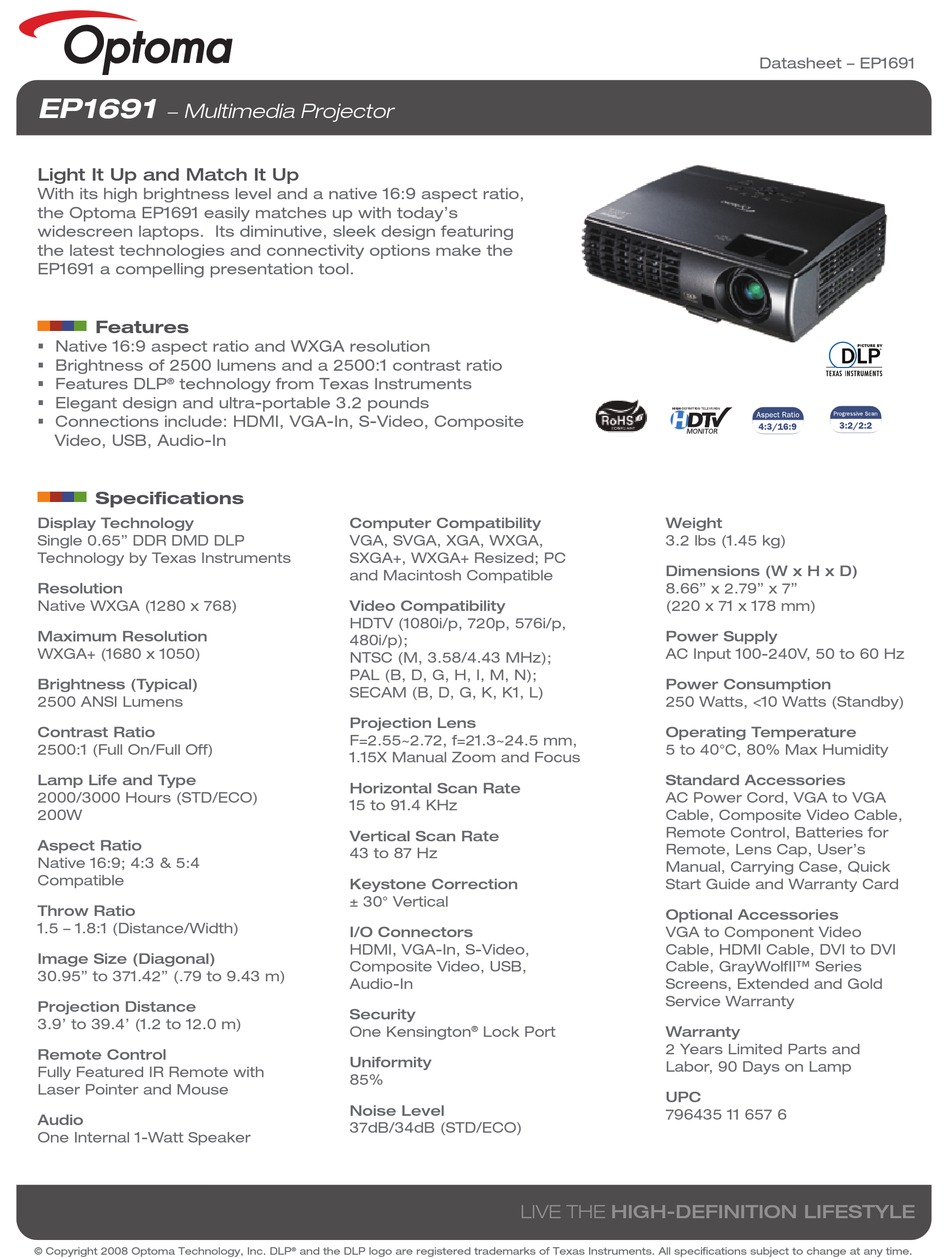

Optoma EP1691 Datasheet

EP1691
− Multimedia Projector
Light It Up and Match It Up
With its high brightness level and a native 16:9 aspect ratio,
the Optoma EP1691 easily matches up with today's
widescreen laptops. Its diminutive, sleek design featuring
the latest technologies and connectivity options make the
EP1691 a compelling presentation tool.
Features
 Native 16:9 aspect ratio and WXGA resolution
 Brightness of 2500 lumens and a 2500:1 contrast ratio
 Features DLP technology from Texas Instruments
®
 Elegant design and ultra-portable 3.2 pounds
 Connections include: HDMI, VGA-In, S-Video, Composite
Video, USB, Audio-In

Specifications

Display Technology
Single 0.65" DDR DMD DLP
Technology by Texas Instruments
Resolution
Native WXGA (1280 x 768)
Maximum Resolution
WXGA+ (1680 x 1050)
Brightness (Typical)
2500 ANSI Lumens
Contrast Ratio
2500:1 (Full On/Full Off)
Lamp Life and Type
2000/3000 Hours (STD/ECO)
200W
Aspect Ratio
Native 16:9; 4:3 & 5:4
Compatible
Throw Ratio
1.5 – 1.8:1 (Distance/Width)
Image Size (Diagonal)
30.95" to 371.42" (.79 to 9.43 m)
Projection Distance
3.9' to 39.4' (1.2 to 12.0 m)
Remote Control
Fully Featured IR Remote with
Laser Pointer and Mouse
Audio
One Internal 1-Watt Speaker
© Copyright 2008 Optoma Technology, Inc. DLP
Computer Compatibility
VGA, SVGA, XGA, WXGA,
SXGA+, WXGA+ Resized; PC
and Macintosh Compatible
Video Compatibility
HDTV (1080i/p, 720p, 576i/p,
480i/p);
NTSC (M, 3.58/4.43 MHz);
PAL (B, D, G, H, I, M, N);
SECAM (B, D, G, K, K1, L)
Projection Lens
F=2.55~2.72, f=21.3~24.5 mm,
1.15X Manual Zoom and Focus
Horizontal Scan Rate
15 to 91.4 KHz
Vertical Scan Rate
43 to 87 Hz
Keystone Correction
± 30° Vertical
I/O Connectors
HDMI, VGA-In, S-Video,
Composite Video, USB,
Audio-In
Security
One Kensington
®
Uniformity
85%
Noise Level
37dB/34dB (STD/ECO)
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Lock Port
LIVE THE HIGH-DEFINITION LIFESTYLE
Datasheet – EP1691
Weight
3.2 lbs (1.45 kg)
Dimensions (W x H x D)
8.66" x 2.79" x 7"
(220 x 71 x 178 mm)
Power Supply
AC Input 100-240V, 50 to 60 Hz
Power Consumption
250 Watts, <10 Watts (Standby)
Operating Temperature
5 to 40°C, 80% Max Humidity
Standard Accessories
AC Power Cord, VGA to VGA
Cable, Composite Video Cable,
Remote Control, Batteries for
Remote, Lens Cap, User's
Manual, Carrying Case, Quick
Start Guide and Warranty Card
Optional Accessories
VGA to Component Video
Cable, HDMI Cable, DVI to DVI
Cable, GrayWolfII™ Series
Screens, Extended and Gold
Service Warranty
Warranty
2 Years Limited Parts and
Labor, 90 Days on Lamp
UPC
796435 11 657 6
