ET-ELW21
ET-ELT22
Read before use
This document is intended for the various projection lenses that can be attached to
and used in conjunction with Panasonic projectors.
For Model No. and model names, refer to the product list (
Thank you for purchasing this Panasonic product.
■ To ensure correct use of this lens, please read the operating instructions supplied
with the lens and the projector carefully.
■ Before using this product, be sure to read "Read this first!" (
■ Please save this manual for future use.

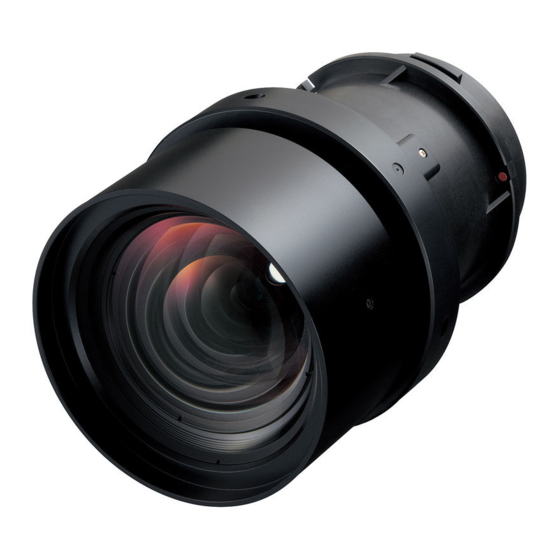

Operating Instructions
Projection Lens
ET-ELW20
ET-ELT23
Commercial Use
ET-ELW21
Model No.
ET-ELW20
ET-ELT22
ET-ELT23
Page 4).
ENGLISH
FRANÇAIS
日本語
Page 3).
TQZJ444-4
