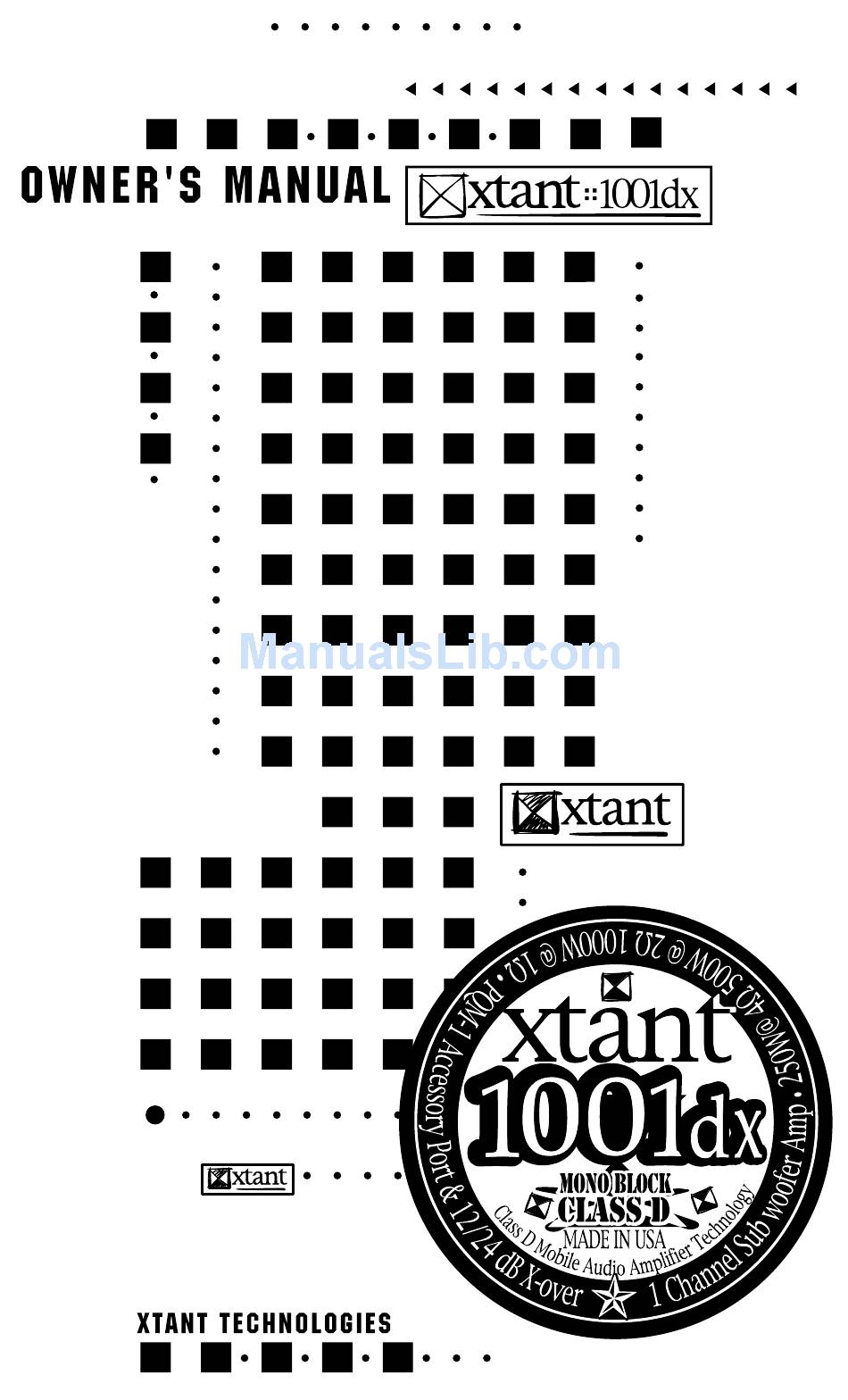

Summary of Contents for Xtant 1001DX
- Page 2 (ikst`ænt, e`kstent) 1. adj. still in existence, especially. of enduring excellence.| |e.g. of xtant quality that stands the test of time and the passing of fads. 2. adj. Standing out or above, as in out- standing, the quality or state of being original.
-
Page 3: Safeguards
The following guidelines are designed to assure a safe and properly installed Xtant Mobile Audio System. All Xtant amplifiers and accessories are intended to be installed by a certified professional mobile audio installation specialist. It is the recommendation of Xtant Technologies that your new Xtant product(s) and all of your mobile audio products be installed by your Authorized Xtant Select Dealer. -
Page 4: Table Of Contents
TABLE OF CONTENTS Safeguards Xtant 1001dx Specifications Electronic Crossover Optional Accessory Modules Maintenance Customer Relations / Technical Services Warranty Owner’s Installation Log Installer’s Reference Insert... -
Page 5: Xtant 1001Dx
Crossover: A 12/24 dB per octave “Butterworth” filter network is stan- dard on the 1001dx amplifier. Both Low Pass and High Pass frequency selec- tion is via a 12 pin Frequency Module (SIP). The amplifier is shipped with 90 Hz SIPs installed, 12 other frequencies are available from your Xtant Dealer. -
Page 6: Specifications
Xtant 1001dx SPECIFICATIONS Frequency Response 5 Hz to 500 Hz +/– 3 dB Number of Channels Watts per Channel @ 4 1 x 250 Watts per Channel @ 2 1 x 500 Watts per Channel @ 1 1 x 1000 Distortion (THD) <... -
Page 7: Electronic Crossover
The 1001dx bass amplifier features a dedicated two-way electronic crossover. The Low Pass function of the crossover feeds the 1001dx while the High Pass function supplies signal to the on-board RCA line outputs. A Bypass function is also available for the line outputs. -
Page 8: Optional Accessory Modules
1 to 10 in value, allowing a wide variety of bandwidth adjust- ment to address the subtle tuning requirements common to mobile audio sys- tems. All 1 & 2-channel Xtant amplifiers will accept one PQM-1. All 3/4-chan- nel amplifiers will accept two PQM-1 modules if desired (one PQM-1 per 2 channels of input). -
Page 9: Maintenance
C l e a n i n g t h e fa n / C i r c u i t B oa r d – E v e ry 9 0 Day s The internal fan in all Xtant amplifiers need periodic cleaning. -
Page 10: Customer Relations Technical Services
“down-time” and inconvenience. It is our commitment to service and return such product in no more than two (2) working days from the time Xtant receives the equipment. Please consider weekends or holidays (which may fall within the time period) when estimat- ing the return date of serviced product. -
Page 11: Warranty
5. The provisions of this warranty shall not apply to any Xtant unit used for a purpose for which it is not designed, which has been repaired or altered in any way, or which has been connected, installed, or adjust- ed other than in accordance with the instructions furnished in Xtant’s owner’s manual. -
Page 12: Owner's Installation Log
OWNER’S INSTALLATION LOG Upon installation of your mobile audio sound system, your Authorized Xtant Select Dealer will complete this log. Keep this owners manual with your vehicle as a reference for all amplifier settings. OWNERS NAME: VEHICLE: MAKE/MODEL: YEAR: XTANT AMPLIFIER SERIAL NO.#...
