Summary of Contents for Xtant Model 603x

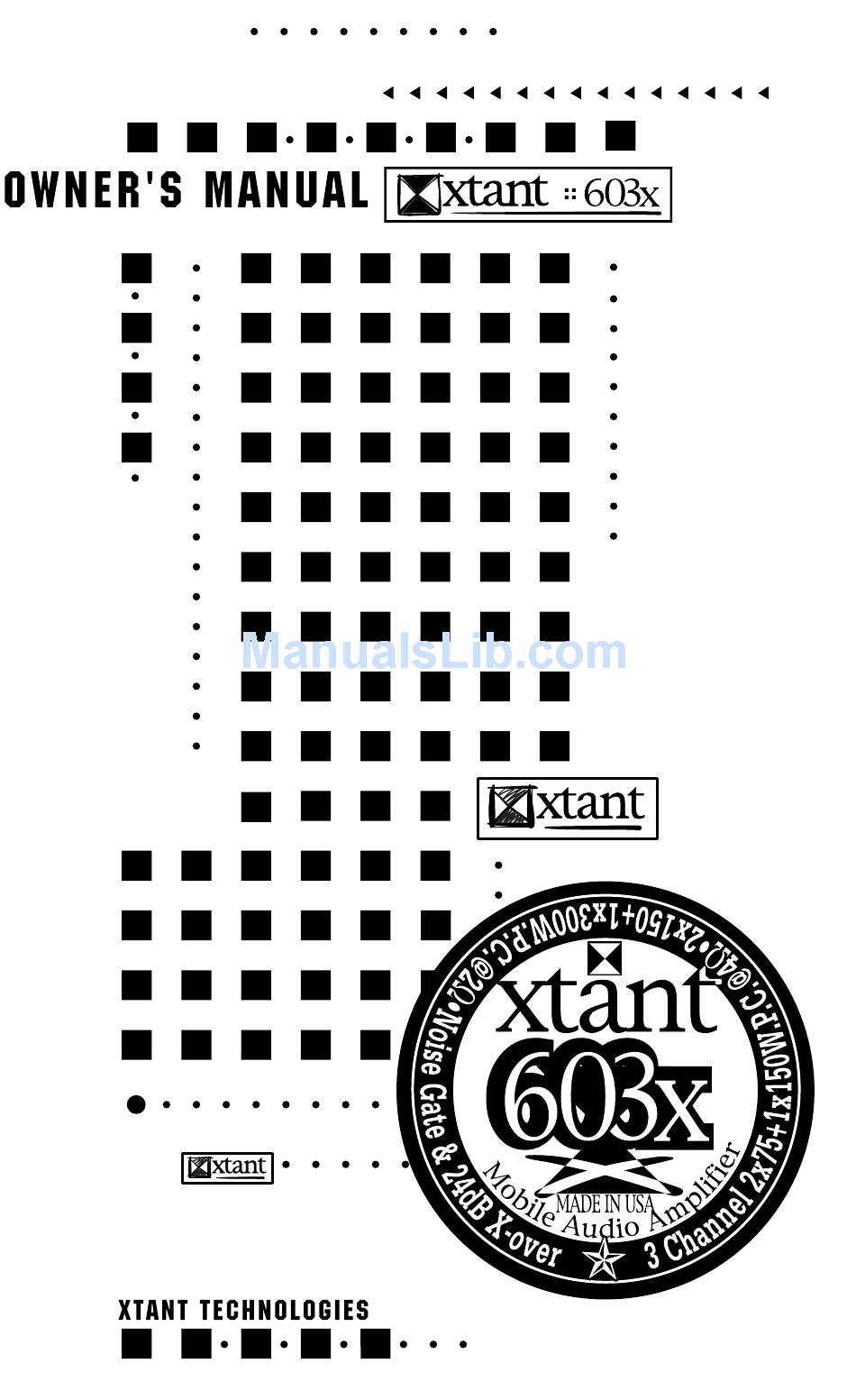

- Page 2 (ikst`ænt, e`kstent) 1. adj. still in existence, especially. of enduring excellence.| |e.g. of xtant quality that stands the test of time and the passing of fads. Standing out or above, as in out- standing, the quality or state of being original.
- Page 3 We Listen to our equipment with sensitive and critical ears to provide the finest mobile audio components on the planet. We have created Xtant because we respect the music, and the people who want to really listen. The result has expanded the expectations of extraordinarily vivid mobile audio.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safeguards Xtant 603x Specifications Electronic Crossover Optional Accessory Modules Maintenance Customer Relations / Technical Services Warranty Owner’s Installation Log Installer’s Reference Insert... -
Page 5: Safeguards
The following guidelines are designed to assure a safe and properly installed Xtant Mobile Audio System. All Xtant amplifiers and accessories are intended to be installed by a certified professional mobile audio installation specialist. It is the recommendation of Xtant Technologies that your new Xtant product(s) and all of your mobile audio products be installed by your Authorized Xtant Select Dealer. -
Page 6: Standard Features
90 Hz SIP installed, 13 other frequencies are available from your Xtant Dealer. Refer to page 7 of this manual for a list of the available frequencies. Noise Gate: Provides deep muting when no musical signal is present. Features include adjustable threshold and bypass switch. -
Page 7: Input Sensitivity
Xtant 603x SPECIFICATIONS Frequency Response Number of Channels Watts per Channel @ 4Ω Watts per Channel @ 2Ω Bridged Mono @ 4Ω (Stereo Channels) Recommended Load (stereo channels) Recommended Load (Mono channel) Distortion (THD) Measured: 20 Hz to 20 kHz at rated power, all channels driven 4Ω... -
Page 8: Electronic Crossover
ON-BOARD ELECTRONIC CROSSOVER All Xtant “x”, and “ix” Series 2 channel amplifiers have on- board, two-way electronic crossovers. Xtant 3 and 4 channel models feature two independent two-way crossovers. Each crossover is tied to a set of inputs and controls the frequency range of the associated amplifier. Independent fre- quency selection is provided for both the High and Low Pass sections. -
Page 9: Optional Accessory Modules
All 2-channel Xtant amplifiers can accept one PQM-1. All 3/4-channel amplifiers will accept two PQM-1 modules if desired (one PQM-1 per 2 channels of input). -
Page 10: Maintenance
C l e a n i n g t h e fa n / C i r c u i t B oa r d The internal fan in all Xtant amplifiers need periodic cleaning. If you are in a high dust environment, every 30 days is recommended. -
Page 11: Customer Relations Technical Services
This commitment is not taken lightly or just for today; it is our way of doing business. We believe there is no other way. Xtant’s policies and procedures are designed, in the event of a problem, to minimize the amount of your “down-time” and inconvenience. It is our commitment that the product will be at our facility for no more than four (4) days. -
Page 12: Warranty
5. The provisions of this warranty shall not apply to any Xtant unit used for a purpose for which it is not designed, which has been repaired or altered in any way, or which has been connected, installed, or adjusted other than in accordance with the instructions furnished in Xtant’s owner’s... -
Page 13: Owner's Installation Log
OWNER’S INSTALLATION LOG Upon installation of your mobile audio sound system, your Authorized Xtant Select Dealer will complete this log. Keep this owner’s manual with your vehicle as a reference for all amplifier settings. owner’s name: Vehicle: xtant amplifier serial no.
