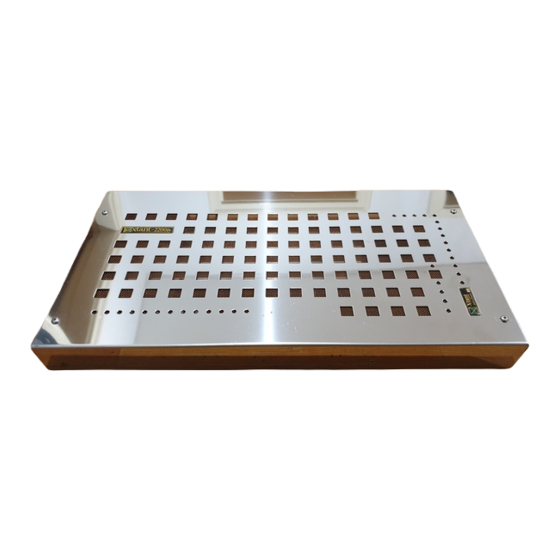

Xtant 2200ix Owner's Manual
Mobile audio amplifier
Hide thumbs
Also See for 2200ix:
- Installer's reference manual (2 pages) ,
- Installer's manual (2 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xtant 2200ix
Summary of Contents for Xtant 2200ix
- Page 2 (ikst`ænt, e`kstent) 1. adj. still in existence, especially. of enduring excellence.| |e.g. of xtant quality that stands the test of time and the passing of fads. Standing out or above, as in out- standing, the quality or state of being original.
- Page 3 We Listen to our equipment with sensitive and critical ears to provide the finest mobile audio components on the planet. We have created Xtant because we respect the music, and the people who want to really listen. The result has expanded the expectations of extraordinarily vivid mobile audio.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safeguards Xtant 2200 Specifications Electronic Crossover Optional Accessory Modules Maintenance Customer Relations / Technical Services Warranty Owner’s Installation Log Installer’s Reference Insert... -
Page 5: Safeguards
The following guidelines are designed to assure a safe and properly installed Xtant Mobile Audio System. All Xtant amplifiers and accessories are intended to be installed by a certified professional mobile audio installation specialist. It is the recommendation of Xtant Technologies that your new Xtant product(s) and all of your mobile audio products be installed by your Authorized Xtant Select Dealer. - Page 6 90 Hz SIP installed, 13 other frequencies are available from your Xtant Dealer. Refer to page 7 of this manual for a list of the available frequencies. Noise Gate: Provides deep muting when no musical signal is present.
-
Page 7: Xtant 2200 Ix
Xtant 2200ix SPECIFICATIONS Frequency Response Number of Channels Watts per Channel @ 4 Watts per Channel @ 2 Bridged Mono @ 4 Recommended Load ( ) Distortion (THD) : 20 H MEASURED Z TO Z AT RATED POWER Signal to Noise Ratio... -
Page 8: Electronic Crossover
Low Pass jumper position for the RCA line out- puts. The following Frequency Modules (SIPs)* are available from your Xtant Dealer: 50 Hz, 70 Hz, 80 Hz, 90 Hz, 120 Hz, 150 Hz, 300 Hz, 500 Hz, 700 Hz, 1 kHz, 3 kHz, 4 kHz, and 5 kHz. -
Page 9: Optional Accessory Modules
24 DB / OCTAVE CROSSOVER MODULE – CM 24X The CM 24X upgrades the standard on-board crossovers provided on all Xtant “ix” and “x” Series amplifiers with a 24 dB per octave “Linkwitz - Riley” filter. The CM 24x mod- ule improves loudspeaker polar response while its steeper slope provides enhanced system design flexibility. -
Page 10: Maintenance
C l e a n i n g t h e fa n / C i r c u i t B oa r d – E v e ry 9 0 Day s The internal fan in all Xtant amplifiers need periodic cleaning. -
Page 11: Statement Of Purpose
This commitment is not taken lightly or just for today; it is our way of doing business. We believe there is no other way. Xtant’s policies and procedures are designed, in the event of a problem, to minimize the amount of your “down-time” and inconvenience. It is our commitment that the product will be at our facility for no more than four (4) days. -
Page 12: Warranty
5. The provisions of this warranty shall not apply to any Xtant unit used for a purpose for which it is not designed, which has been repaired or altered in any way, or which has been connected, installed, or adjusted other than in accordance with the instructions furnished in Xtant’s owner’s... -
Page 13: Owner's Installation Log
OWNER’S INSTALLATION LOG Upon installation of your mobile audio sound system, your Authorized Xtant Select Dealer will complete this log. Keep this owners manual with your vehicle as a reference for all amplifier settings. OWNERS NAME: VEHICLE: MAKE/MODEL: XTANT AMPLIFIER SERIAL #...
