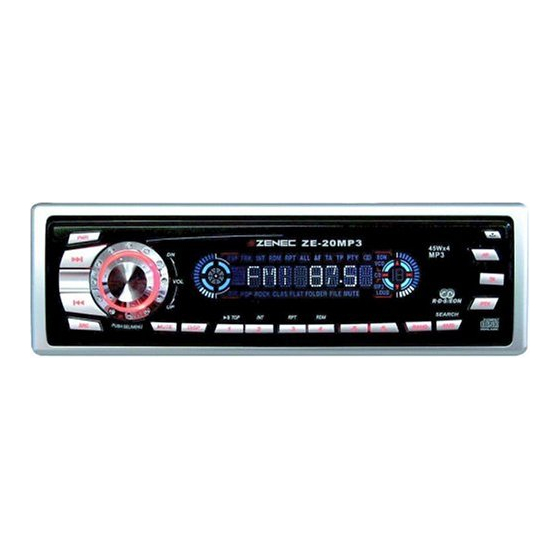

ZE-20MP3
CD/MP3 Player with RDS Tuner
Operating Instructions
Einbau- & Bedienungsanleitung

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZE-20MP3 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZENEC ZE-20MP3

  • Page 1 ZE-20MP3 CD/MP3 Player with RDS Tuner Operating Instructions Einbau- & Bedienungsanleitung...
  • Page 2: Table Of Contents

    Safety Information Contents Safety Information ....Page2 PRECAUTIONS Use only in a 12-volt DC negative-ground electrical system. Panel Controls .........3 Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Other Instruction ......4 Using a fuse with a higher amperage rating may cause serious damage to the unit.
  • Page 3: Panel Controls

    Panel Controls Power on : press any button on the panel except to turn on the unit. Power ON/OFF Press to tune in a preset station Hold for more than 2 seconds to store station. Panel Open Radio preset Alternative Frequency Radio tune Region List Track seek...
  • Page 4: Other Instruction

    Other Instruction Press the button to open the panel and press to eject the disc. Slot ,Insert the disc Disc Eject Panel status indication: When the panel slide down it will light up. When the panel detached from body it will flash.
  • Page 5: Button Tips

    Button Tips Disc Load / Eject Load : press button to slide down Eject : press button to slide down the panel. Inser t the disc into the panel. Press to eject the the slot . disc . Radio: Radio tune by step: press less than 0.5 seconds Radio seek automatic : press more than 0.5 seconds.
  • Page 6: M P3 Playback

    M P3 Play Back While playing M 3 disc, the folder/file name and ID3 TAG (Song title, Album and Artist) can entirely scroll displayed on the LCD display. ALBUM MUSIC ARTIST M P3 Elapsed playing time & Track number Folder name & number File name &...
  • Page 7: Mp3 Character Search

    MP3 Character Search Press AMS button three times to select "CHAR SCH" mode. Press SEL button and A displayed. " " Now If press SEL button more than 0.5 seconds. the track which first character of its name is "A" will be played.
  • Page 8: M P3 Overview

    M P3 Overview Note on M 3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM (CD-R or CD-RW discs). The unit can read M 3 files written in the format compliant with ISO 9660. However it does not support the M 3 data written by the method of packet write.
  • Page 9: Rds Menu Function

    RDS Menu Function Press the button more than 2 seconds to enter menu mode , then each press changes the mode as follows: TA mode MASK mode DSP mode LOUD ON / OFF mode BEEP ON / OFF VOL mode LOCAL / DX mode ST / MO mode SEEK1/2 mode (only in tuner mode)
  • Page 10 RDS Menu Function (continued) DSP mode: Rotate the knob to choose DSP sound effect: ROCK CLASSIC FLAT DSP OFF LOUD mode: Rotate the knob to choose loud on or off. BEEP ON/OFF mode: Rotate the knob to choose button beep sound on or off. SEEK 1/2 mode: Rotate the knob to choose radio seek mode 1 or 2 .
  • Page 11 RDS Basics RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. The following functions are available when receiving RDS stations. RDS Basics AF( Alternative Frequency list ) When reception is poor, an RDS station broadcasting the same program is tuned in automatically. PS Display ( Program Service name ) The name of station is displayed instead of frequency.
  • Page 12 RDS Basics ( continued ) Traffic Announcements Some RDS FM stations periodically TP ( Traffice Program Identification ) TA ( Traffic Announcements Identification ) provide traffic information. Broadcasting of traffic information Radio announcements on traffic conditions TA Mode: Press TA button to turn on / off TA. When TA mode is on and TA indicater on LCD is displayed.
  • Page 13: Rds (Continued)

    ( continued ) PTY Reception ( Program Type ) RDS FM stations provide a program type identification signal. PTY Type Preset Example: news, rock, info, sport, etc. Press PTY once to enter MUSIC type or PTY Mode: press PTY button to turn PTY on, previous PTY type: press PTY twice to enter SPEECH type.
  • Page 14: Electrical Connections

    Electrical Connections Wiring Diagram Fuse 15A Antenna Connector To car battery(+) Continuous+12V DC Yellow Ignition key Black Ground Lead +12V DC When ON/ACC Pink Tel. Mute Rear Line-out (Gray) R(Red) Blue Motor/Electric Antenna relay control Lead L(White) Amplifier relay control Lead Front Line-out (Gray) (Optional) R(Red) L(White)
  • Page 15: Installation Guide

    Installation Guide Press button to slide down the panel. Then press the Reset button with a pin to reset the unit to the original status. 183mm When you prepare to insert trim plate, please check it's direction. Once it was up side down, it can't be fixed.
  • Page 16: Anti-Theft System

    Anti-Theft System This unit is equipped with a slide-down detachable panel. Panel can be detached and taken with you, helping to deter theft. CD/M P3 PL AYER CM 7 00 4 X45 W SEARCH COMPACT MUTE DISP BAND DIGITAL AUDIO Removing the panel 1.Press PWR button to switch off the power of the unit.
  • Page 17: Trouble Shooting

    Trouble shooting If You Suspect Something Wrong Immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell, can cause fire or electric shock. Immediately stop using it and call the store where you purchased it. Never try to repair the unit yourself because it is dangerous to do so.
  • Page 18: Sicherheitshinweise

    Sicherheitshinweise Inhaltsverzeichnis Sicherheitshinweise………………….. 2 Vorsichtsmassnahmen • Das Gerät ist für den Betrieb an einer 12V Stromversorgung mit minus gegen Masse gedacht. Frontpanel Bedienung………....3 • Entfernen Sie die Batteriemasse, bevor das Gerät installiert und angeschlossen wird. • Wenn die Gerätesicherung ersetzt werden muss, achten Sie auf identischen Ampere Wert. Bedienung weitere Hinweise….....
  • Page 19: Frontpanel Bedienung

    Frontpanel Bedienung Power on: Drücken Sie zum Einschalten des Gerätes irgendeine Taste an der Bedienfront, ausser der ` Taste. Power ON/OFF Drücken um einen gespeicherten Sender aufzurufen. Länger als 2 Sek. drücken um einen Sender zu speichern Panel Abklappen Radio preset Alternative Frequency Radio tune Region Liste...
  • Page 20: Bedienung Weitere Hinweise

    Bedienung weitere Hinweise Drücken Sie die Taste um die Bedienfront nach unten zu fahren – und drücken Sie die Taste um die Disk auszuwerfen. CD-Einschubslot Disk Auswurf Bedienfront Status-Anzeige Wenn die Bedienfront nach unten geklappt wird, leuchtet die LED auf. Wenn die Bedienfront entfernt wird, blinkt die LED.
  • Page 21: Bedientipps

    Bedientipps Disk Laden / Auswerfen CD Laden: Drücken Sie um die CD Auswerfen: Drücken Sie um die Bedienfront zu senken. Führen Sie Bedienfront zu senken. Drücken Sie die Disk in den CD-Einzug ein. um die Disk auszuwer fen. Radio: Manuelle Sendereinstellung: Drücken sie die Taste nur kurz, um die Frequenz manuell zu verstellen.
  • Page 22: Mp3 Wiedergabe

    M P 3 W i e d e r g a b e W äh r e n d d e r W i e d e r g a b e e i n e r M P 3 D i s k kann d e r O r d e r / F i l e N a m e u n d d i e I D 3 T a g I n f o ( S o n g T i t e l , A l b u m u n d K ü...
  • Page 23: Mp3 Alphabetische Tracksuche

    MP3 alphabetische Tracksuche Drücken Sie die Taste AMS dreimal, um in den „CHAR SCH“ Modus zu gelangen. Drücken Sie die Taste SEL (VOL-Drehknopf) und der Buchstabe „A“ wird angezeigt. Wenn Sie jetzt den VOL-Drehknopf länger als 0.5 Sekunden gedrückt halten, zeigt Ihnen das Display den ersten MP3 Track auf der Disk an, der mit dem Buchstaben „A“...
  • Page 24: Mp3 Übersicht

    MP3 Übersicht Bemerkungen zu MP3 • MP3 ist die Abkürzung für MPEG Audio Layer 3 and beschreibt ein Datenkompressionsverfahren. • Dieses Gerät ermöglicht die Wiedergabe von MP3 Files von CD-ROM, CD-R oder CD-RW Disks. • Das Gerät kann Files lesen, die mit dem ISO 9660 Format geschrieben wurden. Das Gerät kann Datenfiles die mit „Packet Write“ Verfahren auf Disk gebrannt wurden nicht lesen! •...
  • Page 25: Rds Menü Funktionen

    R D S M e n u F u n k t i o nen D r ü c k e n S i e d i e d e n V O L - D r e h k n o p f l ä n g e r a l s 2 S e k u n d e n u m i n d a s G e r ä t e - M e n u z u k o m m e n . J e d e r D r u c k a u f d i e T a s t e w e c h s e l t d a s M e n u w i e f o l g t : TA Modus MASK Modus...
  • Page 26 RDS Menu Funktionen (Fortsetzung) D S P M o d u s : D r e h e n S i e d e n V O L - D r e h k n o p f u m d e n ROCK CLASSIC FLAT...
  • Page 27: Rds Basisfunktionen

    RDS Basisfunktionen Die RDS Empfangssituation variiert je nach Empfangsgebiet. Wenn sich in Ihrem Empfangsgebiet keine RDS Sender befinden, können Sie auch die im nachfolgenden beschriebenen RDS Funktionen nicht nutzen. RDS Basisfunktionen AF (Alternativ Frequenz-Liste): Wenn der Empfang eines Senders schlecht ist, wechselt der Tuner auf eine Alternativ-Frequenz, auf welcher das gleiche Programm ausgestrahlt wird.
  • Page 28 (Fortsetzung) Traffic Announcements (Verkehrsdurchsagen) Einige RDS-UKW Sender übertragen TP (Traffic Program Identification) TA (Traffic Announcements Identification) wiederholt Verkehrsinfos. Die Durchsage von Verkehrsinfo’s. Radiodurchsagen von Verkehrsinfo’s. TA Modus: Drücken Sie die TA Taste um die TA Funktion zu aktivieren oder deaktivieren. Die aktivierte TA Funktion wird durch das leuchtende TA Icon im LCD Display angezeigt.
  • Page 29 (Fortsetzung) PTY Reception ( Program Type ) RDS-UKW Sender enthalten PTY Indentifikationsdaten im Signal. PTY Typ Vorwahl Z.B. NEWS, ROCK, INFO, SPORT. Drücken Sie PTY einmal um den Musiktyp zu wählen. Drücken Sie PTY zweimal um Sprachtyp PTY Modus: Drücken Sie die PTY Taste um PTY an- oder auszuschalten. zu wählen.
  • Page 30: Installations-/Montagehinweise

    Installations-/Montagehinweise Wiring Diagram Fuse 15A Antenna Connector To car battery(+) Continuous+12V DC Yellow Ignition key Black Ground Lead +12V DC When ON/ACC Pink Tel. Mute Rear Line-out (Gray) R(Red) Blue Motor/Electric Antenna relay control Lead L(White) Amplifier relay control Lead Front Line-out (Gray) (Optional) R(Red) L(White)
  • Page 31 Installation Installations-Prozedur Führen Sie die Blechhalterung vom Gerät in den DIN Schliessen Sie erst die Installation ab, dann vergewissern Sie Schacht ein, und biegen Sie die Blechlaschen mit sich nochmals dass alle Verbindungen korrekt ausgeführ t sind! einem Schraubenzieher um – um die Halterung im Schacht zu arretieren.
  • Page 32: Diebstahlschutz

    Diebstahlschutz Dieses Gerät ist mit einem abklappbarem und abnehmbaren Bedienteil ausgestattet. Die Bedienfront kann zum Schutz gegen Diebstahl abgenommen werden. CD/M P3 PL AYER CM 7 00 4 X45 W SEARCH COMPACT MUTE DISP BAND DIGITAL AUDIO Entfernen vom Bedienteil 1.
  • Page 33: Störungsbehebung

    S t ö r u n g s b e h e b u n g W e n n S i e e i n e n F e h l e r v e r m u t e n , s c h a l t e n S i e d a s G e r ä t u n v e r z ü g l i c h a u s ! V e r w e n d e n S i e d a s G e r ä t n i c h t w e n n e t w a s n i c h t z u s t i m m e n s c h e i n t ( k e i n T o n a m A u s g a n g , v e r b r a n n t e r G e r u c h , R a u c h e n t w i c k l u n g ) .
  • Page 34: Specifications

    Specifications AM Radio General Power supply: 12V DC(11V-16V) Frequency range: 522-1620 kHz Usable sensitivity(S/N=20dB): Test voltage 14.4V, negative ground 30 dB Maximum power output: 45Wx4 channels Continuous power output: 20Wx4 channels (4Ω,10% T.H.D.) Suitable speaker impedance: 4-8 ohm Disc Player Pre-Amp output voltage: 2.0V(CD play mode: 1KHz, 0 dB Disc digital audio system...
  • Page 35: Warranty Conditions

    Dear customer Sehr geehrter Kunde, Thank you for purchasing this ZENEC product. It is advisable to keep the Vielen Dank, dass Sie sich zum Kauf dieses Produktes von ZENEC ent- original packing material for any future transporting of the product.
  • Page 36 Warranty Conditions / Garantie ZENEC Model: ZE-20MP3 Dealer’s address & stamp Serial Number: ..................... Date of Purchase: ..................Name:......................Address: ...................... City:......................State: ........ZIP or Postal Code ......... Country: .....................
