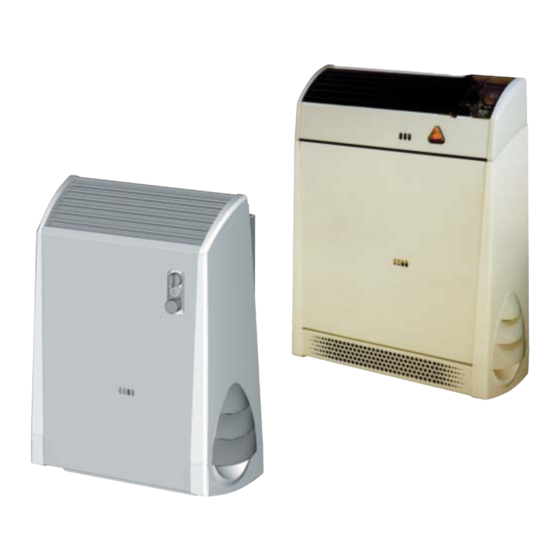

- Page 1 Wall gas radiator. - NATURAL - Echo XN 18 Echo XN 30 Echo XN 45 0694 BN3612 n° Models: TC, TV-TVO, Compact INSTRUCTION MANUAL for the USER...
- Page 2 Index Basic safety rules Pag. 5 General advice “ Finding out the "Echo" convector “ Convector use: - Setting service. “ - Timer and watch regulation. “ 12 - Thermostat environment regulation “ 13 - Fan start “ 13 Long periods shut down “...
- Page 3 Kind customers Congratulations on your purchase of our Echo convector! We thank you for choosing our Echo convector. This high quality, product will provide you efficiency, comfort, quietness and safety for years to come. An Authorized Technical Service Centre is prepared to maintain this product’s high efficiency, answer to any of your questions, as well as provide you with any replacement parts.
- Page 4 The Echo Fox convector which you have purchased, has a Certificate Warranty that begins from the date that the technical service has given confirmation. We recommend you to contact an Authorized Technical Service if you experience any difficulty or may have any questions regarding the use of this product.
- Page 5 Security rule When using a product with combustion or Electrical Hazard: Do not touch the con- electrical energy, always follow basic safety vector with part of your body wet. precautions to reduce the risk of injury. Read this manual carefully to learn its use and limi- tations as well as potential hazards associated Do not touch the grill when hot air is com- with its use.
- Page 6 General considerations READ AND SAVE ALL INSTRUC- The convector has to be installed by a qualified technical for the low of the 5- TIONS FOR FUTURE REFERENCE. Your Technical service Assistance may be con- march 1990 n 46 as indicated in this manual. tacted to replace this manual if it becomes damaged or is lost.
- Page 7 Convector ECHO Fox Convector ECHO XN Convector ECHO XC c o m p a c t Gas convector type C for heating.
- Page 8 The Echo convector The Echo convector is a gas radiator with an atmospheric burner assist- ed by a high efficiency fan. This convector is the series of type C .The fan that is assembled has two velocities. A transparent cover is provided to avoid damage to the main power control panel.
- Page 9 Focus service The first thing to focus is that, if Echo convec- tor has been installed from Technical Service Assistance. As long this is being done, the Technical is going to show you the start of the convector, and what are the things to do for a long period shut down.
- Page 10 • Position the Timer to manual • Start the convector: - Rotate the thermostatic handle in position 7 - Push the starting handle - Rotate subsequently of _ the staring handle, from the off position to the starting position pressing always down the start handle. •...
- Page 11 • The burner it going to work until it will reach the regulated temperature. • At reached temperature, the main burner will shut off; the injector start will remain turned • If there are going to be any problems, the con- vector is going to affect a “...
- Page 12 Watch regulation (optional) The first regulation that you have to do on the watch is the minutes and the hours, and subse- quently the function periods or the convector halt. • How to adjust the current time; Rotate only clockwise the clock dial until the right hour is indicated from the present point that is on the control panel.
- Page 13 Atmospheric thermostat regulation The handle can regulate the atmospheric ther- mostat; if you want to increase the temperature you move the handle rotating clockwise on number 7, to decrease the temperature, counter-clockwise on number 1. After that the new regulation is effect wait that the convector has completed the function cycle, and verified the states obtained.
- Page 14 Long periods shut down If the convector is going to be stopped for a long period of time, is important to follow these sequences. • Position the function selector on 0 (optional). • Position the starting handle on the control panel to the “off”...
- Page 15 Clean out Solution and Problems • Electrical alimentation. The only necessary cleaning by the owner is to If you have turned the main switch to the clean the cover. “on” position and it does not illuminate the button, be sure that the main electrical cable Before effecting: is inserted in the proper way under the con- •...
