Summary of Contents for Italkero Dolce Vita light fire

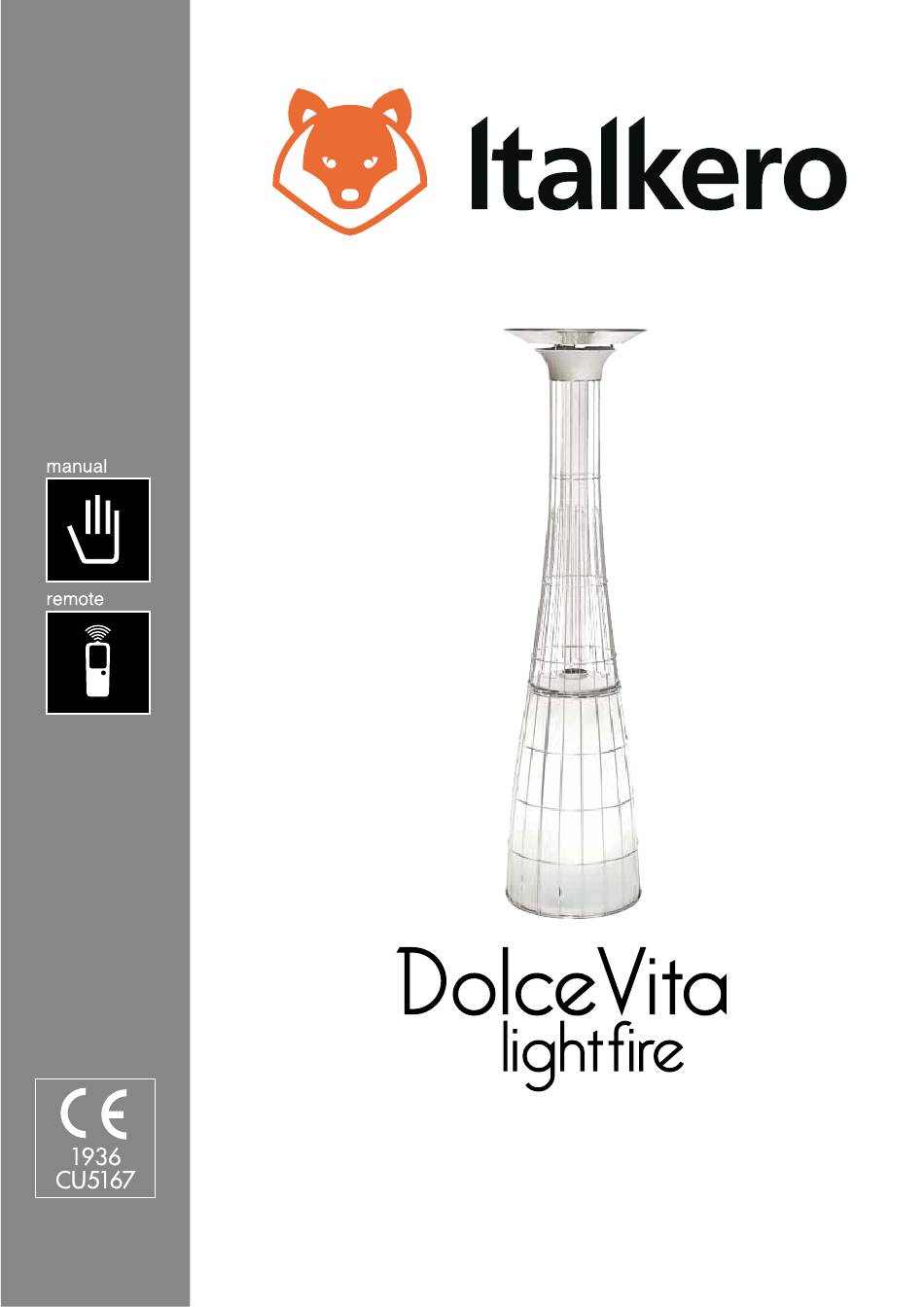

  • Page 1 Decorative outdoor gas heater. category USER MANUAL AND ASSEMBLY INSTRUCTIONS...
  • Page 2: Dear Customer

    Dear Customer We thank you for choosing the appliance. We can assure you its performance will be long la- sting, reliable when it is installed and used properly (manufacturer’s guidelines are followed). Good work and thanks The Manufacturer.
  • Page 3 TOOLS recommended for fitting and/or maintenance (not supplied by the Manufacturer): 1) brush for cleaning the glass pipe, 2) cross-headed tip screwdriver, 3) LPG pressure regulator, 4) 19 fixed wrench for regulator, 5) 8 fixed wrench, 6) scratchproof soft cloth for outside cleaning, 7) protection gloves for transport, 8) compressed air for inside cleaning.
  • Page 4 Fig. 1 A) outdoor installation, with no two adjoining walls. B) outdoor installation, with no two opposite walls. C) outdoor installation, with at least 25% of the open area. D) outdoor installation.
  • Page 5 Fig. 2 19,68 r max 78,74...
  • Page 6 Fig. 3...
  • Page 7 KEY: 1) fastening knob, 2) cover dish, 3) exchanger head, 4) protection grid, 5) glass pipe, 6) magnet, 7) burner, 8) ignition/ adjustment knob, 9) battery holder, 10) control unit (remote control Mod.), 11) tank support base, 12) side panel, 13) control cover panel, 14) trolley, 15) Antiwind, 16) SMALL remote control (remote control Mod.).
  • Page 8 Fig. 4 1,5Volt 1,5Volt stilo ministilo Fig. 5 Fig. 6...
  • Page 9 Fig. 7 Fig. 8 Fig. 9...
  • Page 10 Fig. 10 Fig. 11 Fig. 12...
  • Page 11 UK - REPLACING BROKEN PIPE. Fig. 13 UK - TUBE MAINTENANCE. Fig. 14 optional...
  • Page 12: Control Unit

    Fig. 15 control unit remote control 7 step 7 step Fig. 16...
  • Page 13 UK - FIXING THE TANK Fig. 17...
  • Page 14 gal/h inch water inch water 0694 LEGENDA colonne: - Columnes esplication A..Q: sigla paese - land identification - d signation du pays - landesbezeichnung - indica o do pa s - land van bestemming - m r maa - bestemmelsesland - bestemmelsesland - pais de destino B: serie apparecchio - appliance serial- s rie de l appareil- serie des ger ts - s rie aparelho - serie aparato - merk - merkki - merke - m rke - marka C: modello apparecchio - appliance model - serie aparato - modell des ger ts -modelo aparelho - modelo aparato - model - mall - model - modelo D: categoria gas - gas categories - type de gaz - gaskategorie - categoria de g s - categor a de gas - gascategorie - kaasukategoria - gasskategori - gaskategori - categoria de g s...
  • Page 15 1 main burner 2 pilot burner 3 ignition electrode 4 thermocouple 5 gas valve 6 thermocouple cables 7 anti-tip switch 8 power switch 9 battery holder 10 igniter rame marrone copper brown marrone trasparente brown trasparent GAS IN rosso - red rosso - red trasparente - trasparent GAS IN...
  • Page 16: Troubleshooting

    rEcEiPt of thE ProDUct The appliance is supplied protected by a cardboard package con- taining: n.1 Unit n.1 Remote control std (remote control model only) n.1 Hat + fixing knobs n.3 Anti-slip and anti-scratch feet n.1 Tank locking strap n.1 Tank locking side bar n.1 Envelope with documents: n.1 Instructions booklet n.1 Certificate of Guarantee (only for Italy market)
  • Page 17 CAREFULLY LOOK AFTER THIS BOOKLET FOR THE ENTIRE LIFE OF THE APPLIANCE AND REQUEST A NEW ONE IN CASE OF DAMAGE OR LOSS! IMPORTANT! SHOULD THE PARTS BE DAMAGED, DO NOT GO AHEAD WITH ASSEMBLY! IMPORTANT! This appliance must be installed in compliance with the Regulations, Laws and Standards applicable in the Country of use.
  • Page 18: General Description

    GENErAL DEScriPtioN Due to its specific type of operation with direct and reflected irradiance, this appliance approximately heat up a surface of 13 m2 with a range of action of 2 meters. The weather of your specific region could influence the device efficiency, as the appliance position (totally or in part open space) as your subjective heating feelings.
  • Page 19 ASSEMBLY PHASES (FIXED type, on ground or floor, with LPG tank or mains gas supply): IMPORTANT! If the appliance is used with LPG at 50 mbar (for SWITZERLAND, AUSTRIA, GERMANY and LUXEMBOURG), fit the conforming diaphragm, see Technical Data table. 1 –...
  • Page 20 start automatically. Once the flame has ignited, continue to press the knob for about 15 seconds to allow the thermocouple to heat up and keep the valve open. At this point, simply regulate the burner power: Ignition – REMOTE CONTROL mod. --- CONTROL UNIT 1 - insert the batteries in the electronic control unit on the appliance (Fig.4).
  • Page 21 MAiNtENANcE IMPORTANT! Before performing any type of maintenance, make sure the gas supply tap and/or burner supply tap are closed. REPLACING THE BOTTLE The gas bottle must be replaced in open or abundantly ventilated areas, away from any source of flames or sparks such as: candles, cigarettes, other appliances that may produce flames or sparks.
  • Page 22 troUBLEShootiNG: with remote control. FAULT CAUSE REMEDY 1-Not enough gas supply (bad LPG gasification 1-Clean, set / replace. No flame or dirt in system) or pressure regulator not set properly or faulty. 2-No gas flow (tank empty or interruption in 2-Check / replace.
  • Page 23 troUBLEShootiNG: manual controls. FAULT CAUSE REMEDY 1 – non enough gas supply flow: 1- Check: No flame - bad LPG gasification; - Check and replace empty tank; - bad LPG gasification with low temperature. - Replace with Propane gas tank. - pressure regulator wrongly set or faulty.
