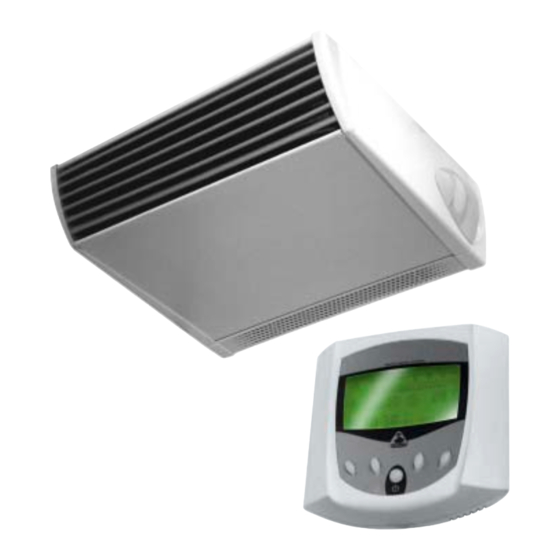

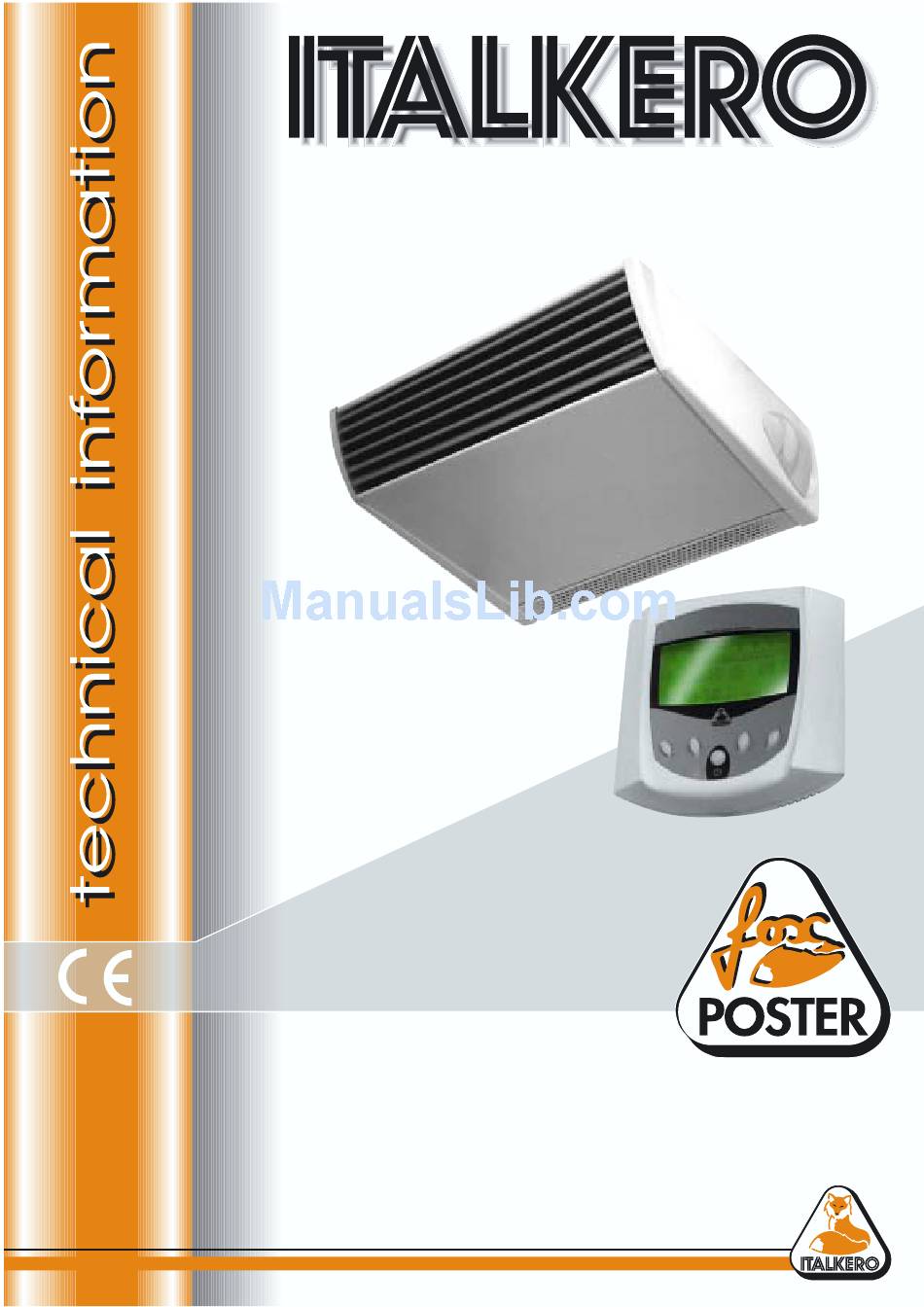

- Page 1 Ceiling gas radiators - FORCED - PS40 PS40 PS60 PS60 PS80 PS80 PS90 0694 PS90 BL3197 n° INSTRUCTION BOOKLET : I N S TA L L AT I O N A N D AFTER-SALES SERVICE...
- Page 2 CONFORMITY O u r a p p l i a n c e s a r e i n c o n f o r m i t y w i t h : G a s D i r e c t i v e 9 0 / 3 9 6 / E E C E l e c t r o m a g n e t i c C o m p a t i b i l i t y D i r e c t i v e 8 9 / 3 3 6 / E E C L o w - Vo l t a g e D i r e c t i v e 7 3 / 2 3 / E E C 0 6 9 4 0694...
- Page 3 Dear Technician, Congratulations on having chosen a POSTER PS CONVECTOR. This unit is able to provide many years of well-being with extremely high standards of efficiency, reliability, quality and safety. By means of this booklet, we intend providing you with all the information we consider necessary for correct and easy installation.
-
Page 4: Table Of Contents
CONTENTS GENERAL General Information page Fundamental safety rules Description of the appliance Safety devices Identification Structure Technical details Accessories Functional wiring diagram Control panel INSTALLER Receipt of product - Pipe kit Ø 32 or Ø 54 mm with COMBINED end piece - Pipe kit Ø... -
Page 5: General Information Page
GENERAL INFORMATION - After removing the packaging, check the integrity If the appliance is not used for a long period of time, and completeness of the supply and in case of any the following operations must be performed: discrepancies, contact the Agency that sold the - position the master switch (if fitted) on "off"... -
Page 6: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE CONVECTOR units are independent gas appliances The heat exchanger, consisting of aluminium die for heating environments. casting with fins, ensures high combustion efficiency. They use an atmospheric burner with combustion The tangential fan ensures rooms are quickly heated chamber of the C TYPE, sealed with respect to the up after switch-on. -
Page 7: Structure
STRUCTURE Safety thermostat Convection fan Technical plate Gas Valve Power plug Control unit Gas valve Protection fuse Combustion fan Digital remote control Room thermostat Main switch Burner unit "Integrated" room heat probe Heat exchanger "Split" room heat probe Display Battery holder (buffer batteries) Condenser (mod. -
Page 8: Technical Details
TECHNICAL SPECIFICATIONS MODEL G20 G30/G31 G20 G30/G31 G20 G30/G31 G20 G30/G31 Fuel Mains gas supply pressure (nominal) G20 mbar Category of appliance 2H3+ Type of appliance C13 / C33 / C53 / C63 Nom. heat output / min. HI 3,5 / 2,4 5,85 / 4,0 7,4 / 5,07 9,1 / 6,2... -
Page 9: Functional Wiring Diagram
WIRING DIAGRAM General wiring diagram PS-R2 DDS 174 1 2 3 4 5 6 1 2 3 1 2 3 4 V.T. 4 3 2 1 F 2AL 250V 230V~ I INTEGRATED ROOM PROBE BATTERY HOLDER SPLIT ROOM PROBE CONTROL BOARD OUTSIDE PROBE (optional) IGNITION ELECTRODE COMBUSTION FAN... -
Page 10: Control Panel
CONTROL PANEL DESCRIPTION OF KEYS a - Switch on the appliance (key 3); b - Press MENU key (key 5); c - Press DOWN key (key 2) to move the cursor onto the required menu line; d - Press SELECT key (key 5); note: keys 1, 2, 4 and 5 acquire different functions in the different menus.
