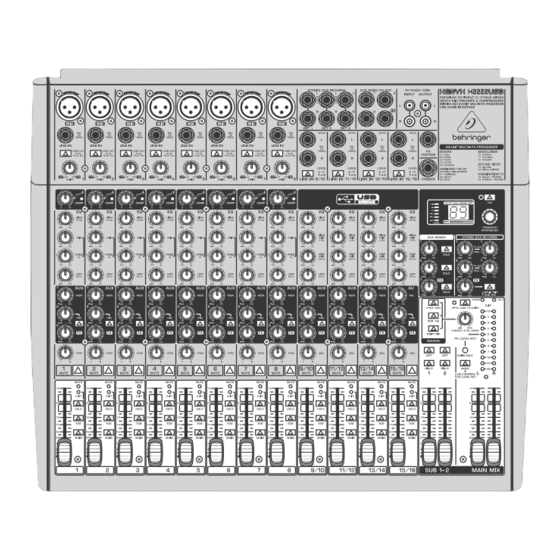

- Page 1 User Manual X2442 /X2222 X1832 /X1622 Premium 24/22/18/16-Input 4/2, 3/2 and 2/2-Bus Mixer with XENYX Mic Preamps & Compressors, British EQs, 24-Bit Multi-FX Processor and USB/Audio Interface...
-
Page 2: Table Of Contents
With the new XENYX microphone preamps including phantom power as an option, balanced line inputs and a powerful effects section, th xing consoles in the XENYX Series are optimally equipped for live and studio applications. Owing to state-of-the-art circuitry, your XENYX console produces a warm analog sound that is unrivalled. -
Page 3: Important Safety Instructions
XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual 9. Do not defeat the safety purpose of the polarized TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIED Important Safety or grounding-type plug. A polarized plug has two blades UNDERTAKING OR REPRESENTATION. THIS MANUAL Instructions with one wider than the other. A grounding-type plug IS COPYRIGHTED. -
Page 4: Introduction
This higher, interference-safe signal level has to be achieved through amplification The equalizers used for the XENYX Series are based on the legendary circuitry of using an amplifier of the highest quality in order to amplify the signal and top-notch consoles made in Britain, which are renowned throughout the world add as little noise to it as possible. -
Page 5: The User's Manual
XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual 1.3.3 Online registration • Mix: All other mixing console functions fall under this vital category. Creating a Please register your new BEHRINGER equipment right after your purchase mix means primarily adjusting the volume levels of individual instruments by visiting http://behringer.com and read the terms and conditions of our... - Page 6 +48 V phantom power supply for bands. All bands provide boost or cut of up to15 dB. In the central position, condenser microphones. The XENYX preamps provide undistorted and noise-free the equalizer is off (flat). gain as is typically known only from costly outboard preamps.
-
Page 7: Stereo Channels
XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual Pre-fader/post-fader MUTE LED When using effects on a channel signal, it is usual to have the aux send post fader The MUTE LED indicates a muted channel. so that the balance between effect and dry signal stays constant even when CLIP-LED the channel fader is altered. -
Page 8: Interface Panel And Main Section
XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual LOW CUT and MIC GAIN AUX SEND 1, 2 and 4 These two control elements operate on the XLR connectors of the X2442USB, The AUX SEND 1 control governs the master send level of the mix created by the and are used to filter out frequencies below 75 Hz (LOW CUT) and to adjust individual channel AUX 1 sends. -
Page 9: Stereo Aux Return Connectors
XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual AUX SEND (FX) The first aux send (MON) on this console is used to set up the monitor mix from the channels and route it to the MON SEND fader. The AUX SEND (FX) jack carries the master aux mix (from the channel’s FX controls). - Page 10 XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual Monitor mix with effect 2.3.6 Supplement to X1832USB In this instance, your effects device should be set up as follows: the AUX SEND 2 The X1832USB has a stereo fader for the AUX RETURN FX and offers a variety...
-
Page 11: Level Meter
You can a second XENYX or the BEHRINGER ULTRALINK PRO MX882 can also be connected also connect MIDI instruments or other signals here that do not require any here. -
Page 12: Graphic 9-Band Equalizer (X1832Usb Only)
XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual PFL (LEVEL SET) LEFT/RIGHT switch To activate the PFL function, press the MODE switch. The PFL function should, as a The switches located above the subgroup faders assign the subgroup signal rule, be used for level setting (GAIN). The signal is sourced pre-fader and assigned either to the left or right side of the main bus. -
Page 13: Digital Effects Processor
XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual FBQ FEEDBACK DETECTION LEVEL The switch turns on the FBQ Feedback Detection System. It uses the LEDs in the The LED level meter on the effects module should display a sufficiently high frequency band faders to indicate the critical frequencies. On a per-need basis, level. -
Page 14: Inserts
1, 3, 5 and 7, in the second the tracks 2, 4, 6 and 8. 5.6 Voltage supply, phantom power supply The XENYX 2442FX already has subgroup outputs wired in parallel (1-5, 2-6, etc.). and fuse 5.3 Inserts... -
Page 15: Installation
XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual SERIAL NUMBER Balanced use with XLR connectors Please note the important information on the serial number given in chapter 1.3.3. 6. Installation input 1 = ground/shield 6.1 Rack mounting 2 = hot (+ve) 3 = cold (-ve) The packaging of your mixing console contains two 19"... -
Page 16: Specifications
XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual 7. Specifications Insert send return ¼" TRS connector strain relief clamp Microphone Inputs (XENYX Mic Preamp) sleeve Type XLR, electronically balanced, ring discrete input circuit Mic E.I.N. (20 Hz - 20 kHz) @ 0 Ω source resistance -134 dB / 135.7 dB A-weighted... - Page 17 XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual EQ Stereo Channels Main Mix System Data 80 Hz / ±15 dB Noise Low Mid 500 Hz / ±15 dB Main mix @ -∞, -101 dB High Mid 3 kHz / ±15 dB Channel fader @ -∞...
- Page 18 XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION XENYX X2442USB/X2222USB/ X1832USB/X1622USB MUSIC Group Services US Inc. Responsible Party Name: 18912 North Creek Parkway, Address: Suite 200 Bothell, WA 98011, Phone: +1 425 672 0816 Phone/Fax No.: Fax: +1 425 673 7647 XENYX X2442USB/X2222USB/X1832USB/X1622USB complies with the FCC rules as mentioned in the following paragraph:...
