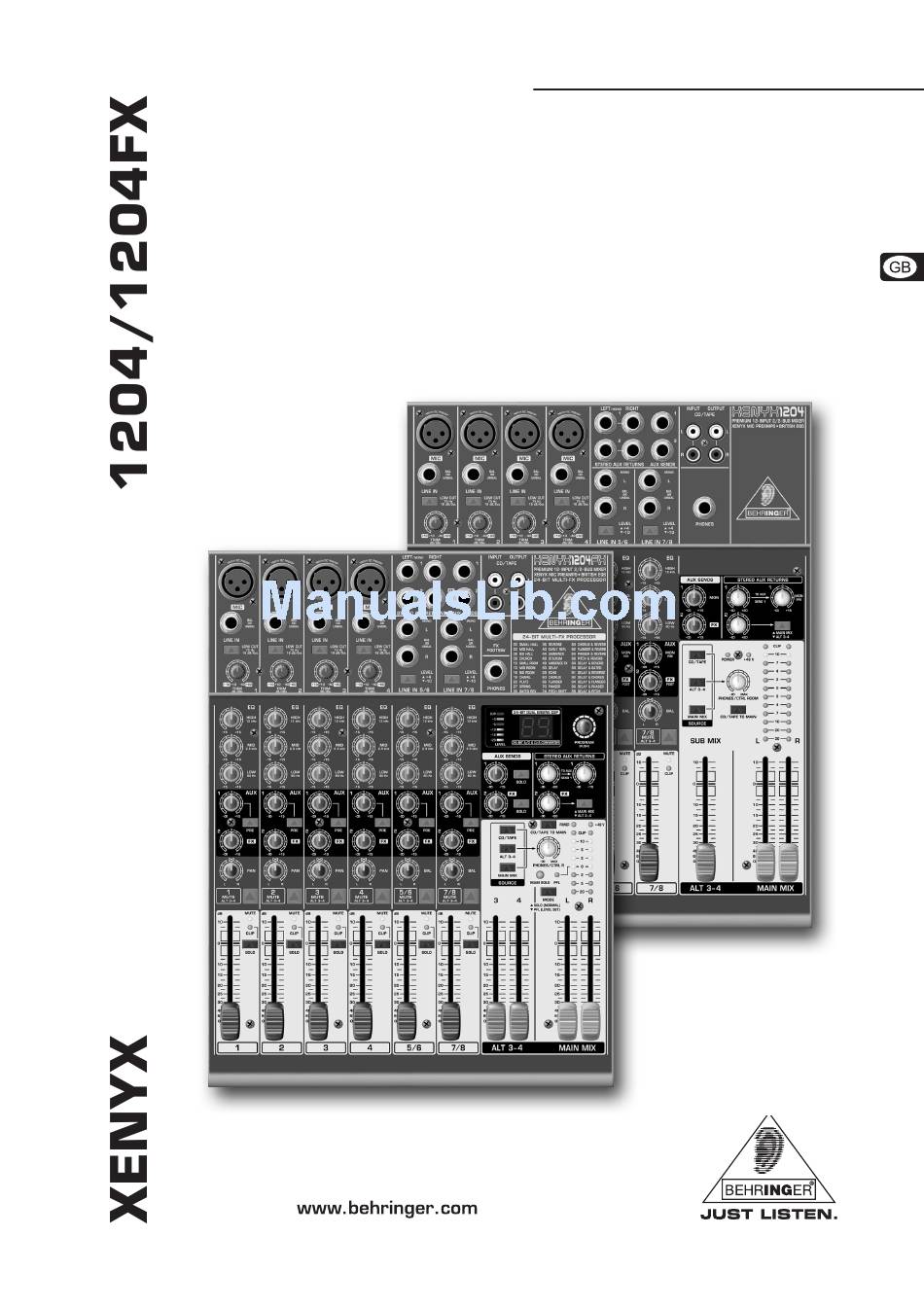

  • Page 1 User’s Manual Version 1.0 January 2006...

  • Page 2: Important Safety Instructions

    XENYX 1204/1204FX IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside; refer servicing to qualified personnel. To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture.

  • Page 3: Table Of Contents

    2.3.6 Level meter and monitoring ........................8 2.3.7 Alt 3-4 and main mix fader ........................9 2.4 Rear view of 1204FX/1204 ..........................9 2.4.1 Main mix outputs, Alt 3-4 outputs and control room outputs ..............9 2.4.2 Voltage supply, phantom power and fuse .................... 10 3.

  • Page 4: Introduction

    The XENYX mixing consoles are equipped with a state-of-the- Thanks to the quality and ease of use of your new XENYX art switched-mode power supply ( ). Unlike conventional mixing console you’ll soon come to appreciate that I, both...

  • Page 5: General Mixing Console Functions

    XLR connector and also features switchable +48 V purposes and to avoid over-heating please do not place your phantom power supply for condenser microphones. The XENYX mixing console on high-temperature devices such as radiators preamps provide undistorted and noise-free gain as is typically or power amps.

  • Page 6: Equalizer

    In the 1204FX, aux send 1 can be switched pre-fader and is components (75 Hz, 18 dB/octave). thus particularly suitable for setting up monitor mixes. In the 1204, the first aux send is labeled MON and is permanently switched pre-fader. Use the TRIM control to adjust the input gain. This control should always be turned fully counterclockwise whenever you connect or disconnect a signal source to one of the inputs.

  • Page 7: Stereo Channels

    XENYX 1204/1204FX 2.3.1 Aux sends 1 and 2 The SOLO switch (1204FX only) is used to route the channel signal to the solo bus (Solo In Place) or to the PFL bus (Pre Fader Listen). This enables you to monitor a channel signal without affecting the main output signal.

  • Page 8: Stereo Aux Return

    2 track machine (e.g. DAT recorder). They can also be used as stereo line input. Alternatively, the output signal of a second XENYX or BEHRINGER ULTRALINK PRO MX882 can also be connected. If you connect a hi-fi amplifier with a source selection switch to the CD/TAPE INPUT, you can easily switch between additional sources (e.g.

  • Page 9: Alt 3-4 And Main Mix Fader

    XENYX 1204/1204FX The red “+48 V” LED lights up when the phantom power supply The MAIN SOLO LED lights up as soon as a channel or aux is switched on. The phantom power supply is necessary for send solo switch is pressed. The MODE switch also has to be condenser microphones and is activated using the switch on set at “Solo”.

  • Page 10: Voltage Supply, Phantom Power And Fuse

    XENYX 1204/1204FX 3, 5 and 7 and in the second pass, on tracks 2, 4, 6 and 8. 3. DIGITAL EFFECTS PROCESSOR The control room output is normally connected to the monitor system in the control room and provides the stereo mix or, when required, the solo signal.

  • Page 11: Installation

    XENYX 1204/1204FX 4. INSTALLATION 4.1 Rack mounting The packaging of your mixing console contains two 19" rack mount wings which can be installed on the side panels of the console. Before you can attach the rack mount wings to the mixing console, you need to remove the screws holding the left and right side panels.

  • Page 12: Specifications

    XENYX 1204/1204FX 5. SPECIFICATIONS Type XLR, electronically balanced Type XLR, electronically balanced, Impedance approx. 240 W bal. / 120 W unbal. discrete input circuit Max. output level +28 dBu Mic E.I.N. (20 Hz - 20 kHz) @ 0 W source resistance -134 dB / 135.7 dB A-weighted...

  • Page 13: Warranty

    XENYX 1204/1204FX 2. If the product needs to be modified or adapted in order to 6. WARRANTY comply with applicable technical or safety standards on a national or local level, in any country which is not the country for which the product was originally developed and manufactured, this 1.
