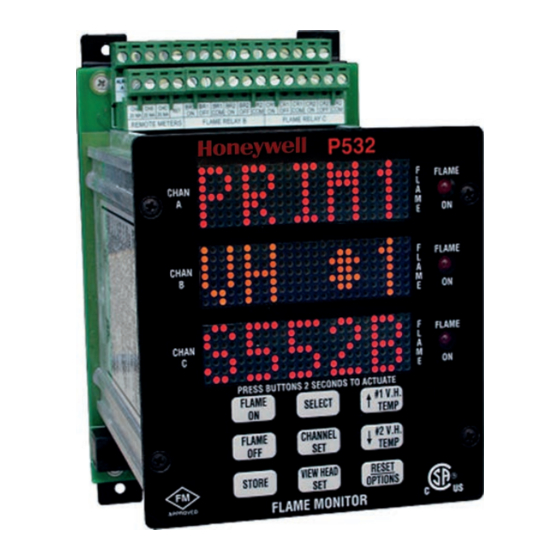

MODEL P531, P532 AND P532UI
FLAME MONITOR
OPERATING MANUAL
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Need help?
Do you have a question about the P532 and is the answer not in the manual?
Ask a question
Questions and answers
Related Manuals for Honeywell P532
Monitor Honeywell P531 Operating Manual
Flame monitor (27 pages)
Monitor Honeywell PTI-610 Installation And Operating Instructions Manual
Electronic temperature display (16 pages)
Monitor Honeywell Bendix/King KMD 850 Pilot's Manual Addendum
Digital weather radar function (21 pages)
Monitor Honeywell SPM Technical Handbook
Single point monitor (64 pages)
Monitor Honeywell E3Point User Manual
Network gas monitor (104 pages)
Monitor Honeywell S7760A User Manual
Command display for rapidzone solution (12 pages)
Monitor Honeywell NOTIFIER NCD Instruction Manual
Network control display (40 pages)
Monitor Honeywell NOTIFIER LCD-160 Manual
Liquid crystal display (48 pages)
Monitor Honeywell SV2 Series Installation Instructions Manual
Valve programming tool (44 pages)
Monitor Honeywell NOTIFIER FMM-1 Installation And Maintenance Instructions
Monitor module (2 pages)
Monitor Honeywell BW RigRat User Manual
Local area gas monitor (76 pages)
Monitor Honeywell MeshGuard FTD-2000 User Manual
(46 pages)
Monitor Honeywell VC4 User Manual
4-point continuous monitor (184 pages)
Monitor Honeywell 7800 SERIES Manual
Keyboard display module (21 pages)
Monitor Honeywell S7999D Quick Manual
Touchscreen display (13 pages)
Monitor Honeywell S7999B Manual
System display (77 pages)
Summarization of Contents
DESIGN FEATURES OVERVIEW
Viewing Head Selection
How to connect and assign viewing heads to channels.
User Interface Overview
Overview of the front panel buttons and user interaction.
Default Settings
Channel and Options Defaults
Default parameters for channels, viewing heads, and system-wide settings.
Numerical Configuration
How to navigate and change numerical settings using buttons.
Alternate - Primary Configuration
Display indicators and activation methods for primary/alternate settings.
Default Display and Flame Count
Description of default display and normal flame count ranges.
MENU STRUCTURE
Viewing Head Set Configuration
Options for setting up individual viewing heads, including gains and filters.
Channel Set Configuration
Options for configuring each output channel, including viewing head association.
Channel Configuration Parameters
FFRT, Delay On, Analog Gain Settings
Configuration of flame response time, delay, and analog output gain.
Alarm Set Point & Temperature Alarm
Setting alarm thresholds and configuring viewing head temperature alarms.
Channel Default Reset & Option Menu
Resetting channels and accessing system-wide configuration parameters.
Address, Baud, Power Reset Settings
System settings for communication address, baud rate, and power reset.
FLAME RELAY CONTROL
Flame On/Off Settings & Temperature Display
Configuring flame thresholds and viewing head temperature data.
AUTOMATIC SETUP
Auto Fit Procedure
Automatic adjustment of gain and set points for optimal flame count.
Fit Procedure Steps
Detailed steps for performing the Auto Fit calibration.
Sequence Setup and Procedure
Configuring gain and relay set points using Auto Sequence.
Auto Filter Configuration
Automatic configuration of gain and relay set points for infrared channels.
P531 AND P532UI Operation
P531 Display, Flame Indicators, and Lockout
Information from P531 LEDs, flame status, and lockout indications.
P522 MODE
P522 Mode Operation
How the P532 behaves in reduced feature P522 mode.
INFRARED GAIN
Gain Boundaries
Table of transitions for electrical gain adjustments on S55xx heads.
INSTALLATION NOTES
Mounting, Power, and Remote Meter Connections
Physical installation, power supply, and remote meter wiring.
Relay and Viewing Head Connections
Wiring for various relays and connecting viewing heads.
Alternative Settings & P522 Mode Jumper
Connecting switches for alternate settings and jumper for P522 mode.
TROUBLESHOOTING NOTES
Display Blank and Single Line Blank Issues
Diagnosing and resolving blank or partially blank display problems.
Viewing Head Not Listed Troubleshooting
Steps for when a viewing head is not recognized or listed.
Channel Lockout and HOT Display Issues
Diagnosing persistent channel lockouts and 'HOT' viewing head warnings.
CODE Display Error
Meaning of the CODE display and potential causes of processor failure.
MODBUS PROTOCOL
Legacy Modbus Support and Extensions
Register map for legacy Modbus and additional registers for RS-422 protocol.
Alternate Viewing Head & Alarm Registers
Modbus registers for alternate viewing head settings and alarm set points.
Advanced Flame Counts & Channel Registers
Modbus registers for S550A flame counts and channel status.
Channel Primary/Alternate Read/Write Registers
Modbus registers for configuring primary and alternate channel settings.
Alternate Alarm Registers & Switch Register
Modbus registers for alternate alarm set points and primary/alternate mode switching.
SPECIFICATIONS
Electrical and Output Specifications
Input power, backup voltage, and output relay/signal details.
Input and Serial Communications Specs
Details on isolated select inputs, aux mode, and serial communication parameters.
RS-232, Flame, Compatibility, and Fuses
Specifications for RS-232, flame detection, viewing head compatibility, and fuses.
Cleaning, Cable, and Environmental Specs
Maintenance, cable requirements, and operating environmental conditions.
Vibration Specifications
Vibration resistance ratings for the unit.
