Installation Guide Overview
Notice for Installers
Guidance for qualified service personnel on safety and installation procedures.
Important Safety Instructions
Crucial safety warnings and precautions for product operation and handling.
Electrical Safety Warnings
Specific warnings regarding power source, grounding, lightning protection, and overloads.
Safety Precautions and Handling
Battery Safety and Disposal
Guidelines for safe handling, charging, and disposal of batteries.
Operating Environment and Ventilation
Recommendations for proper placement and air circulation for optimal operation.
Device Protection Measures
Warnings against liquids, foreign objects, and advice on service and moving.
Understanding Your Set-Top
IPTV Features Explained
Introduction to Internet Protocol Television (IPTV) features like DVR and VOD.
Set-Top Model Identification
Information to help users identify their specific Cisco set-top box model.
Initial Setup and Information
Safety First Reminder
Reminder to review important safety instructions before using the set-top.
Serial Number Record
Instructions on locating and recording the set-top's serial number.
Guide Content Overview
Summary of the information covered in the installation guide.
Open Source Software Disclosure
Disclosure regarding open-source software used in the product and license information.
Front Panel: IPV5000/IPV6003 Series
Front Panel Controls and Indicators
Description of Power, LED indicators, and USB port on the front panel.
Hard Disk Drive Operational Caution
Warning regarding safe handling of the set-top when the hard disk drive is active.
Back Panel: IPV5000/IPV6003 Series
Back Panel Connectivity Ports
Explanation of S/PDIF, SCART, HDMI, ETHERNET, USB, Reset, and Power connections.

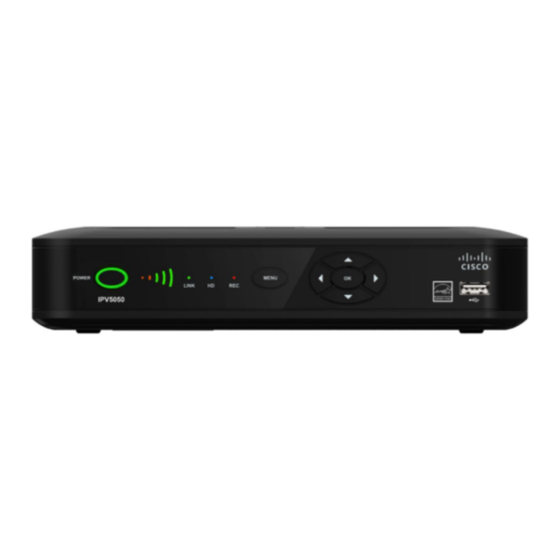

Front Panel: IPV5010/IPV5050 Series
Front Panel Controls and Indicators
Description of Power, LED halo, Signal Strength, LINK, HD, REC, MENU, OK, Arrow Keys, and USB Port.
Back Panel: IPV5010/IPV5050 Series
Back Panel Connectivity Options
Details on F-Con, Pr Pb Y, CVBS, Audio Out, HDMI, NETWORK, OPTICAL, IR, and Power connectors.
Connecting the Set-Top
Home Network Connection Options
Steps for connecting to the home network via coaxial or Ethernet cable.
TV and Peripheral Device Connections
Guidance on connecting to HDTVs, SDTVs, VCRs, and DVD recorders.
Powering the Set-Top and TV
Instruction to plug the set-top and TV into an AC power source.
In-Home Network Setup
Network Connection Diagrams
Diagrams illustrating coaxial and CAT-5 network connection methods.
Connecting to an HDTV
HDTV Connection Types
Overview of HDMI, DVI, YPbPr, and RGB connection requirements for HDTVs.
Connecting to an SDTV
SDTV Connection Types
Overview of YPbPr, SCART, and Video Out connection types for SDTVs.
Alternative Connection Scenarios
Over-the-Air Converter Box Connection
Guidance on connecting an over-the-air converter box to the TV, not the set-top.
IPV5050 Wireless Network Setup
Information on establishing a wireless home network with the IPV5050 set-top.
HDTV Connection: HDMI
HDMI Cable and Connection
Details the use of an HDMI cable for connecting to an HDTV.
HDMI Connection Safety Precautions
Critical warning about unplugging devices before making HDMI connections.
HDTV Connection: DVI
DVI Cable and Adapter Requirements
Lists required cables and adapters for DVI connection to HDTV.
DVI Connection Safety Precautions
Critical warning about unplugging devices before making DVI connections.
HDTV Connection: Component (YPbPr)
Component Cable and Audio Connection
Details component video and audio cables for HDTV connection.
YPbPr Connection Safety Precautions
Critical warning about unplugging devices before making YPbPr connections.
SDTV Connection: Component (YPbPr)
Component Cables for SDTV Connection
Lists component video and audio cables for SDTV connection.
SDTV Component Mode Setting Note
Advises setting the set-top to standard-definition mode for component connection.
Component SDTV Safety Precautions
Critical warning about unplugging devices before making component SDTV connections.
SDTV Connection: RCA
RCA Cable Requirements for SDTV
Specifies RCA video and audio cables for SDTV connection.
RCA SDTV Safety Precautions
Critical warning about unplugging devices before making RCA SDTV connections.
SDTV Connection: SCART
SCART Adapter Cable Requirement
Specifies the MiniDin to SCART adapter cable for SDTV connection.
SCART SDTV Safety Precautions
Critical warning about unplugging devices before making SCART SDTV connections.
Troubleshooting Common Issues
Resolving No Picture Issues
Solutions for problems related to no video output from the set-top.
Addressing Color and Sound Problems
Troubleshooting steps for incorrect color or no audio output.
Preventing Screen Burn-In
Advice on avoiding screen burn-in by managing static images on the display.
Television Technology Explanations
Digital vs. Analog Television
Explanation of the differences between Digital Television (DTV) and analog TV.
SDTV vs. HDTV Standards
Definitions and comparisons of Standard-Definition TV (SDTV) and High-Definition TV (HDTV).
HDTV Broadcasting and Content Availability
Information on HDTV availability and reasons for non-HD content.
HDMI Interface Functionality
Description of the HDMI interface and its audio/video capabilities.
Picture Format Concepts
Screen Type Differences
Explains the distinction between standard-screen and wide-screen HDTVs.
Understanding Aspect Ratio
Defines aspect ratio and its role in TV screen display characteristics.
Screen Resolution and Scanning
Details on screen resolution and scanning methods like progressive and interlaced.
Regulatory Information
FCC Compliance and Declaration
Details on FCC rules, declaration of conformity, and product information.
Canada EMI and Software Notices
Information on Canadian EMI regulations and software usage, disclaimers, and licenses.
Industry Canada and RF Exposure
Industry Canada (IC) Certification
Information about Industry Canada certification and equipment compliance requirements.
Radio Frequency Exposure Guidelines
Details on RF exposure limits and minimum separation distances for compliance.
CE Compliance and Restrictions
EU Declaration of Conformity (R&TTE)
Declaration of conformity with EU directives, including R&TTE, and CE marking.
National Restrictions and Further Information
Information on national restrictions and where to find complete declarations.
