IM682
April, 2004

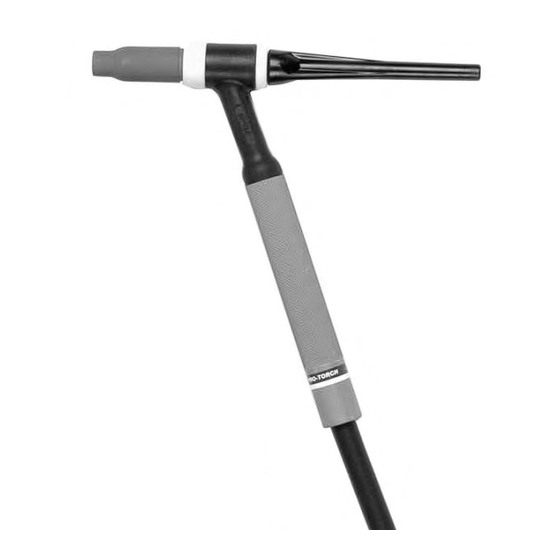

AIR-COOLED TIG TORCHES
PTA-9
PTA-17
PTA-26
PTA-9F
PTA-17V
PTA-26V
PTA-17F
PTA-26F
Safety Depends on You
Lincoln arc welding and cutting
equipment is designed and built
with safety in mind. However, your
overall safety can be increased by
proper installation ... and thought-
ful operation on your part. DO
NOT INSTALL, OPERATE OR
REPAIR
THIS
EQUIPMENT
WITHOUT READING THIS MAN-
UAL AND THE SAFETY PRE-
CAUTIONS
CONTAINED
THROUGHOUT.
And,
most
importantly, think before you act
and be careful.
Date of Purchase:
Model:
Where Purchased:
OPERATOR'S MANUAL
• World's Leader in Welding and Cutting Products •
• Sales and Service through Subsidiaries and Distributors Worldwide •
Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com
