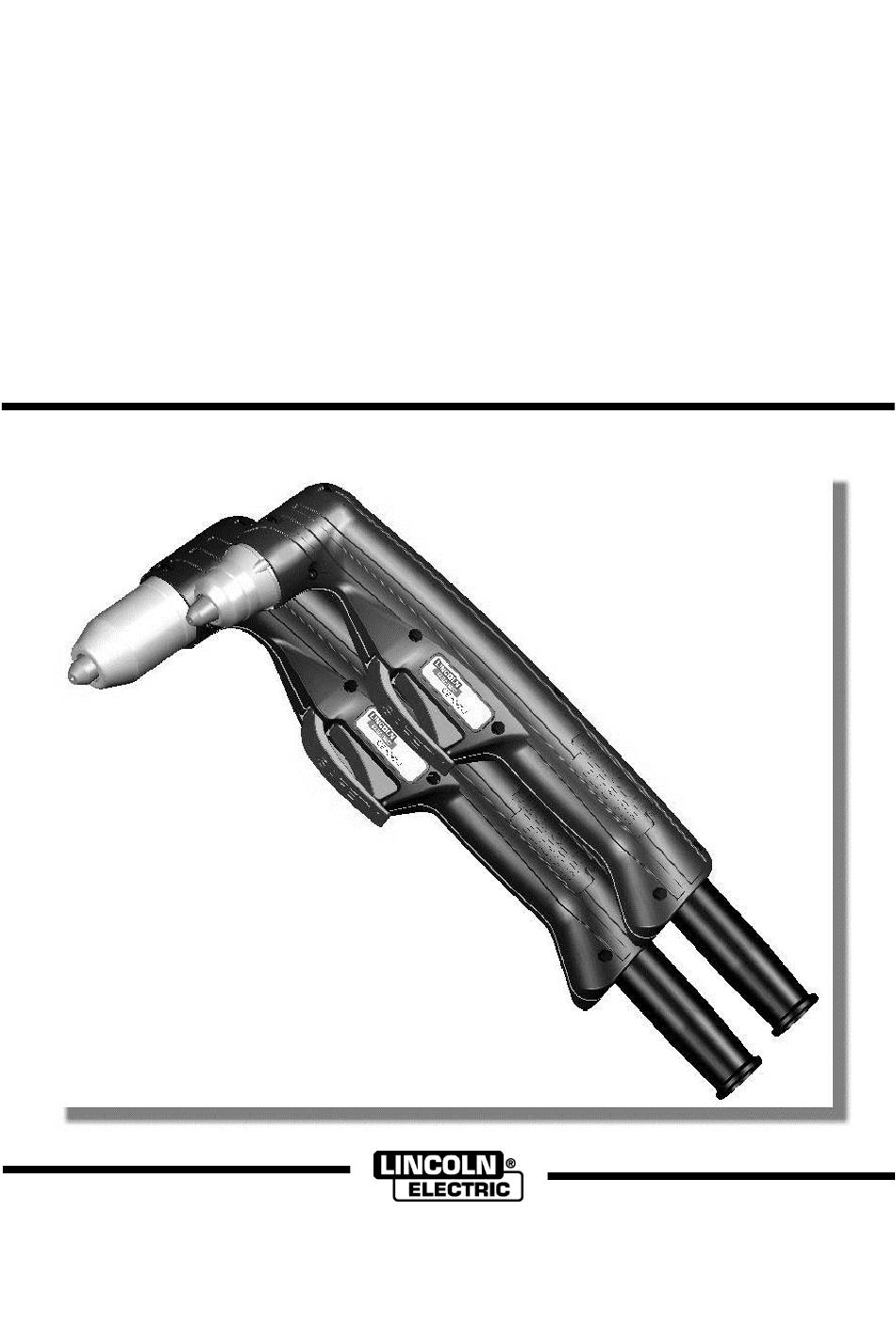

- Page 1 IM2015 04/2016 REV07 LC PLASMA TORCHES, CONSUMABLES & ACCESSORIES LINCOLN ELECTRIC ITALIA S.r.l Via Fratelli Canepa 8, 16010 Serrà Riccò (GE), Italia www.lincolnelectric.eu...
- Page 2 été conçu en conformité avec les normes: og er produsert og testet iht. følgende standarder: EN 60974-1:2012; EN 60974-10:2014 20.04.2016 Piotr Spytek Operations Director Lincoln Electric Bester Sp. z o.o., ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland 07/11...
- Page 3 été conçu en conformité avec les normes: og er produsert og testet iht. følgende standarder: EN 60974-1:2012; EN 60974-10:2014 20.04.2016 Piotr Spytek Operations Director Lincoln Electric Bester Sp. z o.o., ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland 07/11...
- Page 4 07/06 Do not dispose of electrical equipment together with normal waste! In observance of European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE) and its implementation in accordance with national law, electrical equipment that has reached the end of its life must be collected separately and returned to an environmentally compatible recycling facility.
- Page 5 LC25 LC25 Torch (Hand 3m) (1pc) PTH-C25A-SL-3MR Handle (1pc) W0300601R Head (1pc) W0300615R Cable (3m) (1pc) W0300616R Electrode Gas Distr. Retaining Cap Spacer (blister 5pcs) (blister 3pcs) (blister 5pcs) (blister 1pc) (blister 1pcs) Cutting process W03X0893 W03X0893 W03X0893 W03X0893 W03X0893...
- Page 6 LC40 & LC60 LC40 LC60 Torch (Hand 6m) (1pc) PTH-040A-CX-6MA Torch (Hand 7.5m) (1pc) PTH-060A-CX-7M5A Torch (Hand 15m) (1pc) PTH-040A-CX-15MA PTH-060A-CX-15MA Handle (1pc) W0300601R Head (1pc) W0300600R Cooling Kit (blister 1pc) W03X0893-4R Cable (7.5m) (1pc) W0300604R Cable (15m) (1pc) W0300606R Connector (1pc) W03X0934-2R...
- Page 7 LC40M & LC60M – LC40M GEAR RACK & LC60M GEAR RACK LC40M LC60M LC40M LC60M GEAR RACK GEAR RACK PTM-040A- PTR-040A- Torch (Machine 6m) (1pc) CX-6MA CX-6MA PTM-060A- Torch (Machine 7.5m) (1pc) CX-7M5A PTM-040A- PTR-040A- PTM-060A- Torch (Machine 15m) (1pc) CX-6MA CX-6MA CX-15MA...
- Page 8 LC65 LC65 Torch (Hand 7.5m) (1pc) PTH-061A-CX-7M5A Torch (Hand 15m) (1pc) PTH-061A-CX-15MA Handle (1pc) W0300609R Head (1pc) W0300608R Cooling Kit (blister 1pc) W03X0893-49R Cable (7.5m) (1pc) W0300604R Cable (15m) (1pc) W0300606R Connector (1pc) W03X0934-4R Electrode Gas Distr. Retaining Cap Spacer Shield Cap (blister 5pcs) (blister 3pcs)
- Page 9 LC65M – LC65M GEAR RACK LC65M LC65M GEAR RACK Torch (Machine 7.5m) (1pc) PTM-061A-CX-7M5A PTR-061A-CX-7M5A Torch (Machine 15m) (1pc) PTM-061A-CX-15MA PTR-061A-CX-15MA Positioning tube (1pc) W0300603R W0300624R Head (1pc) W0300610R Cooling Kit (blister 1pc) W03X0893-49R Cable (7.5m) (1pc) W0300605R Cable (15m) (1pc) W0300607R Connector...
- Page 10 LC80 & LC100 LC80 LC100 Torch (Hand 7.5m) (1pc) PTH-080A-CX-7M5A PTH-100A-CX-7M5A Torch (Hand 15m) (1pc) PTH-080A-CX-15MA PTH-100A-CX-15MA Handle (1pc) W0300609R Head (1pc) W0300608R Cooling Kit (blister 1pc) W03X0893-49R Cable (7.5m) (1pc) W0300611R Cable (15m) (1pc) W0300613R Connector (1pc) W03X0934-7R W03X0934-8R Electrode Gas Distr.
- Page 11 LC80M & LC100M – LC80M GEAR RACK & LC100 M GEAR RACK LC80M LC100M LC80M LC100M GEAR RACK GEAR RACK PTM-080A- PTM-100A- Torch (Machine 7.5m) (1pc) CX-7M5A CX-7M5A PTM-080A- PTM-100A- Torch (Machine 15m) (1pc) CX-15MA CX-15MA Positioning tube (1pc) W0300603R W0300603R Head (1pc)
- Page 12 Il ricambio del LC105 corpo torcia LC105 Torch (Hand 7.5m) (1pc) PTH-101A-CX-7M5A W0300618R arriva Torch (Hand 15m) (1pc) PTH-101A-CX-15MA completo di Handle (1pc) W0300609R Head (1pc) W0300618R insulation KIT Insulation Kit (blister 1pc) W03X0893-71R Cable (7.5m) (1pc) W0300620R Cable (15m) (1pc) W0300621R Connector...
- Page 13 LC105M – LC105M GEAR RACK LC105M LC105M GEAR RACK Torch (Machine 7.5m) (1pc) PTM-101A-CX-7M5A PTR-101A-CX-7M5A Torch (Machine 15m) (1pc) PTM-101A-CX-15MA PTR-101A-CX-15MA Positioning tube (1pc) W0300603R W0300624R Head (1pc) W0300619R Insulation Kit (blister 1pc) W03X0893-71R Cable (7.5m) (1pc) W0300622R Cable (15m) (1pc) W0300623R Connector...
- Page 14 LC25 - LC40 - LC60 - LC65 - LC80 - LC100 - LC105 LC Circle Kit (optional) W0300699A LC Circle Kit (optional)
- Page 15 Torches Dimensions...
- Page 19 DO NOT PRINT THIS PAGE IN THE MANUAL. REV 0: New manual (LC40, LC40M, LC60, LC60M, LC80, LC80M, LC100, LC100M). REV 1: Added the LC25, LC65, LC65M, LC105 and LC105M. REV 2: Added the LC105 stand-off cutting consumables. REV 3: ...
