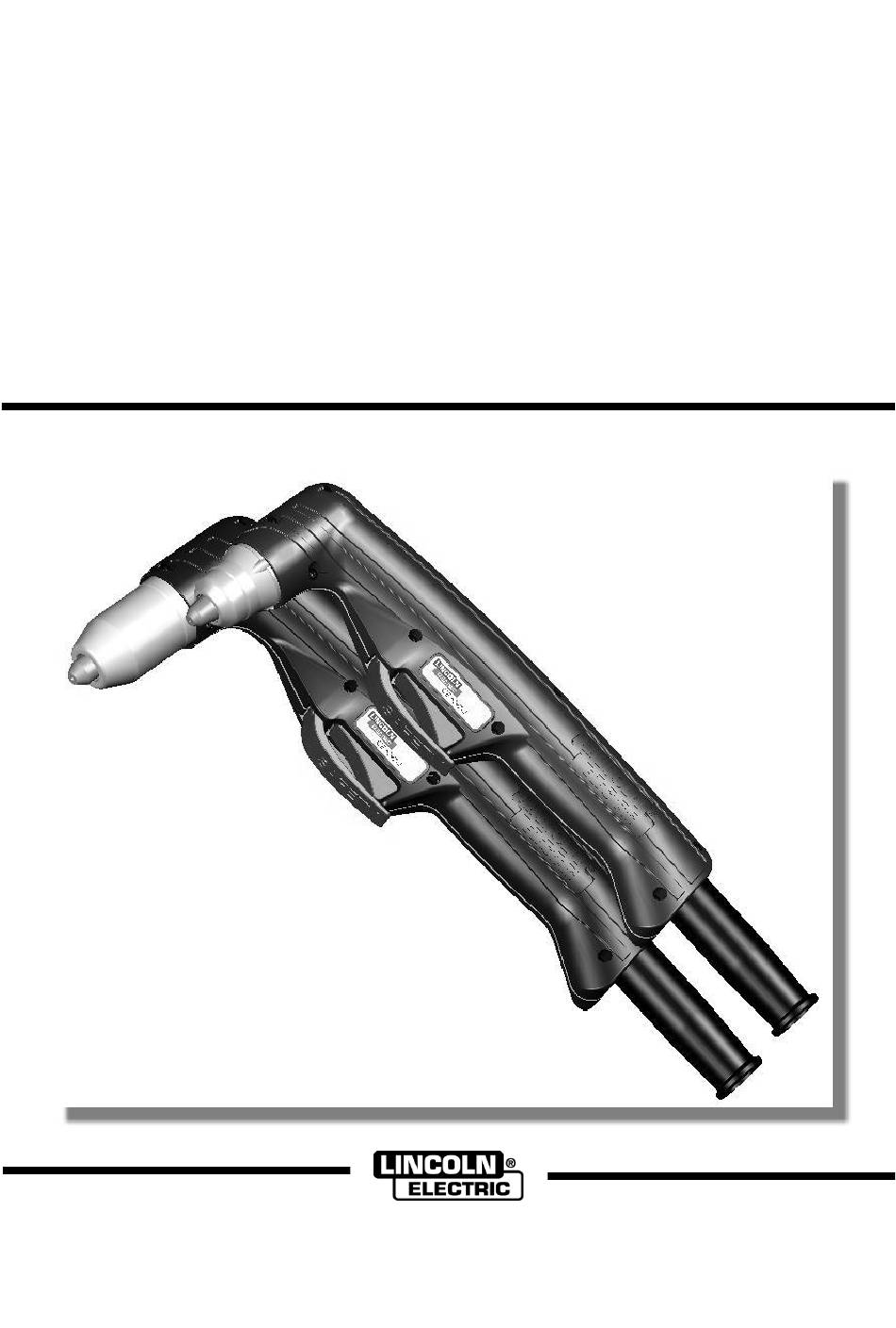

- Page 1 IM2015 11/2021 REV09 LC PLASMA TORCHES CONSUMABLES & ACCESSORIES Lincoln Electric Iberia S.L. Ctra. Laureà Miró 396-398 08980 Sant Feliu de Llobregat (Barcelona), Spain w ww.lincolnelectric.eu...
-
Page 2: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Manufacturer and technical documentation holder: Lincoln Electric Iberia S.L. Ctra. Laureà Miró 396-398 08980 Sant Feliu de Llobregat (Barcelona) Spain This declaration of conformity is issued under the sole responsibility of the manufacturer. Object of the declaration:... - Page 3 Do not dispose of electrical equipment together with normal waste! In observ ance of European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE) and its implementation in accordance with national law, electrical equipment that has reached the end of its life must be collected separately and returned to an env ironmentally compatible recycling facility.
- Page 4 Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the follow ing explanations of the w arning symbols. Lincoln Electric is no t responsible for damages caused by improper installation, improper care or abnormal operation.
- Page 5 & copper using the LINCOL ELECTRIC plasma cutters: Invertec® PC- Tomahawk® Tomahawk® 1025 1538 K12038-1 K12048-1 K12039-1 Product Number LC25 (Hand) PTH-C25A-SL-3MR PTH-061A-CX-7M5A LC65 (Hand) PTH-061A-CX-15A PTM-061A-CX-7M5A LC65M (Machine) PTM-061A-CX-15A ...
-
Page 6: Technical Specification

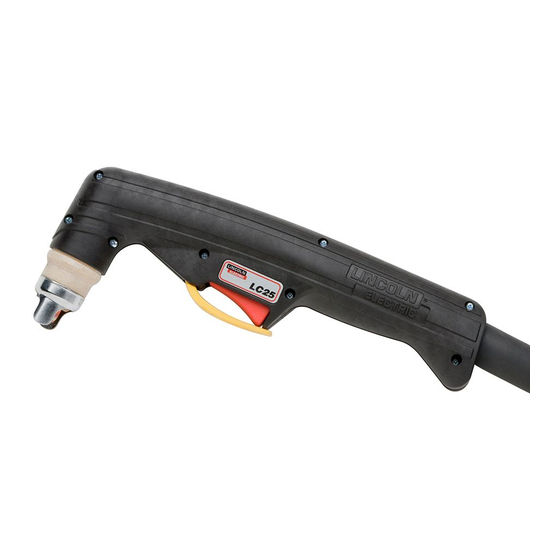

Technical specification Method Rated Type of gas, Lengh Type of Max and Connection of cutting current / flow rate of cable cooling mini gas Duty cycle and/or pressure operating (inlet) pressure Hand 25 A @ Air, 96 l/min 4,8 bar / Direct PTH- C25A-SL-... - Page 7 LC25 LC25 PTH-C25A-SL-3MR Torch (Hand 3m) (1pc) W0300601R Handle (1pc) W0300615R Head (1pc) W0300616R Cable (3m) (1pc) Electrode Gas Distr. Retaining Cap Spacer (blister 5pcs) (blister 3pcs) (blister 5pcs) (blister 1pc) (blister 1pcs) Cutting process W03X0893 W03X0893 W03X0893 W03X0893 W03X0893...
- Page 8 LC65 LC65 PTH-061A-CX-7M5A Torch (Hand 7.5m) (1pc) PTH-061A-CX-15MA Torch (Hand 15m) (1pc) W0300609R Handle (1pc) W0300608R Head (1pc) W03X0893-49R Cooling Kit (blister 1pc) W0300604R Cable (7.5m) (1pc) W0300606R Cable (15m) (1pc) W03X0934-4R Connector (1pc) Electrode Gas Distr. Retaining Cap Spacer Shield Cap (blister 5pcs) (blister 3pcs)
- Page 9 LC65M – LC65M GEAR RACK LC65M LC65M GEAR RACK PTM-061A-CX-7M5A PTR-061A-CX-7M5A Torch (Machine 7.5m) (1pc) PTM-061A-CX-15MA PTR-061A-CX-15MA Torch (Machine 15m) (1pc) W0300603R W0300624R Positioning tube (1pc) W0300610R Head (1pc) W03X0893-49R Cooling Kit (blister 1pc) W0300605R Cable (7.5m) (1pc) W0300607R Cable (15m) (1pc) W03X0934-4R Connector...
- Page 10 LC105 LC105 Torch (Hand 7.5m) (1pc) PTH-101A-CX-7M5A PTH-101A-CX-15MA Torch (Hand 15m) (1pc) W0300609R Handle (1pc) W0300618R Head (1pc) W03X0893-71R Insulation Kit (blister 1pc) W0300620R Cable (7.5m) (1pc) W0300621R Cable (15m) (1pc) Connector (1pc) W03X0934-8R Electrode Gas Distr. Retaining Cap Shield Cap (blister 5pcs) (blister 2pcs) (blister 5pcs)
- Page 11 LC105M – LC105M GEAR RACK LC105M LC105M GEAR RACK PTM-101A-CX-7M5A PTR-101A-CX-7M5A Torch (Machine 7.5m) (1pc) PTM-101A-CX-15MA PTR-101A-CX-15MA Torch (Machine 15m) (1pc) W0300603R W0300624R Positioning tube (1pc) W0300619R Head (1pc) W03X0893-71R Insulation Kit (blister 1pc) W0300622R Cable (7.5m) (1pc) W0300623R Cable (15m) (1pc) W03X0934-8R Connector...
- Page 12 LC105M – LC105M GEAR RACK LC105M LC105M GEAR RACK PTM-101A-CX-7M5A PTR-101A-CX-7M5A Torch (Machine 7.5m) (1pc) PTM-101A-CX-15MA PTR-101A-CX-15MA Torch (Machine 15m) (1pc) W0300603R W0300624R Positioning tube (1pc) W0300619R Head (1pc) W03X0893-71R Insulation Kit (blister 1pc) W0300622R Cable (7.5m) (1pc) W0300623R Cable (15m) (1pc) W03X0934-8R Connector...
- Page 13 Torches Dimensions...
