Route de Marthon
16380 CHAZELLES
℡ 05.45.23.50.50
℡
℡
℡
05.45.23.53.09
www.chazelles.com

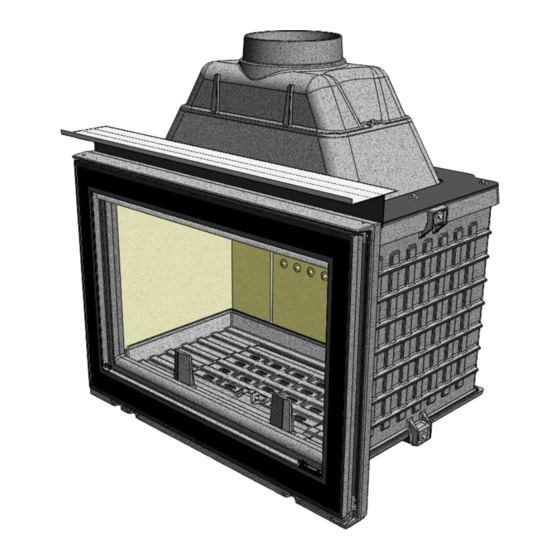

General instructions for installation and use of
Chazelles HP inserts
Instructions for installation and use. Reproduction prohibited 11/ 2012 version 3.0 TAM
These instructions contain 23 pages numbered from 1 to 23.
The contents should be read and followed for installation
and, above all, for use of the appliance.
Cheminées de Chazelles reserves the right to modify
installation and use instructions for installation and use at any
time.
Diagrams and images are not contractual. Cheminées de
Chazelles reserves the right to modify or delete them in order
to improve understanding.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP700 and is the answer not in the manual?

Questions and answers

Related Manuals for chazelles HP700

Summary of Contents for chazelles HP700

  • Page 1 Diagrams and images are not contractual. Cheminées de Chazelles reserves the right to modify or delete them in order to improve understanding. Instructions for installation and use. Reproduction prohibited 11/ 2012 version 3.0 TAM...
  • Page 2 RANGE OF INSERTS HP HP530 HP700 HP800 Instructions for installation and use. Reproduction prohibited 11/ 2012 version 3.0 TAM...
  • Page 3 3.2 – Laying out the underbase 7.2 – Chimney fires 3.3 – Installation of the underbase 7.3 – After-sales service 3.4 – Combustion air inlets for Chazelles Design inserts 3.5 – Installation of a Chazelles Design insert 8) Contractual Guarantee……………………………………………………………22 3.5.1 General points 8.1 –...

  • Page 4: General Points

    1) Warning 2) General points 2.1 – Flue Set-up of a fireplace equipped with a Chazelles insert must be carried 2.1.1 General points out in compliance with the regulations in force and with all documents Flues must be in compliance with the 1969 directive, and with the rules supplied with the appliance.
  • Page 5 2.1.2 Dimensioning 2.1.5.2 Stack outlet on terrace The flue must be dimensioned in compliance with the EN 13384-1 standard, using: In the case of a terrace roof or roof with a slope less than 15°, the discharge end must be located at least 1.2 metres from the outlet on the roof covering the abacuses issued by the CSTB, and 1 metre above the acroterion if this latter is more than 0.2 metres.

  • Page 6: Safety Distance

    When the distance stated by the manufacturer is different from that featured in the tables below, the flue must be installed at the greater of the two 2.1.7 Flue covering values. 2.1.7.1 Occupied or habitable areas The surface temperature of the outside facing of the flue must not 2.2.2 Concrete or terracotta bricked flue exceed 50°C in habitable areas.
  • Page 7 Thermal insulation Ventilated air space 2.3 – Fireplace surround 2.3.1 General points All combustible materials must be removed from the fireplace surround. 2.3.2 Flooring The floor must have adequate weight-bearing capacity at the spot selected for the fireplace. It must be flat and incombustible. If this is not the case –...

  • Page 8: Combustion Air Supply

    2.4 – Combustion air supply 2.4.2 Dimensioning The combustion air inlet must have a cross-section of at least 2.4.1 General points 200 cm , unless stated otherwise by the manufacturer. Operation of a fireplace equipped with an insert requires a supply of 2.4.3 Air supply intake air over and above that necessary to renewal of regulation air in the premises.
  • Page 9 You must ensure that you comply with all necessary arrangements for 3.4 – Combustion air inlets for Chazelles Design inserts the combustion air inlet. 3.3 – Installation of the underbase...
  • Page 10 3.5 – Installation of a Chazelles Design insert 3.5.1 General points Unauthorised modification of any kind to a Chazelles Set-up of the insert must comply with national regulatory directives. insert is prohibited. 3.5.2 Specific instructions for installation 3.5.2.1 General points...
  • Page 11 Automatic air-flap control: open position. In all cases, it is essential that the hood ventilation air intake be ensured by the underbase or, if necessary, by the appliance’s jambs or surround. Automatic air-flap control: closed position. 3.5.2.5. Checking the mechanism and operation of the primary air damper - Mechanism primary air damper The purpose of the primary air damper regulating mechanism is to regulate...
  • Page 12 3.5.2.5.1 Mechanism secondary air damper Fireplace with fairing option: it must be checked that an air gap of a minimum thickness of 30 mm, if applicable cutting across the fairing with a minimum of 10 mm between the outside face of the fairing and the insulator, The purpose of the mechanism regulating the secondary air damper is to ensure sweeping of the window to minimise is made between the insulator and the appliance.
  • Page 13 4.1 – General points 3.7 – Insulation of the surround Connecting ducts for Cheminées de Chazelles inserts must be metal. Aluminium-plated steel must not be used. The diameter of the connecting 3.7.1 Incombustible surrounds duct must be at least equal to that of the appliance’s pipe or sleeve.

  • Page 14: Direction Change

    Expansion of the connecting duct, particularly at junctions, must be 4.3 – Direction change ensured without negatively affecting its airtightness or its mechanical performance. An angle of direction change is permitted as long as it does not exceed 45°. The connecting duct or the insulator that might surround it must be 4.4 –...
  • Page 15 5) Installation and insulation of the wooden 5.2 – Construction of the hood beam and construction of the hood 5.2.1 General points 5.1 – Wooden beam The hood is constructed in the set-up area. The obligatorily decompressed hood must be constructed of incombustible or A2-s1, d0 insulating All our beams are delivered with a few extra centimetres to allow for materials.

  • Page 16: Recommended Fuels

    Don’t make too strong a fire! The first lighting should be moderate and should not burn for more than three hours. Cheminées de Chazelles inserts are designed to operate using During first lightings, solvents in the paintwork may give off unpleasant firewood logs only.
  • Page 17 6.4.2 Lighting - When the load of “wood slivers” is well alight, open the door, load the - Depending on appliance model, place screwed up paper and appliance with the recommended fuel, and work the controls until you slivers of very dry wood on the grille or hearth, then pieces of split obtain the desired power.
  • Page 18 Primary air damper in mid position and secondary air damper 6.5 – Restarting the fire in mid position. Manipulating the moveable grate. - For rapid lighting, restart the fire using wood slivers: load the appliance, leaving the door slightly ajar for a few minutes if you wish to speed up the For long-period heating, with low brightness use one or two unsplit procedure, and keeping a watch on things;...

  • Page 19: Maintenance

    - Alternate periods of slow burning with returns to normal brightness. Pick for HP fireplace moveable grate. For manipulating the moveable - Use small loads by preference. grate. 6.6 – Controls (depending on version of product) Accessories are at your disposal – use them to avoid getting burnt! The scraper (supplied depending on model): for removing ashes and cleaning the appliance.

  • Page 20: Safety Rules

    - Spray the window with a cleaning product designed for the Some models are equipped with a draught shutter which must be purpose (ask your retailer for advise), complying with the removed if it is detachable! (for reinsertion of baffle and draught shutter, instructions on the label.

  • Page 21: Chimney Fires

    Following a long period on non-use, check that flues are unobstructed (insect nests for example) before relighting. 7.3 – After-sales service We recommend that you only use replacement parts supplied by Cheminées de Chazelles Instructions for installation and use. Reproduction prohibited 11/ 2012 version 3.0 TAM...

  • Page 22: Legal Guarantee

    Cheminées de Chazelles is not responsible. recommendations set out in the instructions supplied with the Consequently, Cheminées de Chazelles cannot be held responsible for...
  • Page 23 GUARANTEE CERTIFICATE VENDOR: document to be returned within the month following The purchaser designated hereunder acknowledges purchase at the sales outlet for the appliance his/her awareness of the various informational documents on use and maintenance to ensure proper operation of the appliance Reference:…………………………………………………………………...
