Route de Marthon
16380 CHAZELLES
℡ +33 5.45.23.50.50
℡
℡
℡
+33 5.45.23.53.09
www.chazelles.com
General instructions for installation and use of Chazelles
Instructions for installation and use. Reproduction prohibited. July2010 version 2.0 TAM

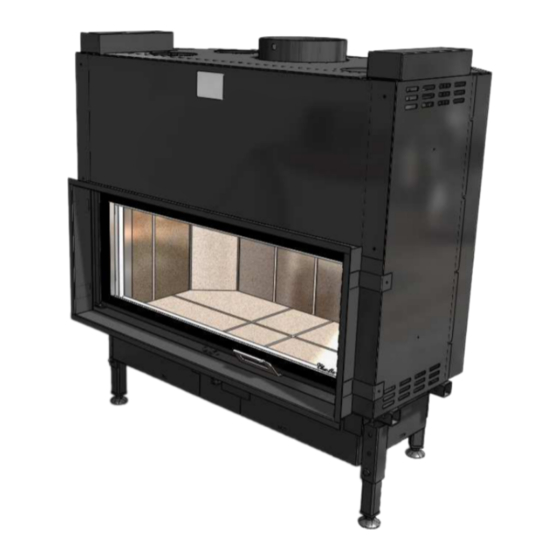

Design inserts
These instructions contain 21 pages numbered from 1 to 21.
The contents should be read and followed for installation and,
above all, for use of the appliance.
Cheminées de Chazelles reserves the right to modify installation
and use instructions for installation and use at any time.
Diagrams and images are not contractual. Cheminées de
Chazelles reserves the right to modify or delete them in order to
improve understanding.
1
Advertisement
Table of Contents
Related Manuals for chazelles D1200 HORIZON
Summary of Contents for chazelles D1200 HORIZON
- Page 1 Diagrams and images are not contractual. Cheminées de Chazelles reserves the right to modify or delete them in order to improve understanding. Instructions for installation and use. Reproduction prohibited. July2010 version 2.0 TAM...
- Page 2 RANGE OF DESIGN INSERTS D1350 D1000 D1200 D1200 HORIZON D1000 3V D1000 VAD D1000 VAG DDF1000 DDF1200 DC840 D850-180° DH 840 D1000 EPI Instructions for installation and use. Reproduction prohibited. July2010 version 2.0 TAM...
- Page 3 3.2 – Laying out the underbase 7.1 – General points 3.3 – Installation of the underbase 7.2 – Chimney fires 3.4 – Combustion air inlets for Chazelles Design inserts 7.3 – After-sales service 3.5 – Installation of a Chazelles Design insert 8) Contractual Guarantee…………………………………………………………………….……19 3.5.1 General points...
-
Page 4: General Points
1) Warning 2) General points 2.1 – Flue Set-up of a fireplace equipped with a Chazelles insert must be carried 2.1.1 General points out in compliance with the regulations in force and with all documents Flues must be in compliance with the 1969 directive and with the rules supplied with the appliance. - Page 5 2.1.5 Flue discharge end 2.1.2 Dimensioning 2.1.5.1 Stack outlet on roofing The flue must be dimensioned in compliance with the EN 13384-1 standard, using: The stack outlet must be located 0.4 metres above any part of the building less than eight metres distant. the abacuses issued by the CSTB, 2.1.5.2 Stack outlet on terrace or calculation software...
- Page 6 2.1.7 Flue covering When the distance stated by the manufacturer is different from that featured in the tables below, the flue must be installed at the greater of the two 2.1.7.1 Occupied or habitable areas values. The surface temperature of the outside facing of the flue must not exceed 50°C in habitable areas.
-
Page 7: Fireplace Surround
Ventilated air space Thermal insulation 2.3 – Fireplace surround thermique 2.3.1 General points All combustible materials must be removed from the fireplace surround. 2.3.2 Flooring The floor must have adequate weight-bearing capacity at the spot selected for the fireplace. It must be flat and incombustible. If this is not the case –... -
Page 8: Combustion Air Supply
2.4.5 Discharge end of combustion air inlet 2.4 – Combustion air supply 2.4.1 General points The discharge end of the combustion air inlet must be positioned either directly in the fireplace or near to it. It may be equipped with a closable grille Operation of a fireplace equipped with an insert requires a supply of when it discharges directly into the room, in order to minimise heat loss air over and above that necessary to renewal of regulation air in the... - Page 9 Check dimensions, levels and squarings of each course. Also check the presence of combustion air supply and passage of convection air. Unauthorised modification of any kind to a Chazelles insert is prohibited. Instructions for installation and use. Reproduction prohibited. July2010 version 2.0 TAM...
- Page 10 3.5.2 Specific instructions for installation 3.5.2.4 Checking the door raising and rotation mechanism (depending 3.5.2.1 General points on version of product) Various detachable parts (baffle, refractory bricks,etc…) must be removed from the appliance in order to avoid mechanical shock with For transport reasons, the counterweight in appliances operating ‘door the appliance window during installing the insert on its support, it is open’...
- Page 11 Settings: necessary for air to pass (30 mm minimum) between the surround insulation Position 1: the primary air damper is fully closed! and the back of the appliance. The fireplace jambs, hollow or marble jambs in particular, must be protected from heat (thermal radiation) by a material with a minimum thermal resistance of 0.7m .K/W at 50°C (or of 0.4m...
- Page 12 When the appliance is delivered, install the removable feet in the feet support.Then regulate the height of the product according to the Connecting ducts for Cheminées de Chazelles inserts must be metal. needs (Pos1:mini ; Pos 2 : intermediary ; Pos 3 : max) Aluminium-plated steel must not be used.
-
Page 13: Direction Change
4.2 – Variation of cross-section The junction must be carried out on an insulated metal flue using the connecting device specially designed by the manufacturer of the insulated If the cross-section of the flue or casing, albeit adequate, differs from flue. - Page 14 5.2.2 Special precautions 5) Installation and insulation of the wooden beam and construction of the hood Before constructing the hood, the following precautions must be taken: - Check whether the sealing of the pediment, the beam or the metal 5.1 – Wooden beam casement can support the hood.
-
Page 15: Recommended Fuels
Cheminées de Chazelles inserts are designed to operate using Don’t make too strong a fire! The first lighting should be moderate and firewood logs only. Maximum log length for the range of appliances is should not burn for more than three hours. - Page 16 6.4.3 Continuous and intermittent operation Primary air register in position 1 and draught shutter closed. Use this brightness only temporarily, at night for example. Global warming is a concern for preoccupies us all and, with respect for the environment in mind, we advise “intermittent” 6.5 –...
-
Page 17: Maintenance
6.7.2 Cleaning the window 6.6 – Controls (depending on version of product) Accessories are at your disposal – use them to avoid getting - Wait until the appliance is cool or cold before carrying out the operation. burnt! - Protect the flooring under the door to prevent dirtying it. - Clean the glass with a damp cloth. -
Page 18: Safety Rules
Following a long period on non-use, check that flues are unobstructed (insect nests for example) before relighting. 7.3 – After-sales service We recommend that you only use replacement parts supplied by Cheminées de Chazelles Instructions for installation and use. Reproduction prohibited. July2010 version 2.0 TAM... - Page 19 Articles 1641 and following of French Civil Law. appliances for which Cheminées de Chazelles is not responsible. Consequently, Cheminées de Chazelles cannot be held responsible for 8.3 –...
-
Page 20: Guarantee Certificate
Guarantee Certificate VENDOR: document to be returned within the month following The purchaser designated hereunder acknowledges purchase at the sales outlet for the appliance his/her awareness of the various informational documents on use and maintenance to ensure proper operation of the appliance Reference:…………………………………………………………………...
